2.4 Mechanical Considerations
2.4.1 Form Factor
The board is designed to fit into an ATX-form-factor chassis. Figure 14 illustrates the
mechanical form factor for the board. Dimensions are given in inches [millimeters].
The outer dimensions are 9.60 inches by 9.60 inches [243.84 millimeters by
243.84 millimeters]. Location of the I/O connectors and mounting holes are in
compliance with the ATX specification.

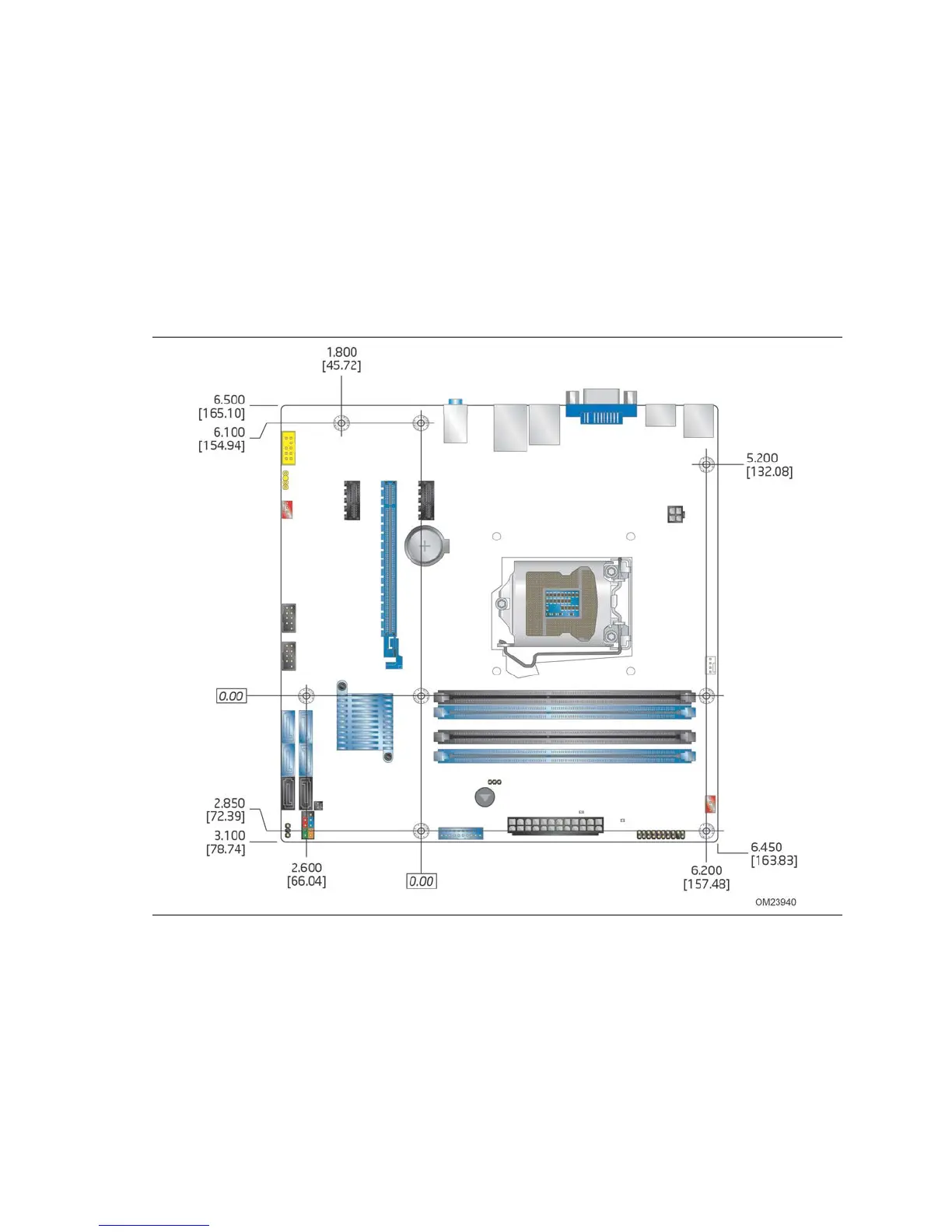

Figure 14. Board Dimensions

Intel DB85FL Specifications

General

Form Factor	Micro ATX
Chipset	Intel B85
Socket	LGA 1150
Maximum Memory	32 GB
Memory Type	DDR3
PCI Express x16	1
PCI Express x1	2
PCI Slots	1
SATA Ports	4 x SATA 6Gb/s, 2 x SATA 3Gb/s
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4
Memory Standard	DDR3 1600/1333 MHz
USB Ports	4 x USB 3.0, 8 x USB 2.0
Video Outputs	HDMI, DVI-D, VGA
LAN	Intel I217V
Audio	Realtek ALC892
