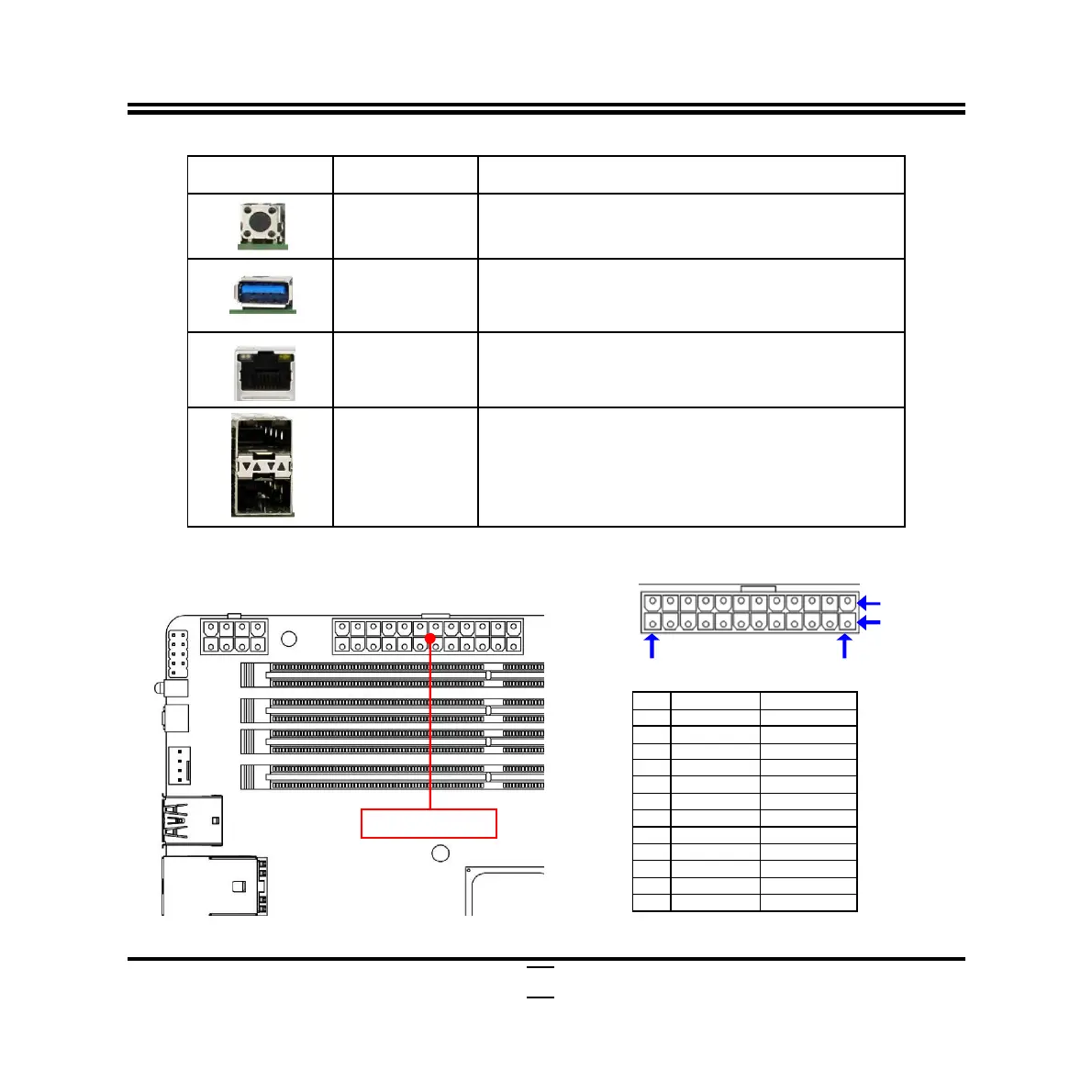

Icon Name Function
Reset Button
Press to
reset
the system.
USB 3.0 Port
To connect USB ke
yboard, mouse or other
devices compatible with USB specification. USB
3.0 ports supports up to 5Gbps data transfer rate.
RJ-
45 LAN Port
This connector is standard RJ-45 LAN jack
for
Network connection.
SFP+ Port
Native SFI interface for 10GbE SR/L
R/DAC
SFP+ modules
ATXPWR (24-pin block): Main Power Connector
PIN
ROW1 ROW2
1 +3.3V +3.3V
2 +3.3V -12V
3 GND GND
4 +5V Soft Power on
5 GND GND
6 +5V GND
7 GND GND
8 Power OK NC
9 +5V Stand by +5V
10 +12V +5V
11 +12V +5V
12 +3.3V GND
Pin1 Pin12
Row1
Row
2
ATXPWR
