JP4 (4-pin): COM2 Header Pin-9 Function Select
JP4 → COM2 Pin-9
6 4 2
3 1 5
2-4 Closed:
RI=RS232;
3-4 Closed:
RI=5V;
4-6 Closed:
RI=12V.
1
3
5
2
4 6
1
3
5
2
4 6
2-2 Connectors and Headers
2-2-1 Connectors

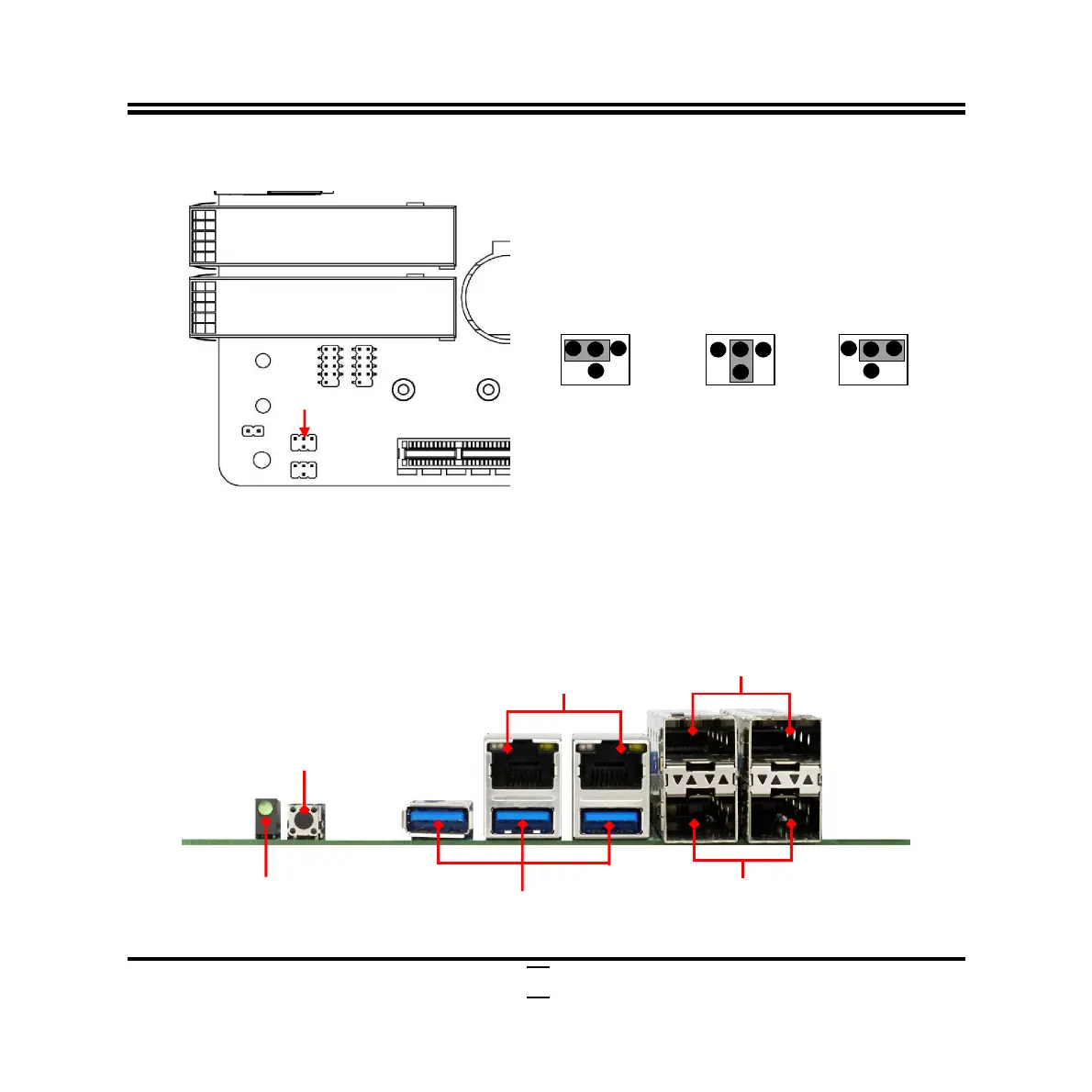

Rear IO Panel Diagram:
JP4
USB 3.0 Ports
RJ-45 LAN Ports
SFP+ Ports
SFP+ Ports
Reset Switch
Power LED
