15

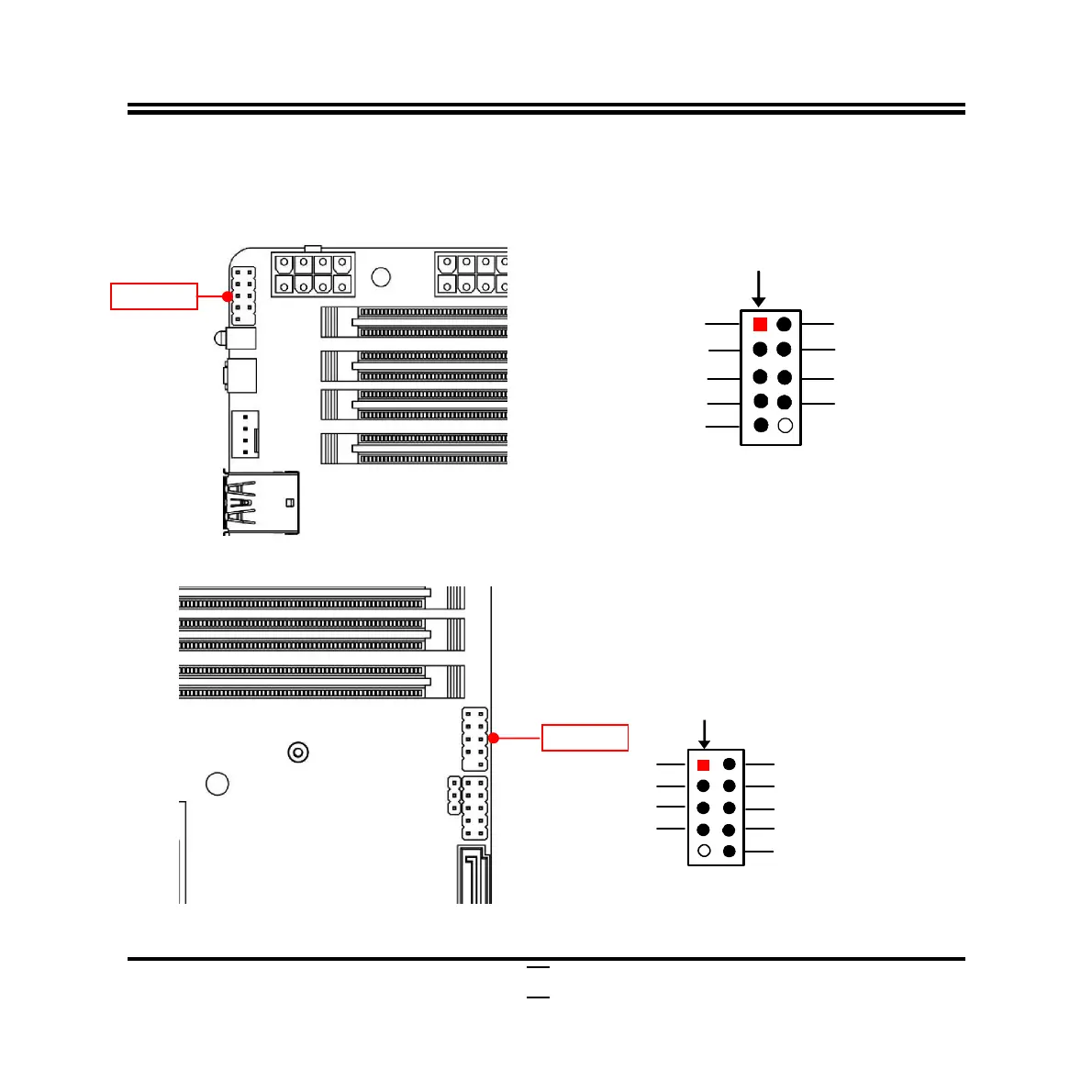

2-2-2 Headers
JW_FP (9-pin): Front Panel Header
GND
RSTSW
Pin 1
2
HDDLED+
HDDLED-
VCC
PWRLED+
PWRLED-
PWRBTN
GND
FP_USB (9-pin): USB 2.0 Port Header
Pin 1
2
VCC
-
DATA
+DATA
VCC
-DATA
+DATA
NC
GND
GND
JW_FP
FP_USB
