Intel DH55TC User Manual

Technical Reference
49
2.3 Jumper Block
CAUTION
Do not move the jumper with the power on. Always turn off the power and unplug the
power cord from the computer before changing a jumper setting. Otherwise, the
board could be damaged.
Figure 14 shows the location of the jumper block. The 3-pin jumper block determines
the BIOS Setup program’s mode. Table 26 describes the jumper settings for the three
modes: normal, configure, and recovery.

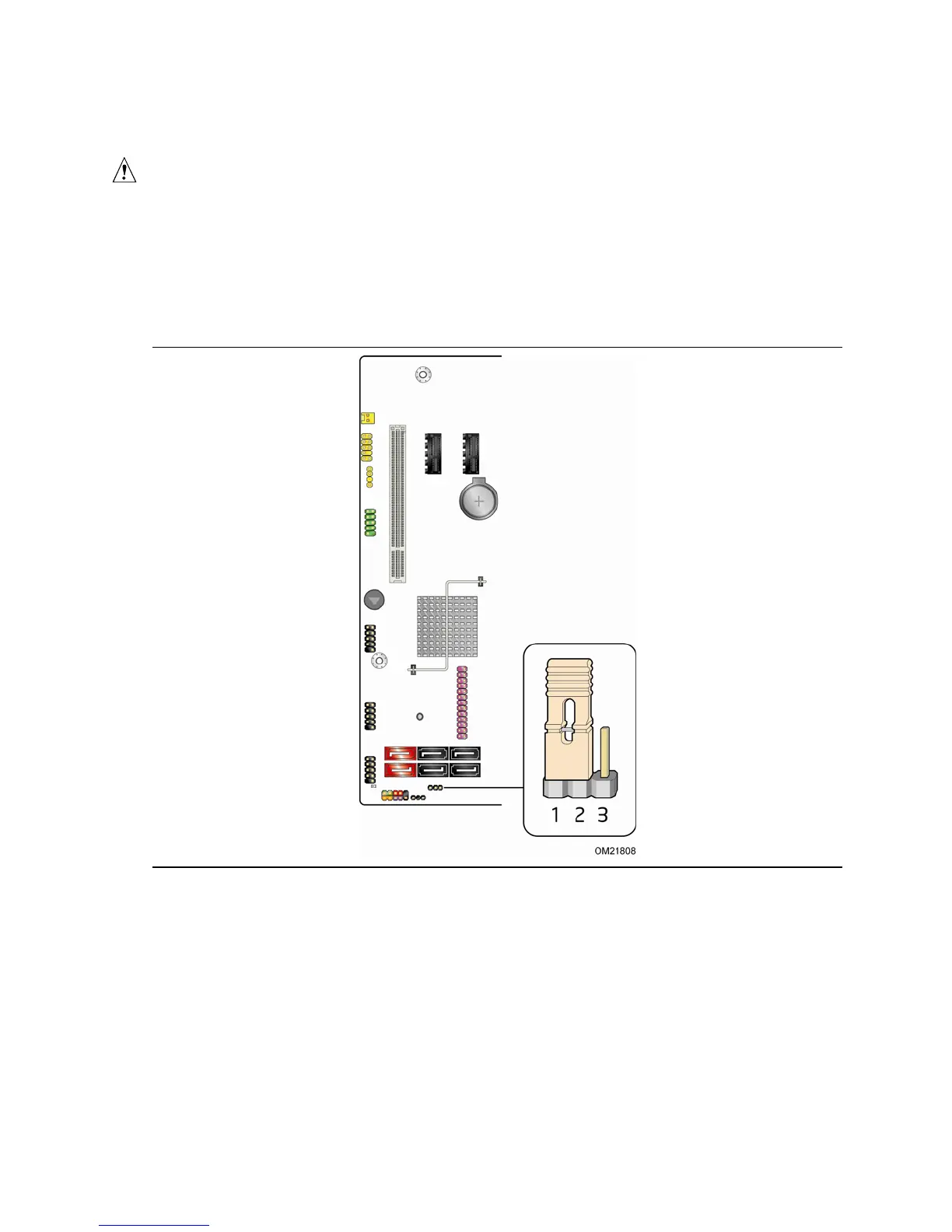

Figure 14. Location of the Jumper Block

Intel DH55TC Specifications

Add-in Card Connectors

PCI Express 2.0 x16 transfer speed	8 GB/s
PCI Express 2.0 x1 transfer speed	250 MB/s
Conventional PCI connectors count	1

Front Panel USB Headers

USB 2.0 specification compliance	Yes
+5 V DC power on USB headers	Fused
USB Header 2 Pin 10 routing	HDD LED
