2.4 Mechanical Considerations
2.4.1 Form Factor
The board is designed to fit into a MicroATX form-factor chassis. Figure 15 illustrates
the mechanical form factor for the board. Dimensions are given in inches
[millimeters]. The outer dimensions are 9.60 inches by 9.60 inches
[243.84 millimeters by 243.84 millimeters]. Location of the I/O connectors and
mounting holes are in compliance with the ATX specification.

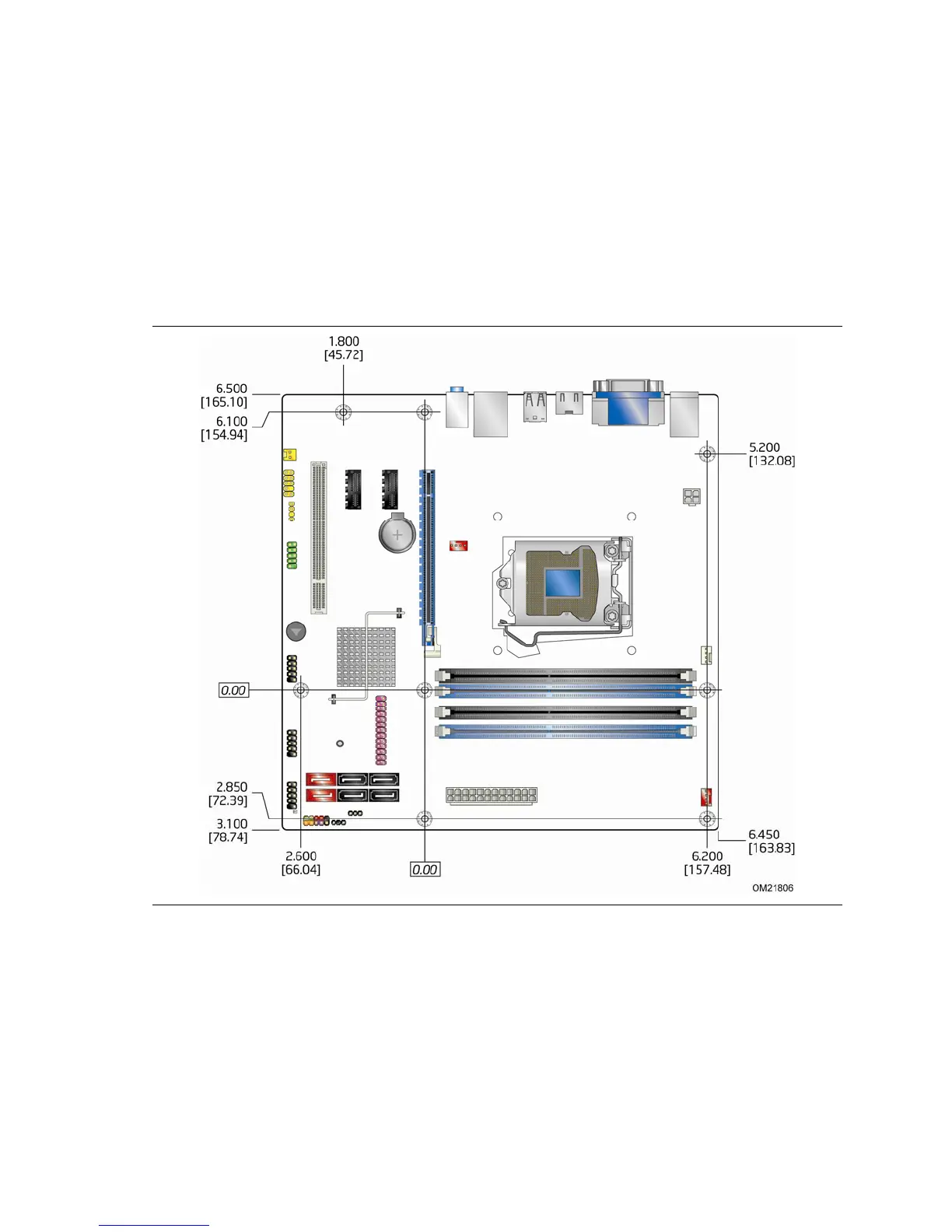

Figure 15. Board Dimensions

Intel DH55TC Specifications

Add-in Card Connectors

PCI Express 2.0 x16 transfer speed	8 GB/s
PCI Express 2.0 x1 transfer speed	250 MB/s
Conventional PCI connectors count	1

Front Panel USB Headers

USB 2.0 specification compliance	Yes
+5 V DC power on USB headers	Fused
USB Header 2 Pin 10 routing	HDD LED
