Table 3. Audio Jack Retasking Support
Audio
Jack
Micro-
phone
Head-
phones
Front
Speakers
Line In
Micro-
phone/
Side
Surround
Rear
Surround
Center/
Subwoofer
FP Green Default
FP Pink Default
BP Blue Default
BP Green Control
panel
Default
BP Pink Default
BP Black Default
BP Orange Default
LAN Subsystem
The LAN subsystem includes:
• Intel 82579V Gigabit (10/100/1000 Mb/s) Ethernet LAN controller
• RJ-45 LAN connector with integrated status LEDs
LAN software and drivers are available at http://downloadcenter.intel.com/
.
Two LEDs are built into the RJ-45 LAN connector located on the back panel (see
Figure 2). These LEDs indicate the status of the LAN as shown in Table 4.

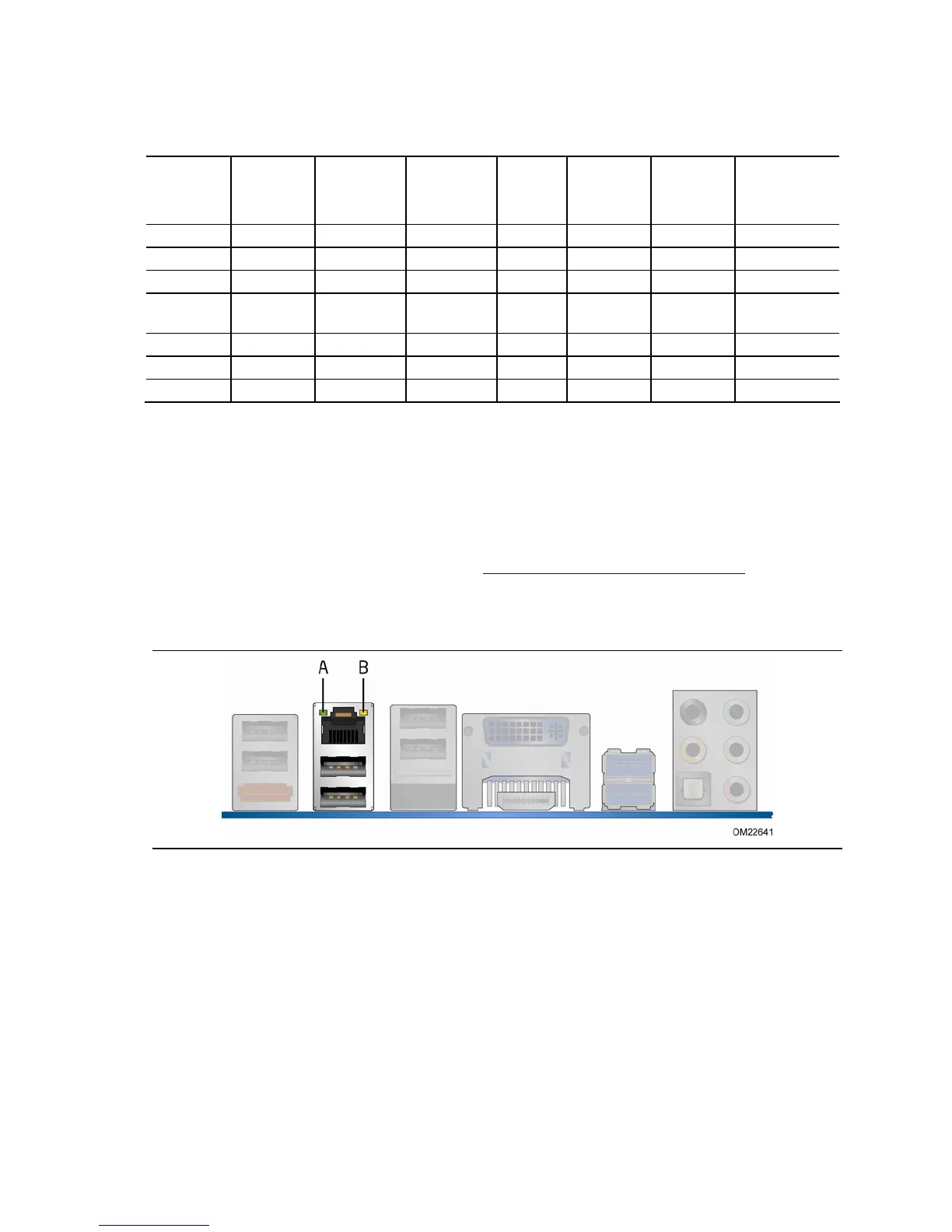

Figure 2. LAN Connector LEDs

Intel DH67CL Specifications

General

Form Factor	ATX
Chipset	Intel H67
Socket	LGA 1155
Memory Slots	4
Max Memory	32 GB
Memory Type	DDR3
PCI Express x16	1
PCIe 2.0 x1 Slots	2
PCI Slots	2
SATA 3Gb/s	3
SATA 6Gb/s	2
USB 3.0 Ports	2
LAN	Gigabit Ethernet
Video Outputs	HDMI, DVI
Integrated Graphics	Yes
