Intel Desktop Board DH67CL Product Guide
36
Installing and Removing System Memory
Guidelines for Dual Channel Memory Configuration
Desktop board DH67CL has four 240-pin DDR3 DIMM sockets arranged in two
channels (A and B).
Two or Four DIMMs
Install a matched pair of DIMMs equal in speed and size (see Figure 12) in the blue
socket of channel A (DIMM 1) and channel B (DIMM 2).

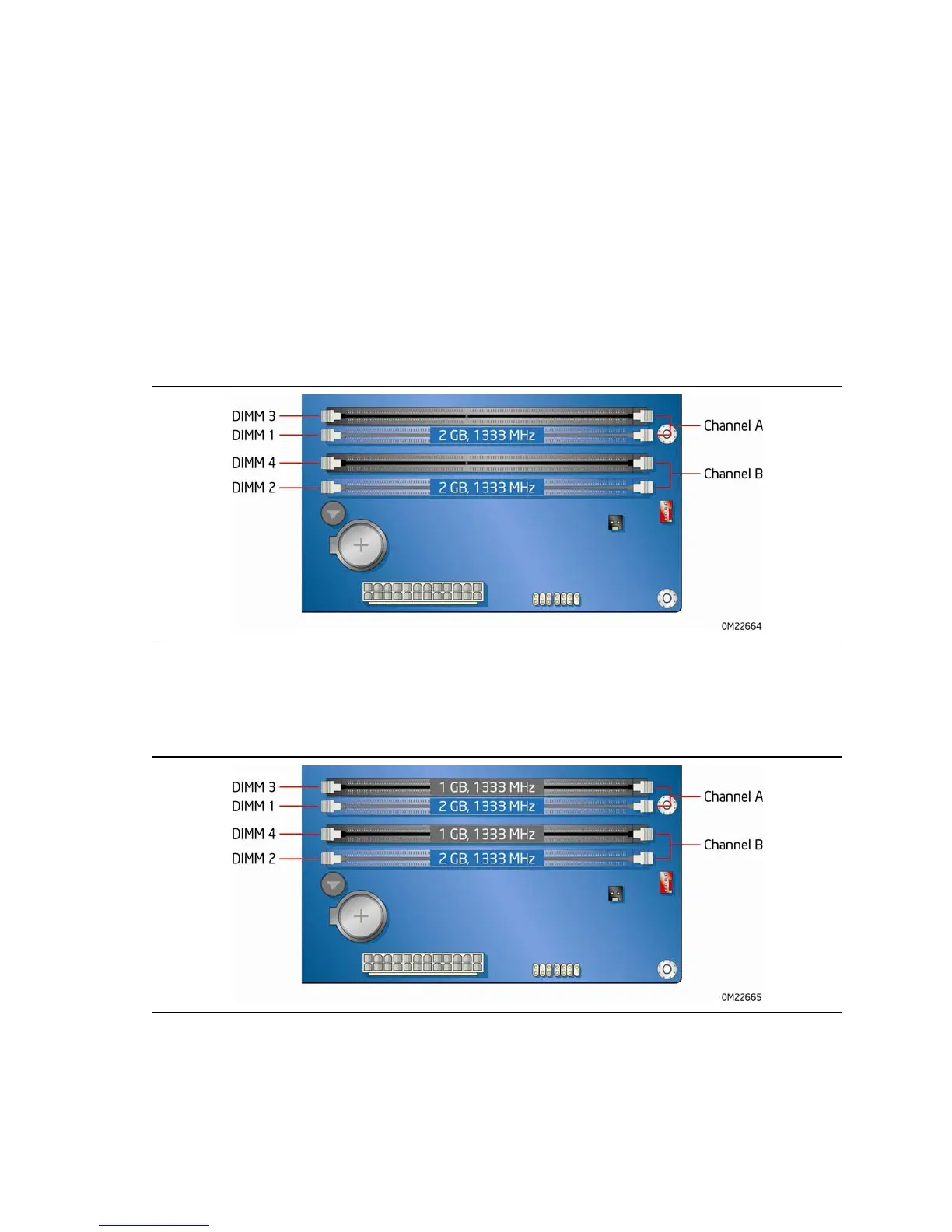

Figure 12. Example Dual Channel Memory Configuration with Two DIMMs
If additional memory is to be used, install another matched pair of DIMMs (see
Figure 13) in the black socket of channel A (DIMM 3) and channel B (DIMM 4).
Figure 13. Example Dual Channel Memory Configuration with Four DIMMs

Intel DH67CL Specifications

General

Form Factor	ATX
Chipset	Intel H67
Socket	LGA 1155
Memory Slots	4
Max Memory	32 GB
Memory Type	DDR3
PCI Express x16	1
PCIe 2.0 x1 Slots	2
PCI Slots	2
SATA 3Gb/s	3
SATA 6Gb/s	2
USB 3.0 Ports	2
LAN	Gigabit Ethernet
Video Outputs	HDMI, DVI
Integrated Graphics	Yes
