Intel DH67CL User Manual

Installing and Replacing Desktop Board Components
33

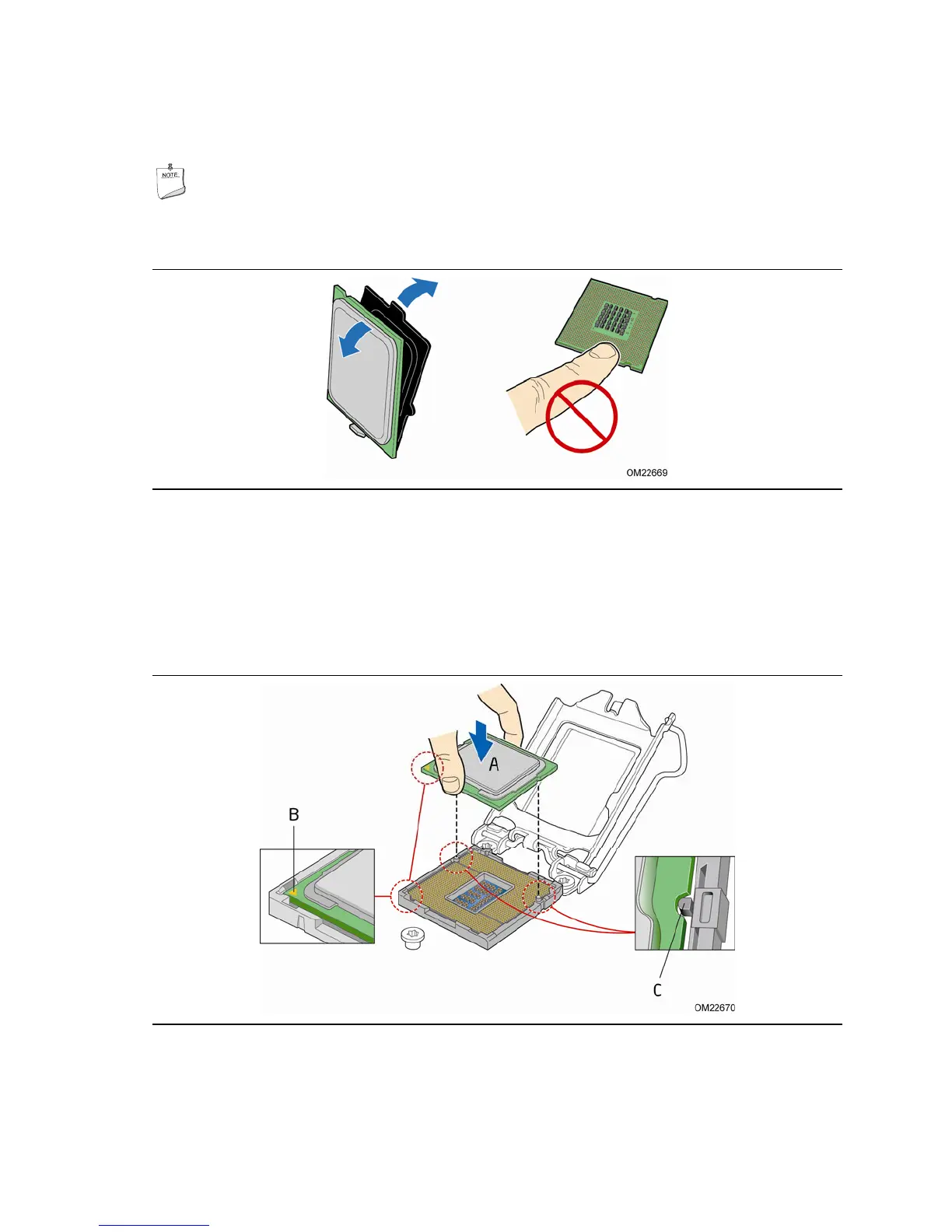

4. Remove the processor from its protective cover. Hold the processor only at the
edges, being careful not to touch the bottom of the processor (see Figure 8).
NOTE
Do not discard the processor cover. Always replace the processor cover if you
remove the processor from the socket.
Figure 8. Remove the Processor from the Protective Cover
5. Hold the processor with your thumb and index finger oriented as shown in Figure 9
to align your fingers with the socket finger cutouts. Make sure that the processor
Pin 1 indicator (gold triangle) is aligned with the Pin 1 chamfer on the socket
(Figure 9, B) and that the notches on the processor align with the posts on the
socket (Figure 9, C). Lower the processor straight down without tilting or sliding it
in the socket (Figure 9, A).
Figure 9. Install the Processor

Intel DH67CL Specifications

General

Form Factor	ATX
Chipset	Intel H67
Socket	LGA 1155
Memory Slots	4
Max Memory	32 GB
Memory Type	DDR3
PCI Express x16	1
PCIe 2.0 x1 Slots	2
PCI Slots	2
SATA 3Gb/s	3
SATA 6Gb/s	2
USB 3.0 Ports	2
LAN	Gigabit Ethernet
Video Outputs	HDMI, DVI
Integrated Graphics	Yes
