Intel Desktop Board DH67CL Product Guide
32
3.

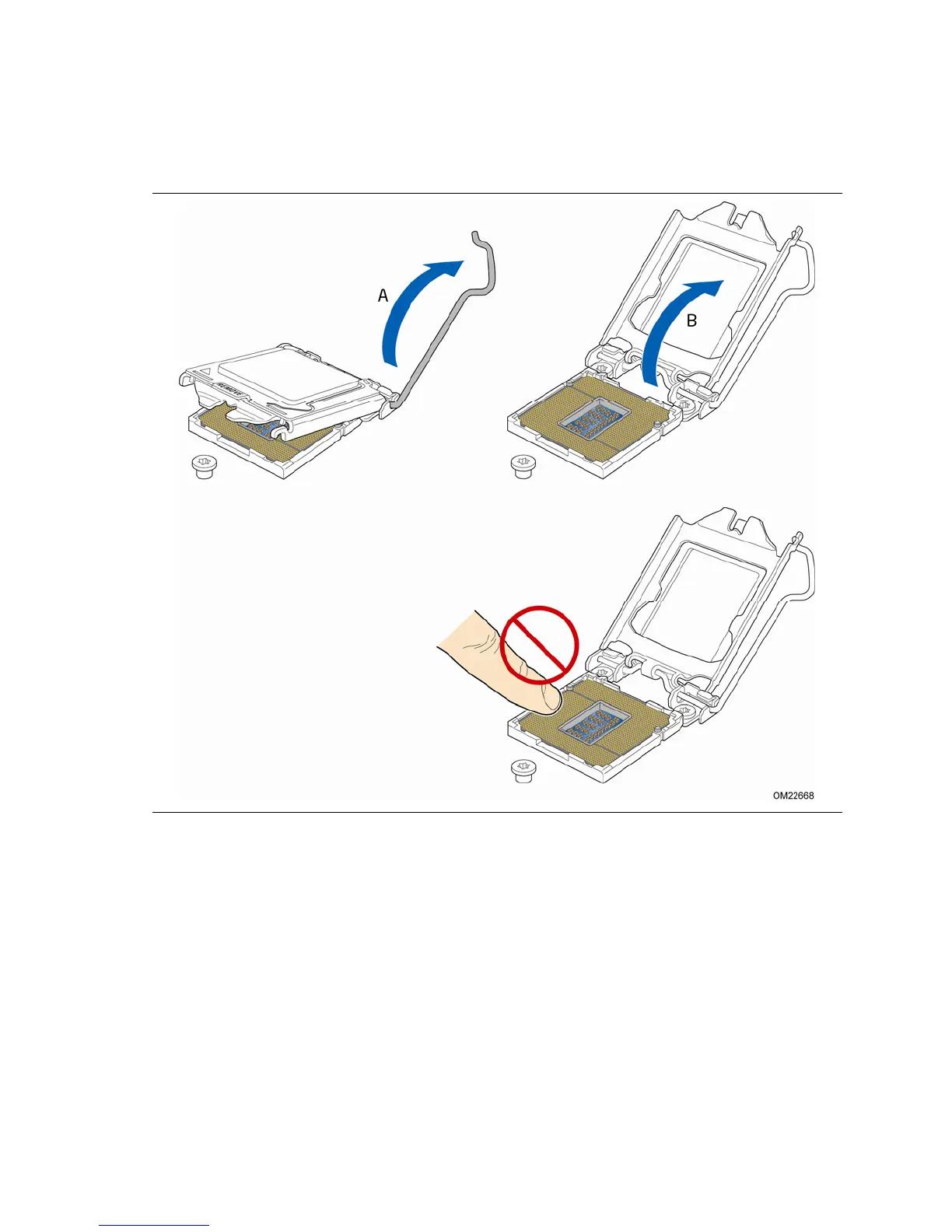

Rotate t
he socket lever to lift the load pl
ate away from the socket (
Figure 7, A).
Make sure that th
e load plate is in the fully open
position (
Figure 7, B) while being
careful not to damage adjacent co
mponen
ts. Do no
t touch the socket contacts.
Figure 7. Lift the Lo
ad Plate
31
33
Table of Contents
Revision History
2
Intended Audience
3
Use Only for Intended Applications
3
Table of Contents
5
Desktop Board Features
9
Supported Operating Systems
11
Desktop Board Components
12
Intel Desktop Board DH67CL Components
12
Processor
14
Intel H67 Express Chipset
15
Main Memory
15
Graphics Subsystem
16
Integrated Graphics
16
Intel ® HD Graphics
16
High-Definition Multimedia Interface* (HDMI*)
16
Digital Visual Interface (DVI-I)
16
VGA Displays
17
PCI Express* X16 Graphics
17
Audio Subsystem
17
LAN Subsystem
18
LAN Connector Leds
18
USB Support
19
SATA Support
19
Expandability
19
Legacy I/O
20
Bios
20
SATA Auto Configuration
20
PCI*/PCI Express Auto Configuration
20
Security Passwords
21
Hardware Management
21
Hardware Monitoring and Fan Speed Control
21
Fan Monitoring
21
Chassis Intrusion
22
Power Management
22
Software Support
22
Acpi
22
Hardware Support
22
Power Connectors
22
Fan Headers
23
LAN Wake Capabilities
23
Instantly Available PC Technology
23
+5 V Standby Power Indicator LED
24
Location of the Standby Power Indicator
24
Wake from USB
25
PCI Express WAKE# Signal Wake-Up Support
25
Wake from CIR
25
Speaker
25
Real-Time Clock Subsystem
25
Installing and Replacing Desktop Board Components
27
Before You Begin
27
Installation Precautions
28
Prevent Power Supply Overload
28
Observe Safety and Regulatory Requirements
28
Installing the I/O Shield
29
Installing and Removing the Desktop Board
30
Intel Desktop Board DH67CL Mounting Screw Hole Locations
30
Installing and Removing a Processor
31
Installing a Processor
31
Unlatch the Socket Lever
31
Lift the Load Plate
32
Remove the Processor from the Protective Cover
33
Install the Processor
33
Secure the Load Plate in Place
34
Installing a Processor Fan Heat Sink
35
Connecting the Processor Fan Heat Sink Cable
35
Removing the Processor
35
Connecting the Processor Fan Heat Sink Power Cable to the Processor Fan Header
35
Installing and Removing System Memory
36
Guidelines for Dual Channel Memory Configuration
36
Two or Four Dimms
36
Example Dual Channel Memory Configuration with Two Dimms
36
Example Dual Channel Memory Configuration with Four Dimms
36
Three Dimms
37
Example Dual Channel Memory Configuration with Three Dimms
37
Installing Dimms
38
Use DDR3 Dimms
38
Installing a DIMM
39
Removing Dimms
40
Installing and Removing PCI Express X16 Graphics Cards
40
Installing a PCI Express X16 Graphics Card
40
Installing a PCI Express X16 Graphics Card
41
Removing a PCI Express X16 Graphics Card
42
Connecting SATA Drives
43
Connecting a SATA Drive
43
Connecting to the Internal Headers
44
Internal Headers
44
Front Panel Audio Header
45
Chassis Intrusion Header
45
Front Panel Audio Signal Names for Intel HD Audio
45
Front Panel Audio Header Signal Names for AC '97 Audio
45
Chassis Intrusion Header Signal Names
45
Consumer IR (CIR) Headers
46
Front Panel CIR Receiver (Input) Header Signal Names
46
Back Panel CIR Emitter (Output) Header Signal Names
46
Alternate Front Panel Power LED Header
47
Front Panel Header
47
Alternate Front Panel Power LED Header Signal Names
47
Front Panel Header Signal Names
47
Front Panel USB 2.0 Headers
48
S/PDIF Header
48
USB 2.0 Header Signal Names
48
S/PDIF Header Signal Names
48
Connecting to the Audio System
49
Back Panel Audio Connectors
49
Connecting Chassis Fan and Power Supply Cables
50
Connecting a Chassis Fan
50
Location of the Chassis Fan Header
50
Connecting Power Supply Cables
51
Setting the BIOS Configuration Jumper
52
Location of the BIOS Configuration Jumper Block
52
Clearing Passwords
53
Jumper Settings for the BIOS Setup Program Modes
53
Replacing the Battery
54
Removing the Battery
59
Updating the BIOS
61
Updating the BIOS with the Intel Express BIOS Update Utility
61
Updating the BIOS Using the F7 Function Key
62
Updating the BIOS with the Intel Flash Memory Update Utility or the ISO Image BIOS Update File
62
Obtaining the BIOS Update File
62
Updating the BIOS with the Intel Flash Memory Update Utility
63
Updating the BIOS with the ISO Image BIOS Update File
63
Recovering the BIOS
64
A Error Messages and Indicators
65
BIOS Error Codes
65
BIOS Beep Codes
65
BIOS Error Messages
66
Front-Panel Power LED Blink Codes
66
B Regulatory Compliance
67
Safety Standards
67
Battery Caution
67
European Union Declaration of Conformity Statement
68
Product Ecology Statements
69
Recycling Considerations
69
China Rohs
72
Intel Desktop Board DH67CL China Rohs Material Self Declaration Table
72
EMC Regulations
73
FCC Declaration of Conformity
73
Canadian Department of Communications Compliance Statement
74
Japan VCCI Statement
74
Korea Class B Statement
75
Ensure Electromagnetic Compatibility (EMC) Compliance
75
Product Certifications
76
Board-Level Certifications
76
Regulatory Compliance Marks
76
Chassis- and Component-Level Certifications
77
ENERGY STAR*, E-Standby, and Erp Compliance
77
