Product Description
13
1.1.2 Board Layout

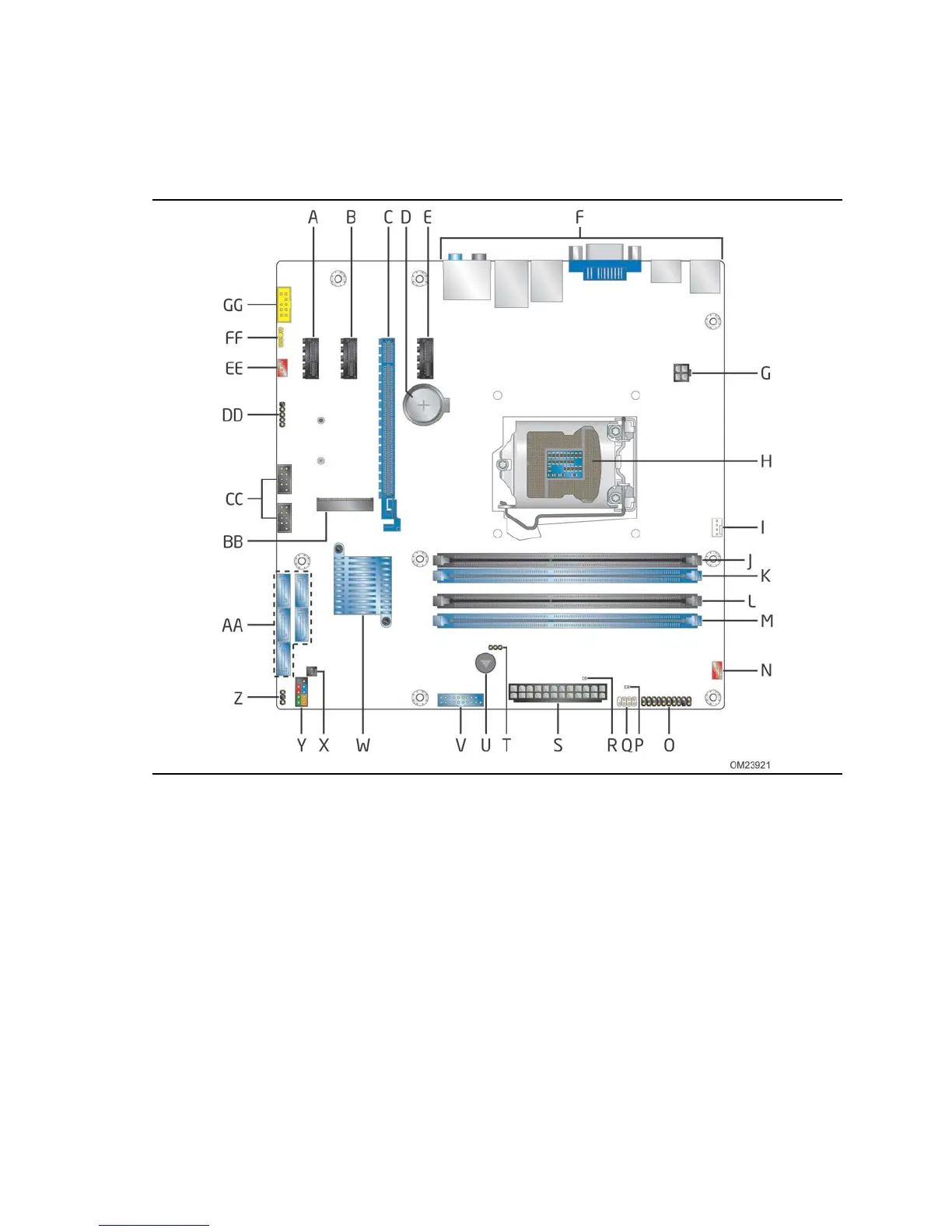

Figure 1 shows the location of the major components on Intel Desktop Board DH87RL.
Figure 1. Major Board Components
