Technical Reference
41
2.2.1 Back Panel Connectors

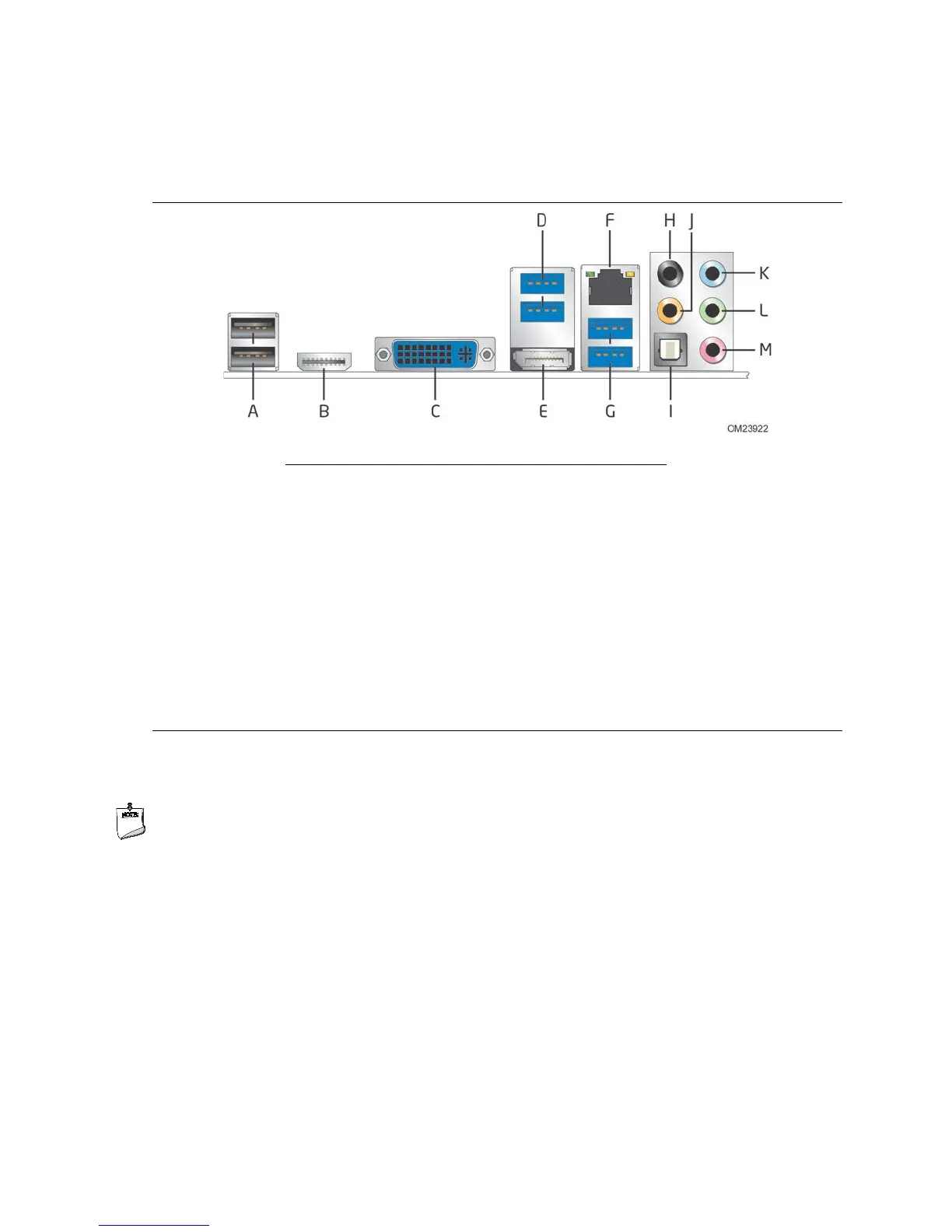

Figure 8 shows the location of the back panel connectors for the board.
Item Description
A USB 2.0 connectors
B HDMI connector
C DVI-I connector
D USB 3.0 connectors
E DisplayPort connector
F LAN port
G USB 3.0 connectors
H Rear surround
I S/PDIF out (optical)
J Center channel and LFE (subwoofer)
K Line-in
L Front speaker
M Mic-in
Figure 8. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
