Technical Reference
53
2.3 BIOS Security Jumper
CAUTION
Do not move the jumper with the power on. Always turn off the power and unplug the
power cord from the computer before changing a jumper setting. Otherwise, the
board could be damaged.
Figure 14 shows the location of the jumper. The 3-pin jumper determines the BIOS
Security program’s mode. Table 32 describes the jumper settings for the three
modes: normal, lockdown, and configuration.

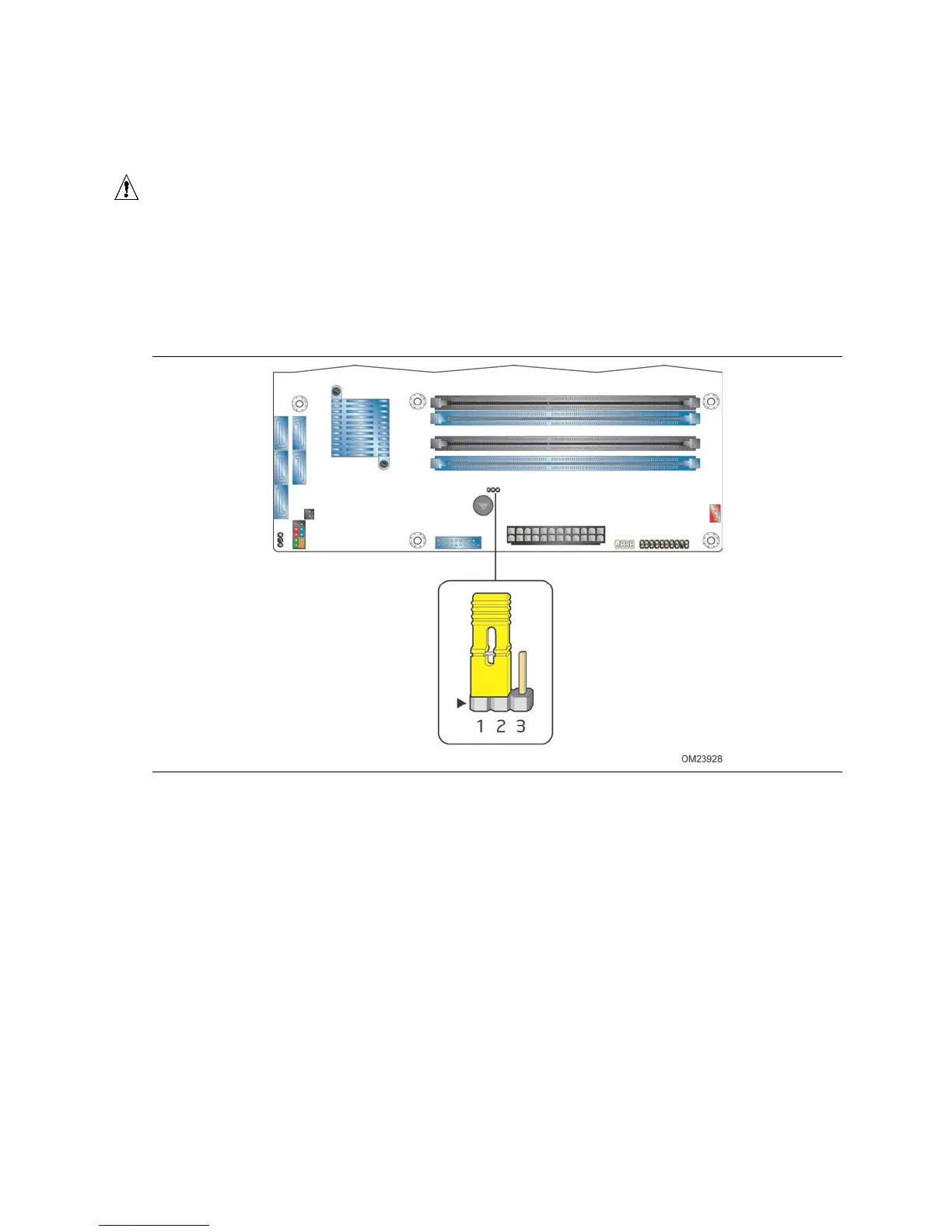

Figure 14. Location of the Jumper
