Intel Desktop Board DH87RL Technical Product Specification
32
1.10.4 Thermal Monitoring

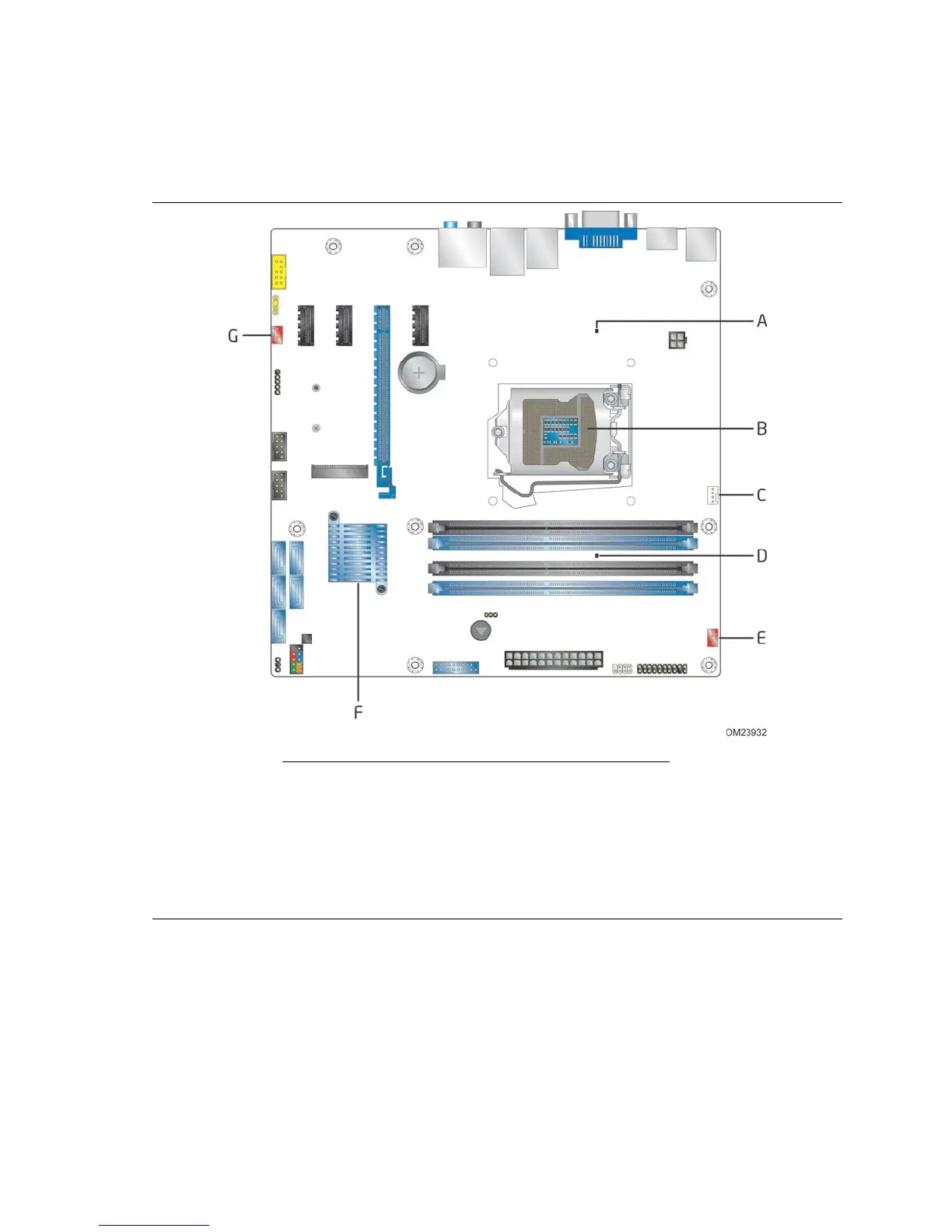

Figure 6 shows the locations of the thermal sensors and fan headers.
Item Description
A Voltage regulator thermal sensor
B Thermal diode, located on the processor die
C Processor fan header
D DIMM thermal sensor
E Front chassis fan header
F Thermal diode, located on the Intel H87 PCH
G Rear chassis fan header
Figure 6. Thermal Sensors and Fan Headers
