Technical Reference
51
2.2.2.6 Front Panel Connectors and Headers

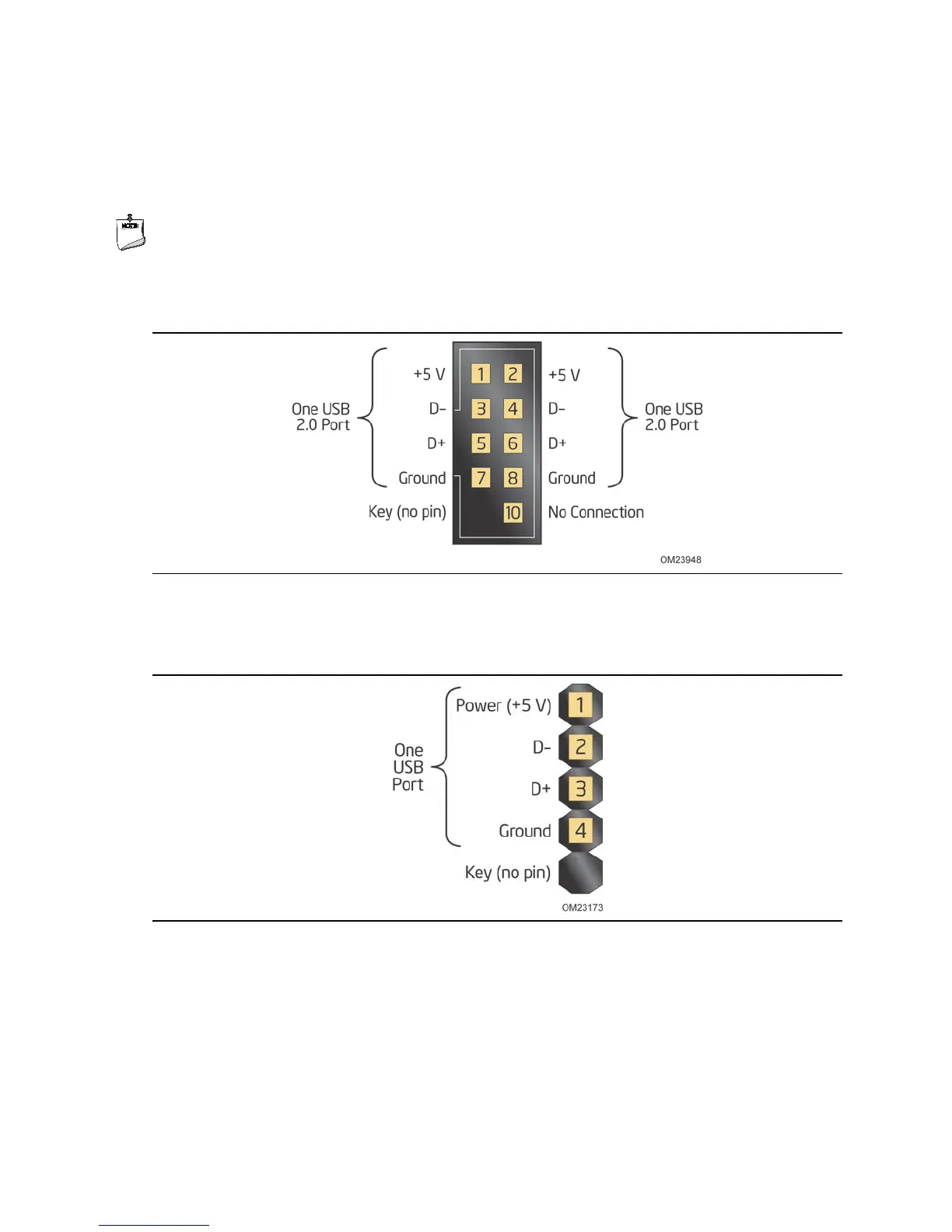

Figure 11, Figure 12, and Figure 13 are connection diagrams for the front panel USB
connectors and headers.
NOTE
• The +5 V DC power on the USB connectors is fused.
• Use only a front panel USB connector that conforms to the USB 2.0 specification for
high-speed USB devices.
Figure 11. Connection Diagram for the Front Panel Dual-Port
USB 2.0 Connectors
Figure 12. Connection Diagram for the Front Panel
USB 2.0 Single-Port Header
