Intel Desktop Board DP43BFL Product Guide
34
7.
Pressing do
wn on the load plate (
F
igure 11, A), close and engage the socket lever
(
Figure 11, B).

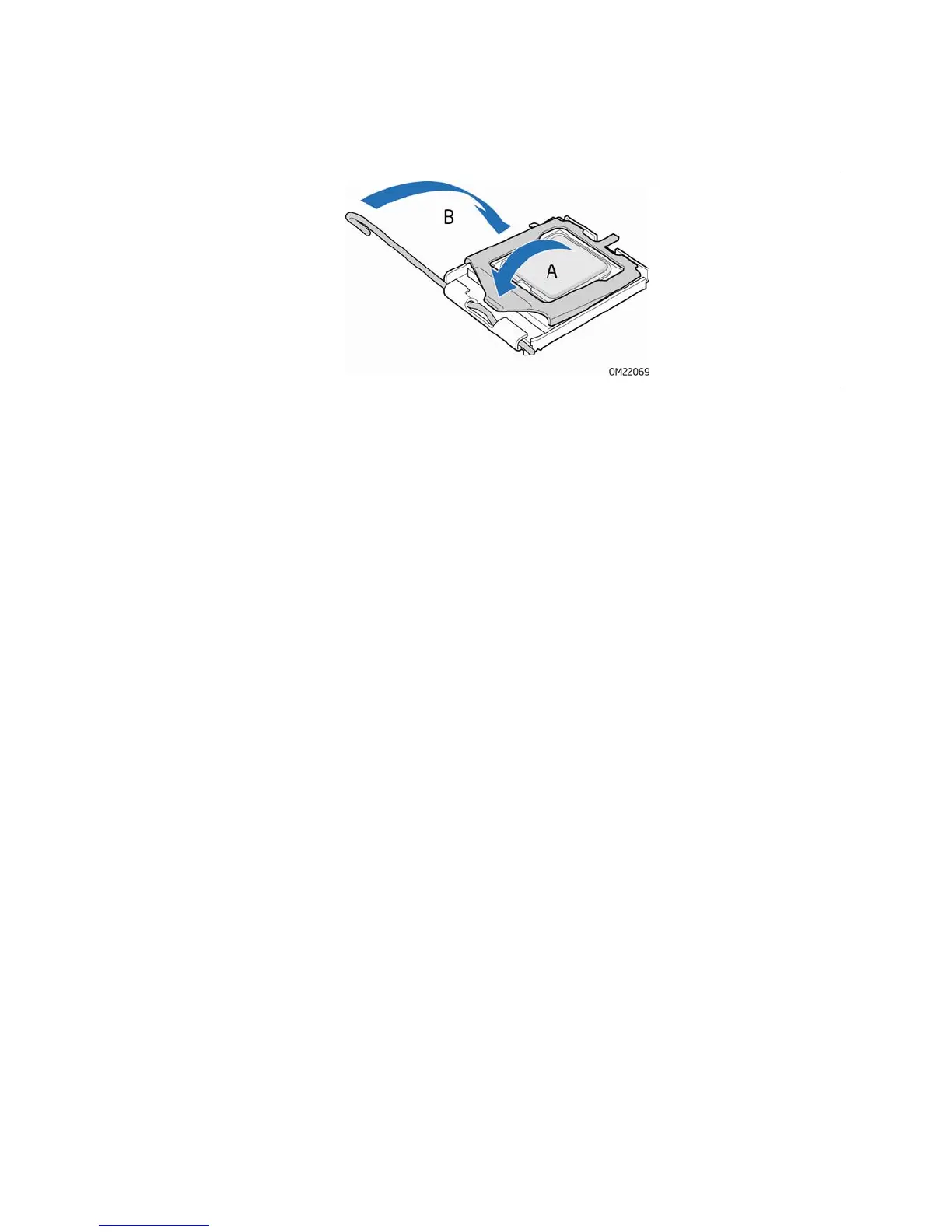

Figure 11. Close the Load Plat
e
Installing a Processor Fan Heat Sink
Intel Desktop Board DP43BFL has
mounting ho
les for a processor fan heat sink. For
instructions on how to attach the
processor
fan heat sink
to the Desktop Board, refer
to the boxed processor manual.
33
