Intel Desktop Board DP43BFL Product Guide
12
Desktop Board Components

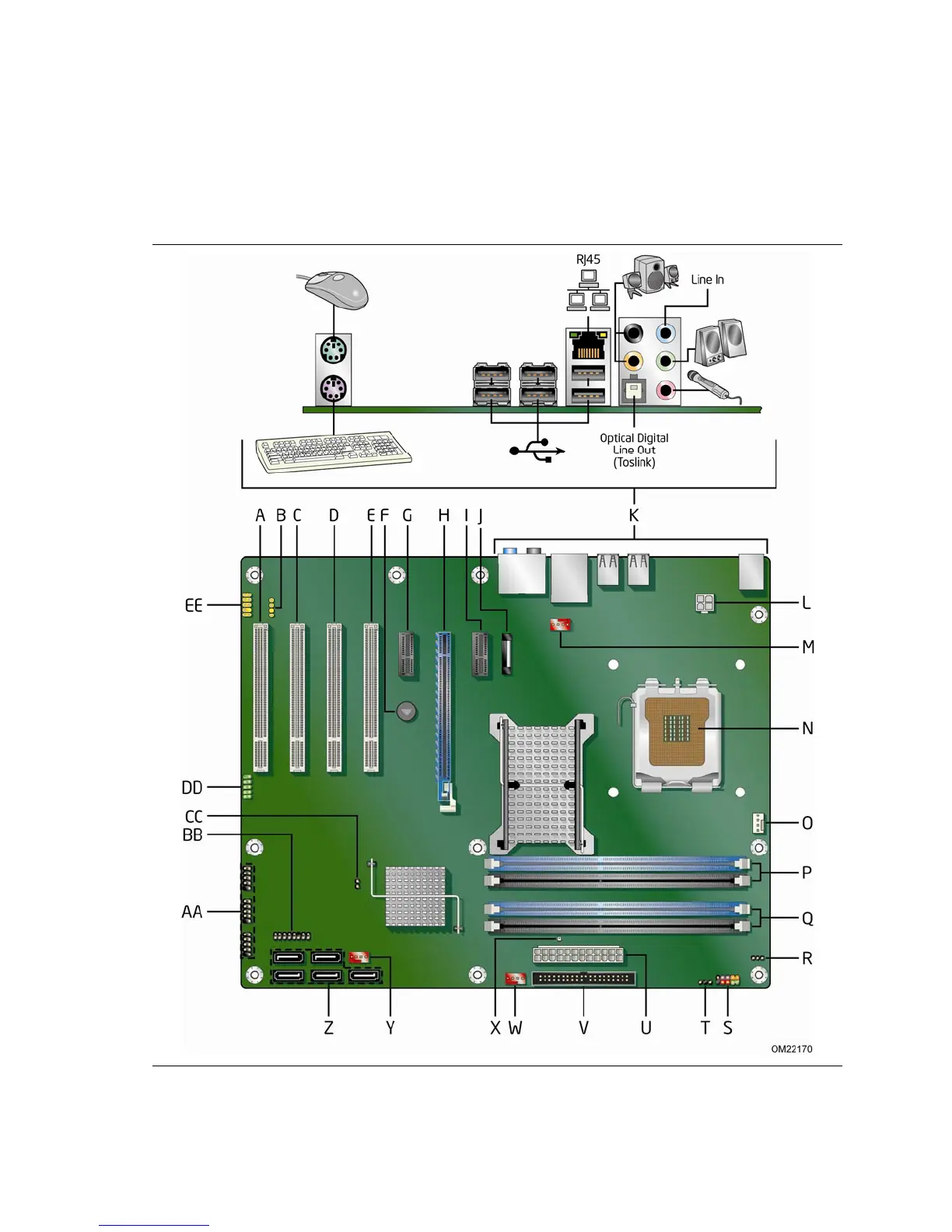

Figure 1 shows the approximate location of the major components on Intel Desktop
Board DP43BFL.
Figure 1. Intel Desktop Board DP43BFL Components
