Intel Desktop Board DP43BFL Product Guide
36
Installing and Removing Memory
Intel Desktop board DP43BFL has four 240-pin DDR3 DIMM sockets arranged as
DIMM 0 and DIMM 1 in both Channel A and Channel B.
Guidelines for Dual Channel Memory Configuration
Before installing DIMMs, read and follow these guidelines for dual channel
configuration.
Two or Four DIMMs
Install a matched pair of DIMMs equal in speed and size (see Figure 13) in DIMM 0
(blue) of channels A and B.

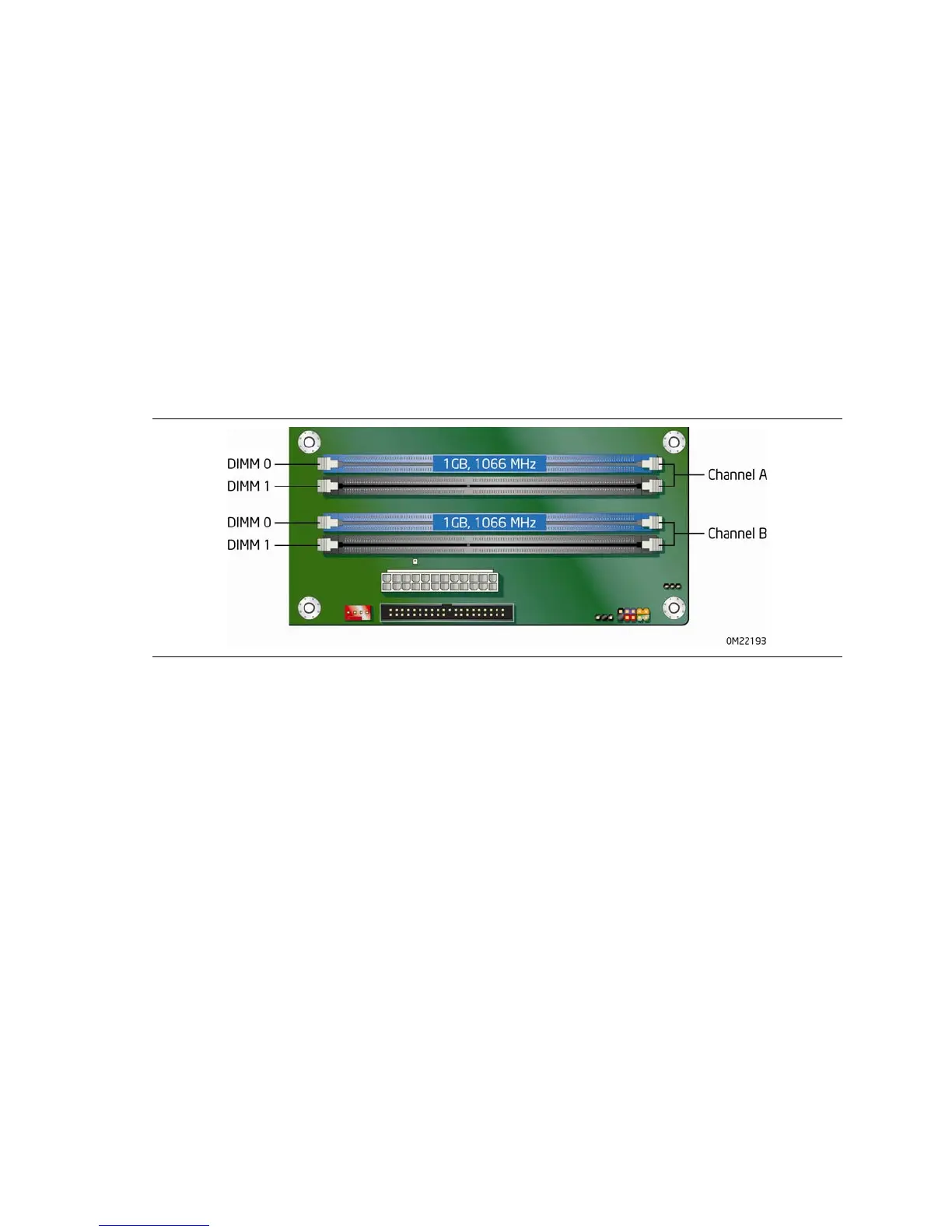

Figure 13. Dual Channel Memory Configuration with Two DIMMs
