Installing and Removing System Memory
Desktop board DP67BG has four 240-pin DDR3 DIMM sockets arranged in two
channels (A and B).
Guidelines for Dual Channel Memory Configuration
Before installing DIMMs, read and follow these guidelines for dual channel memory
configuration.
Two or Four DIMMs
Install a matched pair of DIMMs equal in speed and size (see Figure 15) in the blue
socket of channel A (DIMM 1) and channel B (DIMM 2).

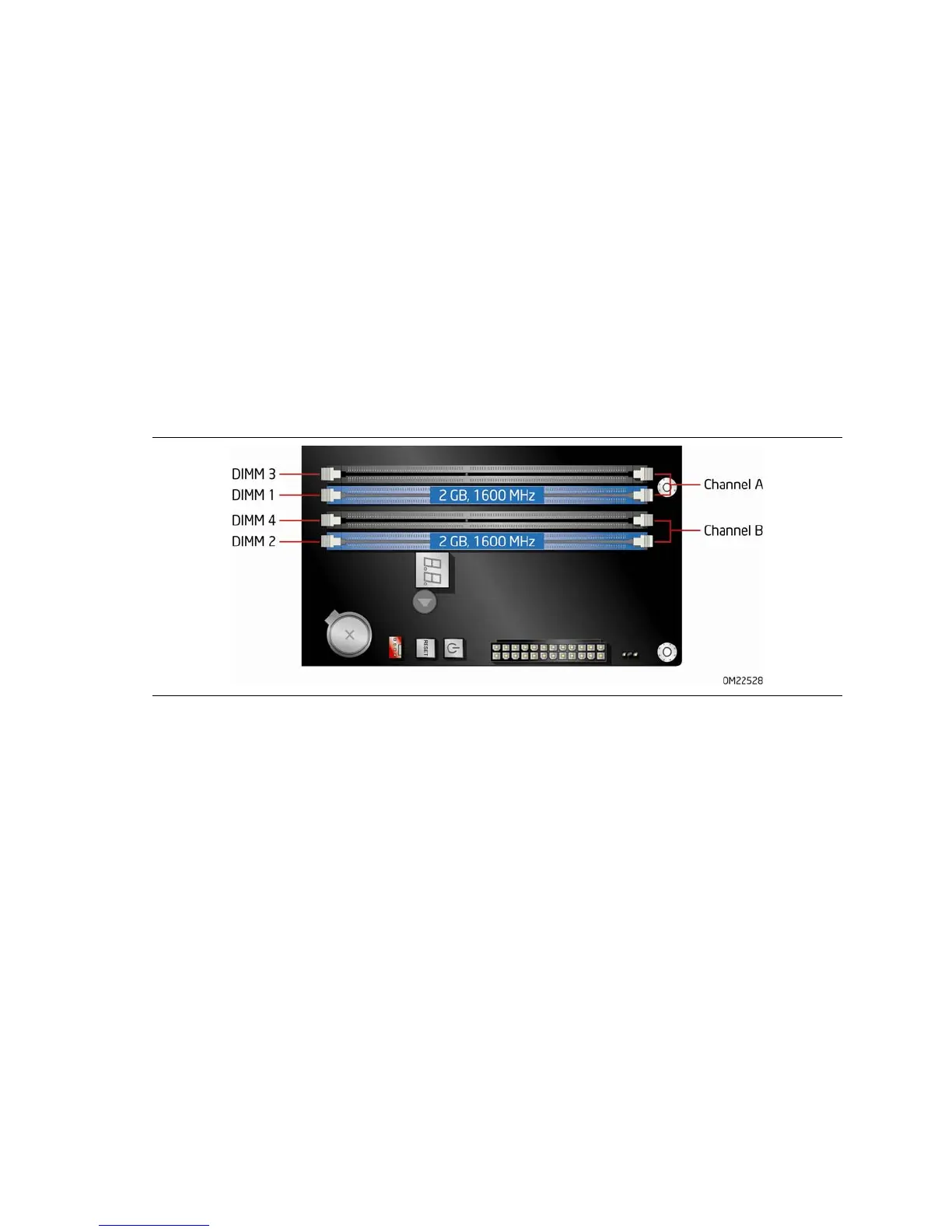

Figure 15. Example Dual Channel Memory Configuration with Two DIMMs
If additional memory is to be used, install another matched pair of DIMMs (see
Figure 16) in the black socket of channel A (DIMM 3) and channel B (DIMM 4).

Intel DP67BG Specifications

General

Form Factor	ATX
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	4
Maximum Memory	32GB
PCI Express x16	2
PCI Express x1	3
SATA 3Gb/s	4
SATA 6Gb/s	2
USB 2.0 Ports	12
USB 3.0 Ports	2
Audio Chipset	Realtek ALC892
Audio Channels	8
LAN Chipset	Intel 82579V
Max LAN Speed	10/100/1000Mbps
PS/2	1
eSATA	1
RAID Support	Yes
Chipset	Intel P67 Express
Memory Standard	DDR3 1333
S/PDIF Out	1
