Connecting to the Audio System
After installing the Realtek audio driver from the Intel
®
Express Installer DVD-ROM,
the multi-channel audio feature can be enabled. Figure 25 shows the back panel audio
connectors.
The default connector assignments are shown in the table.
Item Description
A Rear surround speakers
B S/PDIF output (optical)
C Center/subwoofer
D Line in
E Front speakers
F Mic in

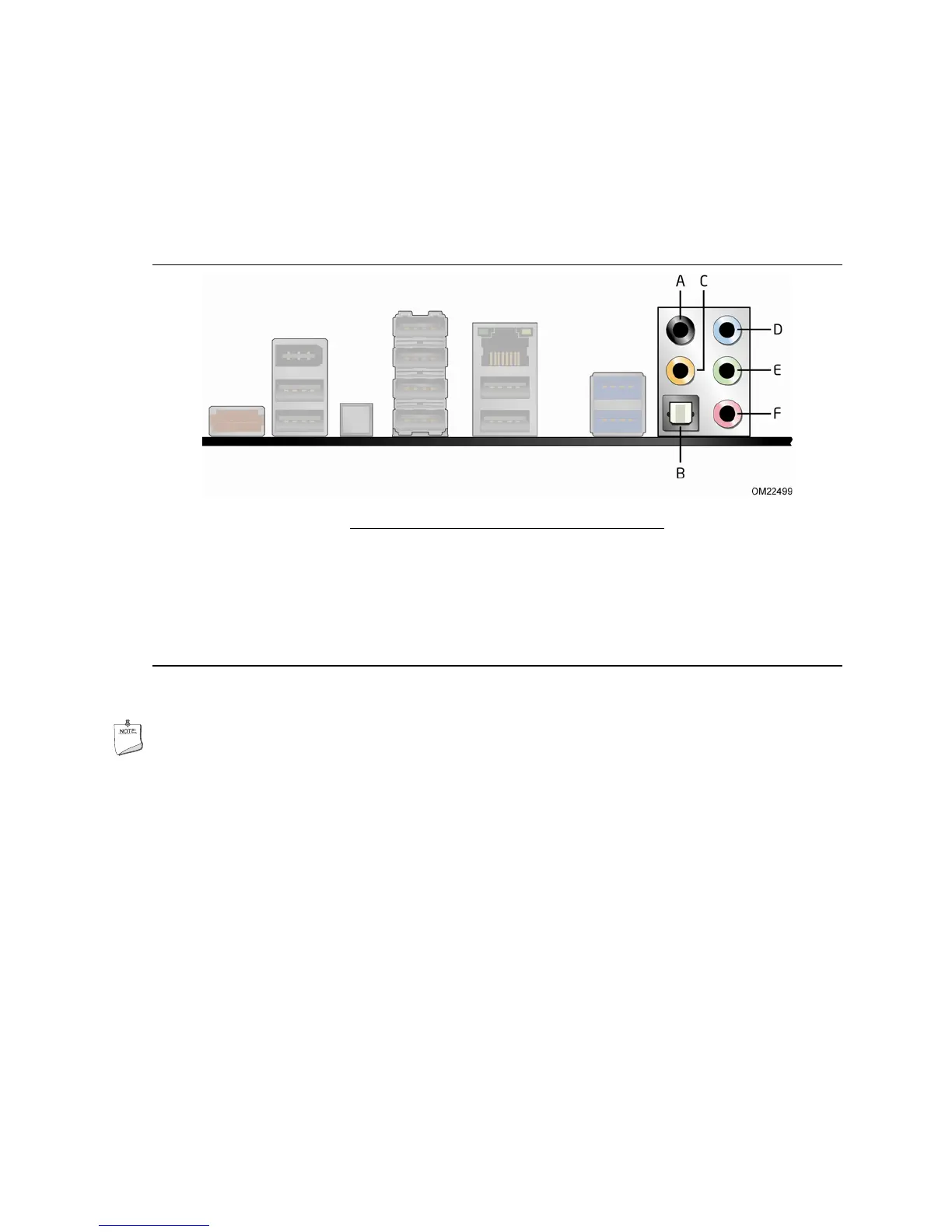

Figure 25. Back Panel Audio Connectors
NOTE
The back panel line out connector is designed to power either headphones or amplified
speakers only. Poor audio quality may occur if passive (non-amplified) speakers are
connected to this output.

Intel DP67BG Specifications

General

Form Factor	ATX
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	4
Maximum Memory	32GB
PCI Express x16	2
PCI Express x1	3
SATA 3Gb/s	4
SATA 6Gb/s	2
USB 2.0 Ports	12
USB 3.0 Ports	2
Audio Chipset	Realtek ALC892
Audio Channels	8
LAN Chipset	Intel 82579V
Max LAN Speed	10/100/1000Mbps
PS/2	1
eSATA	1
RAID Support	Yes
Chipset	Intel P67 Express
Memory Standard	DDR3 1333
S/PDIF Out	1
