Removing a PCI Express x16 Graphics Card
Follow these instructions to remove a PCI Express x16 graphics card from a connector:
1. Observe the precautions in "Before You Begin" on page 29.
2. Remove the screw
(Figure 21, A) that secures the card’s metal bracket to the
chassis back
panel.
3. Push the card ejector lever down using the tip of a pencil or similar tool
(Figure 21, B) in the notch. This will release the card from the connector (C).
4. P
u
ll the card straight up to remove it.

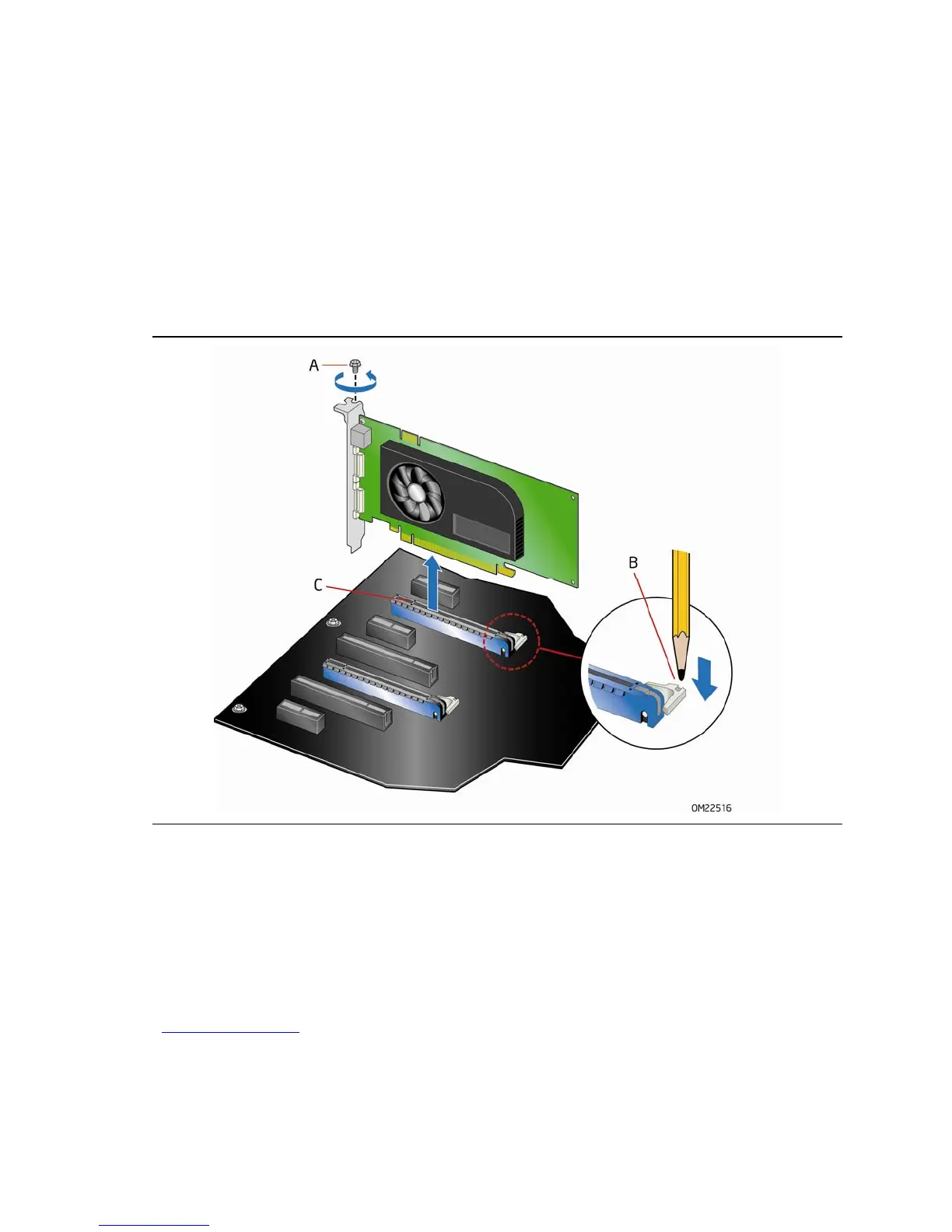

Figure 21. Removing a PCI Express x16 Graphics Card
Installing Linked PCI Express Graphics Cards
The Desktop Board supports technology that allows you to install linked PCI Express
graphics cards such as NVIDIA* SLI* (Scalable Link Interface) cards. Make sure you
use two identical SLI-ready graphics cards that are NVIDIA certified and the latest
graphics driver. You can use the connector included with the Desktop Board to
connect the two graphics cards together. Visit the NVIDIA zone website
(http://nzone.com
) for more information.

Intel DP67BG Specifications

General

Form Factor	ATX
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	4
Maximum Memory	32GB
PCI Express x16	2
PCI Express x1	3
SATA 3Gb/s	4
SATA 6Gb/s	2
USB 2.0 Ports	12
USB 3.0 Ports	2
Audio Chipset	Realtek ALC892
Audio Channels	8
LAN Chipset	Intel 82579V
Max LAN Speed	10/100/1000Mbps
PS/2	1
eSATA	1
RAID Support	Yes
Chipset	Intel P67 Express
Memory Standard	DDR3 1333
S/PDIF Out	1
