Intel DQ67OW User Manual

Product Description
11
1.1.2 Board Layout

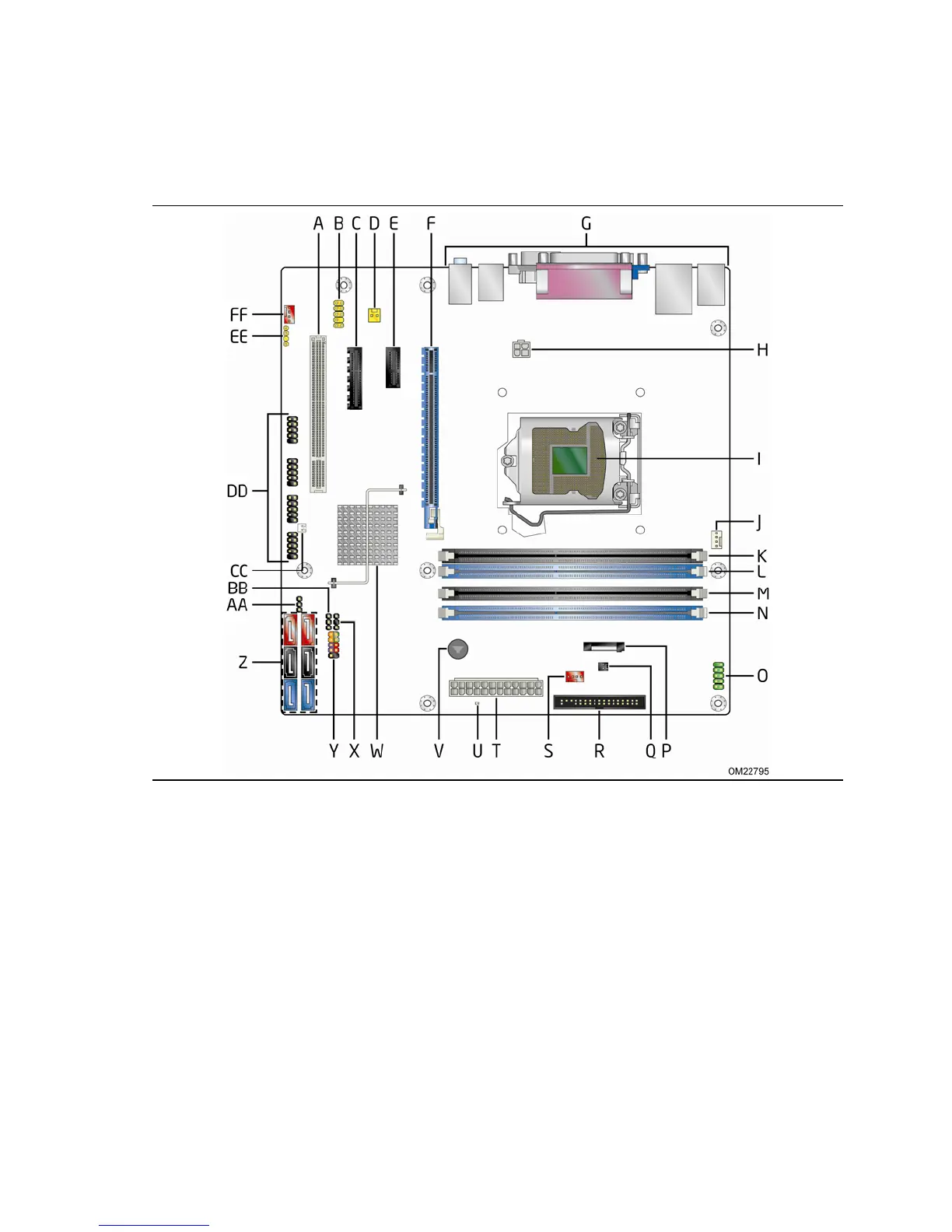

Figure 1 shows the location of the major components on Intel Desktop Board
DQ67OW.
Figure 1. Major Board Components
Table 2 lists the components identified in Figure 1.

Intel DQ67OW Specifications

General

Form Factor	Micro ATX
Chipset	Intel Q67
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	4
Max Memory	32 GB
PCI Express x16	1
PCI Express x1	2
SATA 6Gb/s	2
SATA 3Gb/s	4
Ethernet	Gigabit Ethernet
Audio	7.1 channel
USB Ports	14 (4 rear, 6 front, 4 via headers)
