Intel Desktop Board DX58OG Product Guide
26
Diagnostic/Status LEDs
The Desktop Board provides 11 LEDs that
allow you to m
onitor the board’s progress
through the BIOS POST
along with other board
activities and condi
tions (see
Figure 6).

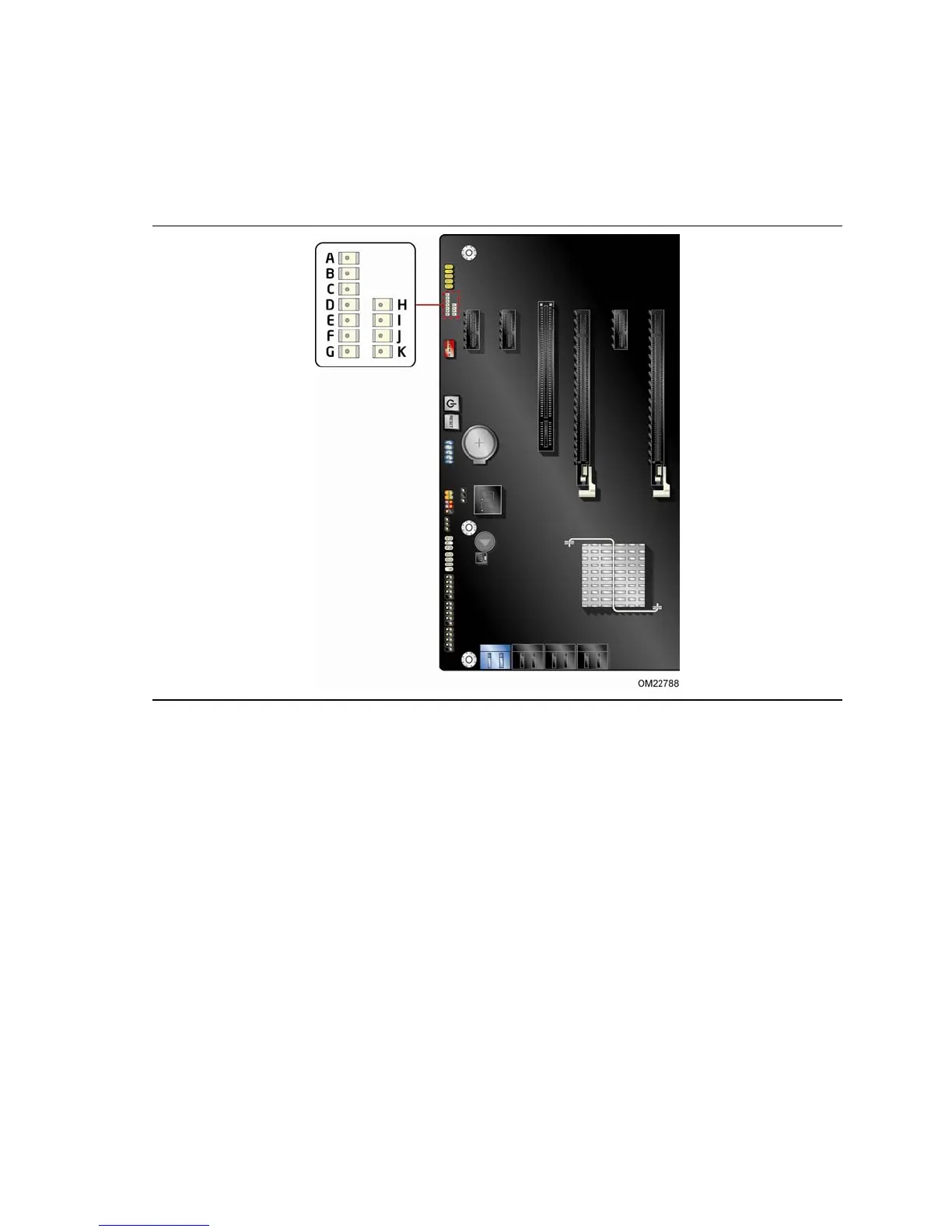

Figure 6. Location
of the Diagnostic/Status LEDs
25
