Installing and Replacing Desktop Board Components
53
Connecting Power Supply Cables
Figure 26 shows the location of the power connectors.
CAUTION
Failure to use an appropriate power supply and/or not connecting the 12 V
(Figure 26, A) power connector to the Desktop Board
may result in damage to the
board or the system may not function properly.

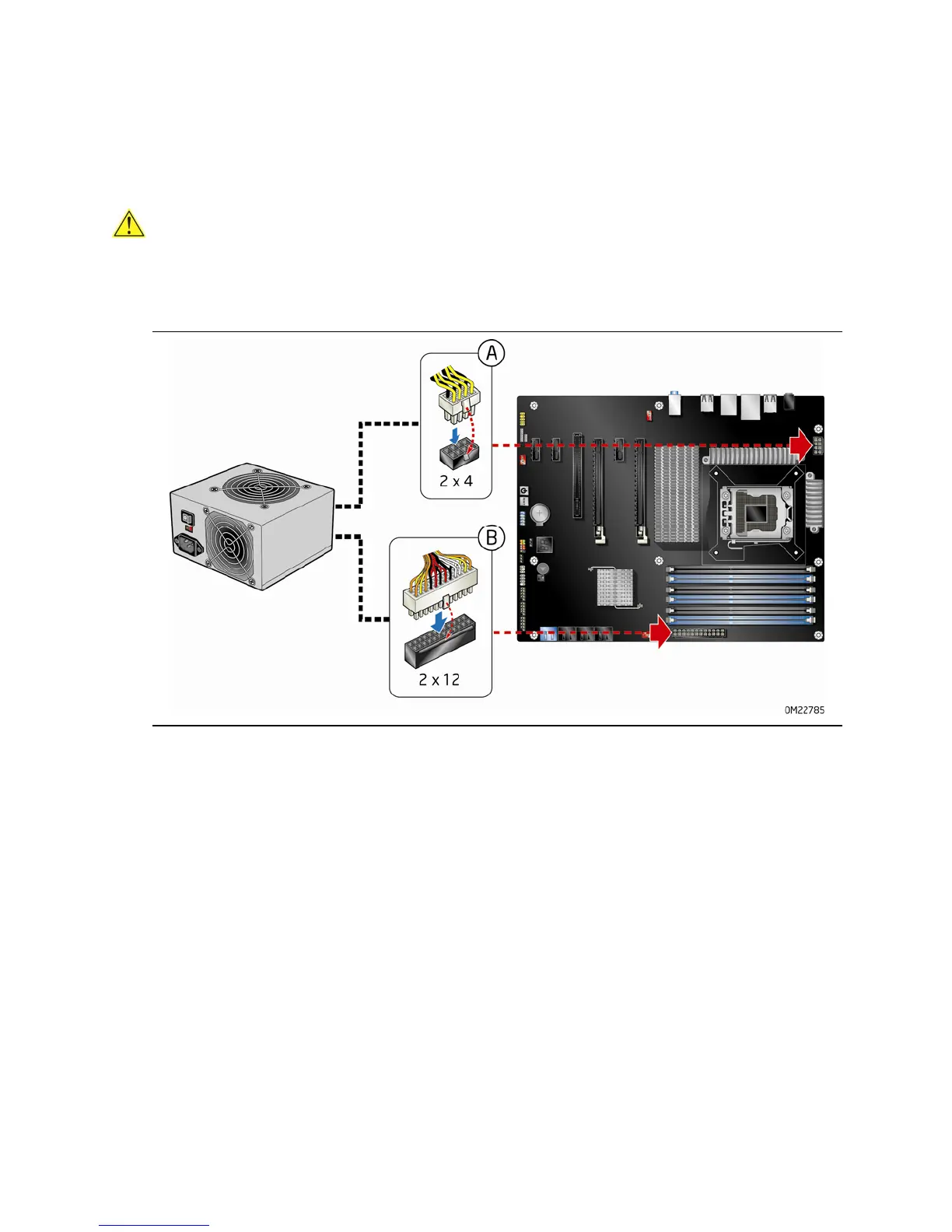

Figure 26. Connecting Power Supply Cables
1. Observe the precautions in "Before You Begin" on page 29.
2. Connect the 12 V processor core voltage power supply cable to the 2 x 4 pin
connector (Figure 26, A).
3. Con
n
ect the main power supply cable to the 2 x 12 pin connector (Figure 26, B).
