Intel Desktop Board DX58OG Product Guide
42

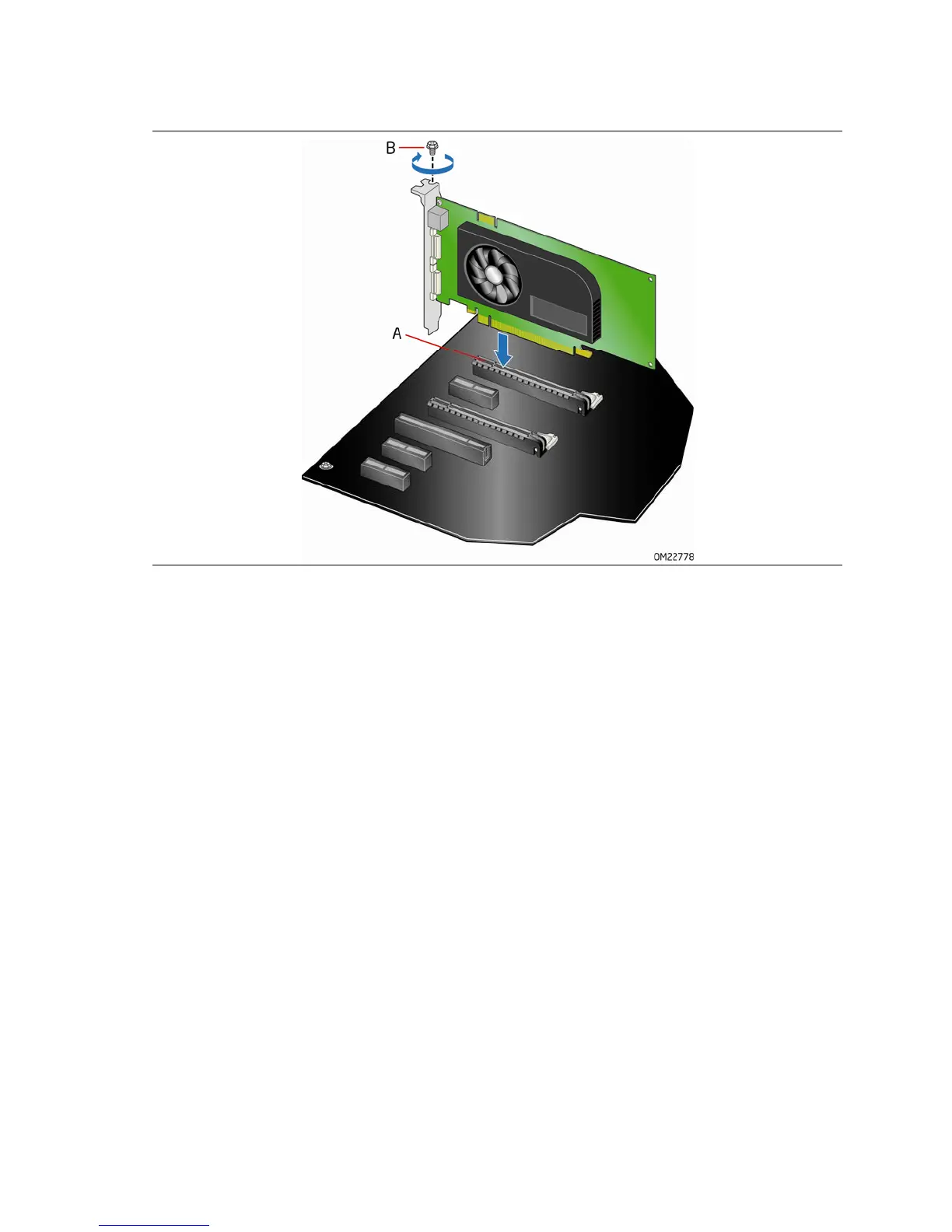

Figure 19. Installing a PCI Express x16 Card
Removing a PCI Express x16 Add-in Card
Follow these instructions to remove a PCI Express x16 card from a connector:
1. Observe the precautions in "Before You Begin" on page 29.
2. Remove the screw
(Figure 20, A) that secures the card’s metal bracket to the
chassis back
panel.
3. Push the card ejector lever down using the tip of a pencil or similar tool
(Figure 20, B) in the notch. This will release the card from the connector (C).
4. P
u
ll the card straight up.
