Intel Desktop Board DZ68BC Product Guide
48
Connecting SATA Cables
SATA cables support the Serial ATA protocol. Each cable can be used to connect one
internal SATA drive to the Desktop Board. For correct cable function:
1. Observe the precautions in “Before You Begin” on page 31.
2. Attach
one end of the SATA cable to one of the SATA connectors on the board
(Figure 23, A) and attach the other end of the
cable to the SATA drive
(Figure 23, B).

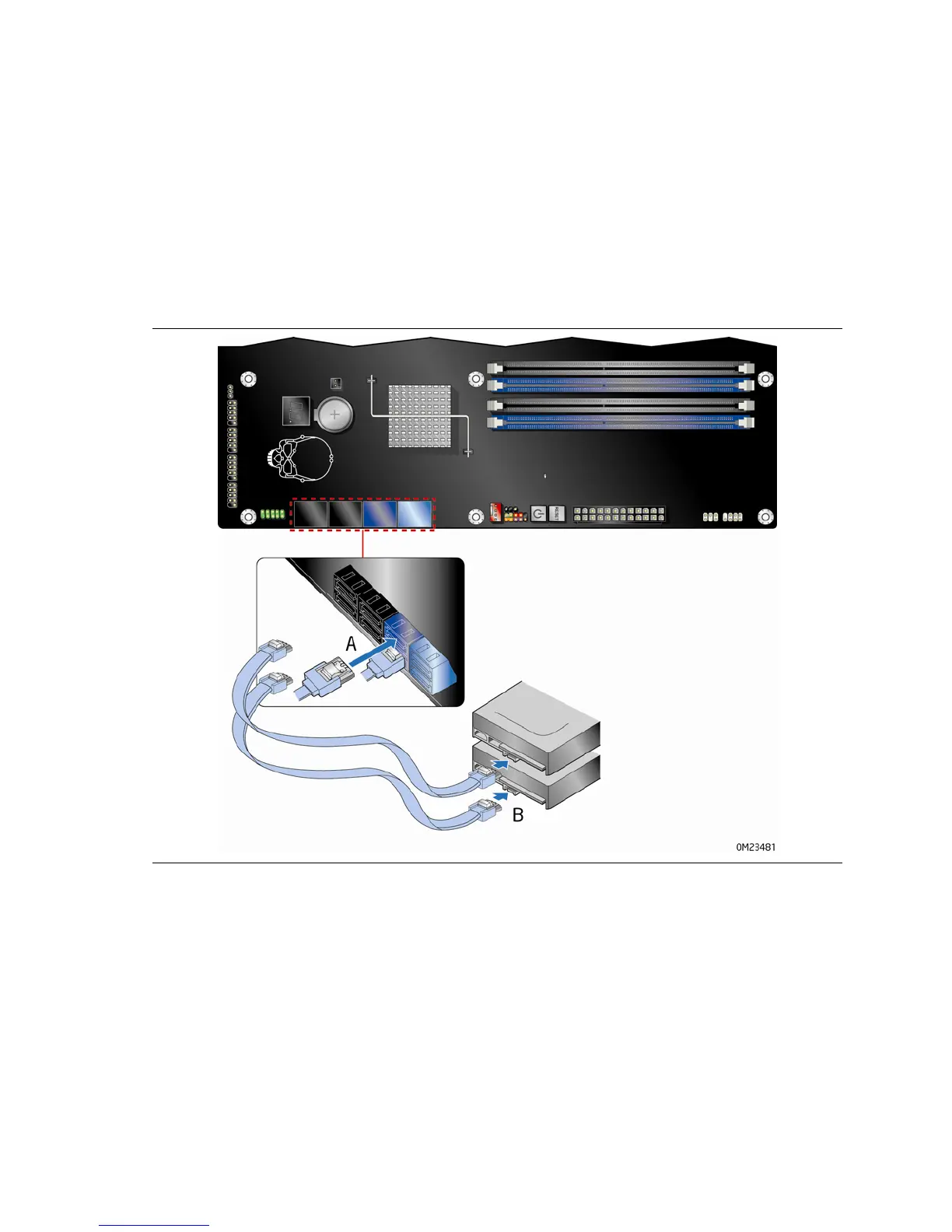

Figure 23. Connecting SATA Cables
