Installing and Replacing Desktop Board Components
49
Connecting to the Internal Headers and
Connectors
Before connecting cables to any of the in
ternal headers or
connectors, observe the
precautions in “
Before You Begin” on page
31.
Figure 24 shows the
location of the
internal headers and
connectors
on Intel Desktop Board DZ68BC.

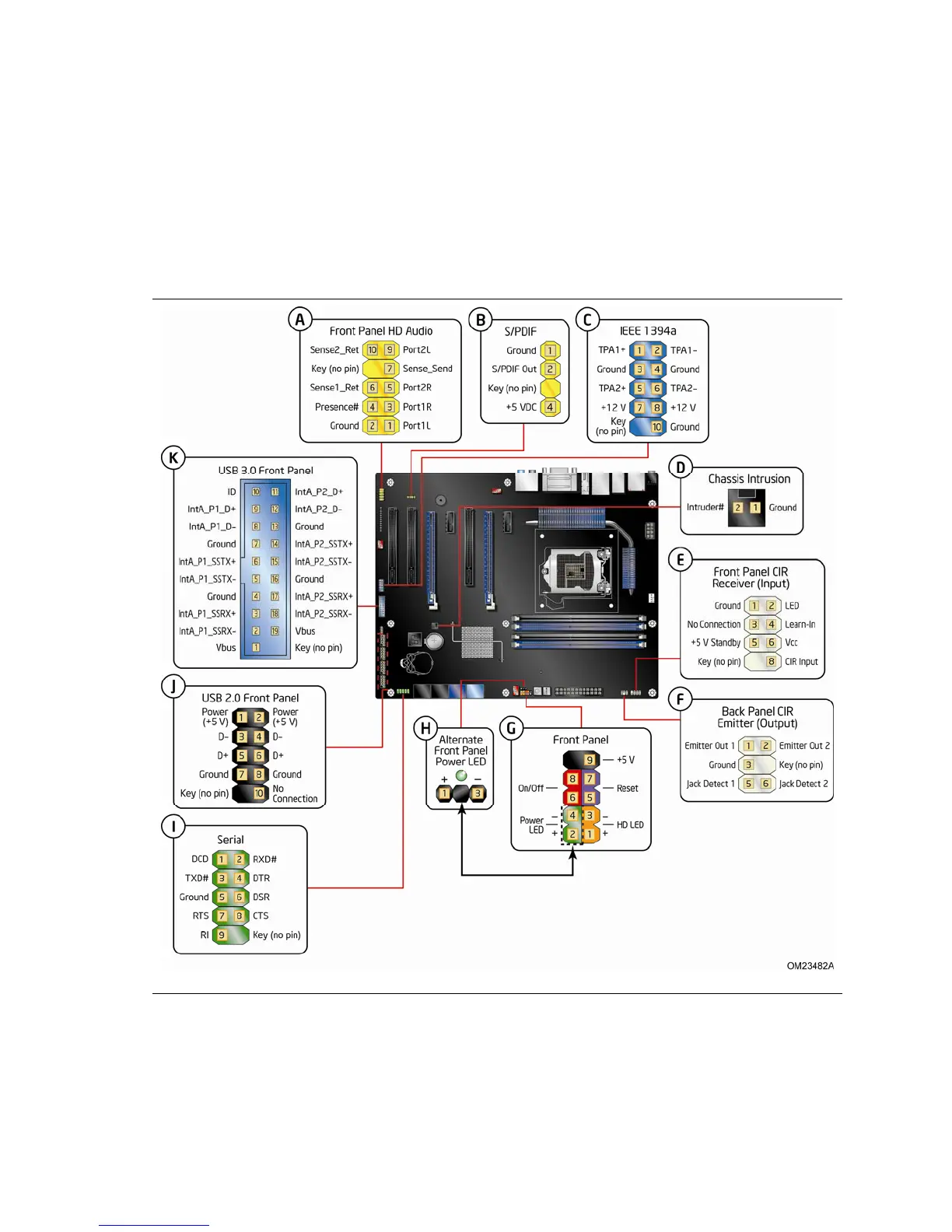

Figure 24. Internal H
eaders and Connect
ors
48
50
