Intel Desktop Board DZ68BC Product Guide
66
Installing the WiFi/Bluetooth* Module in a
Desktop Chassis (Optional)
Installing the WiFi/Bluetooth module that is shipped with Intel Desktop Board DZ68BC
in your desktop system allows you to connect to wireless networks and Bluetooth
peripherals.
The recommended installation procedure for a typical desktop chassis is as follows:
1. Observe the precautions in "Before You Begin" on page 31.
2. Make s
ure that the system is turned off and disconnected from its power source.
3. Remove the plastic cover from an empty 5-1/4 inch drive bay in the chassis bezel
(Figure 30, A).
4. Remove the
metal filler plate from the internal drive bay (Figure 30, B).
5. Remove the
paper backing covering the adhesive on the back of the WiFi/Bluetooth
Module and attach the module to the back side of the plastic drive bay cover
(Figure 30, C).
6. C
onnect one end of the USB cable to the connector on the front of the module
(Figure 30, D).
7. Rein
stall the plastic drive bay cover in the chassis bezel while routing the USB
cable into the chassis through the empty drive bay (Figure 30, E).
8. C
onnect the free end of the USB cable to an unused front panel USB header on the
Desktop Board (see Figure 1, HH for locations) (Figure 30, F).

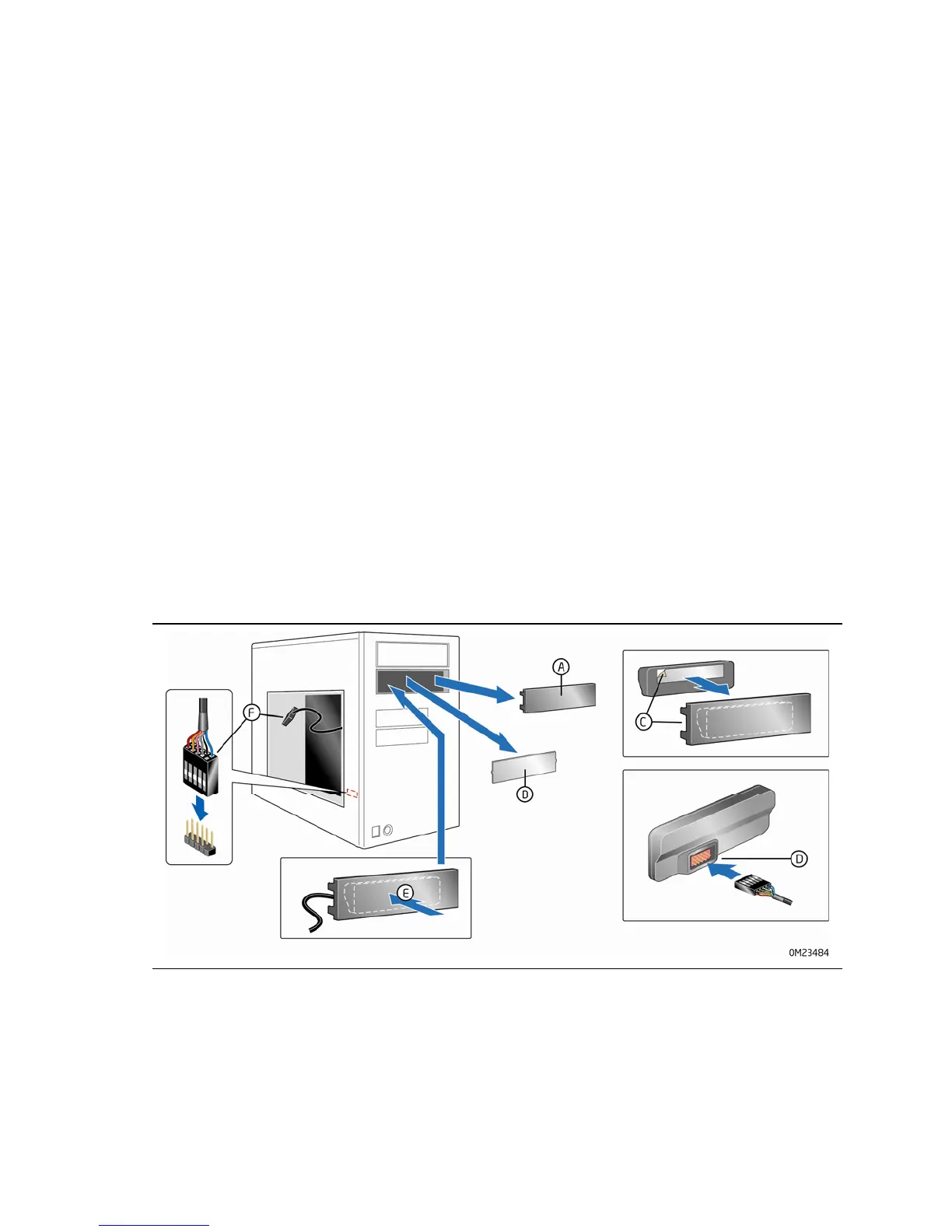

Figure 30. Installing the WiFi/Bluetooth Module
