Intel H110 User Manual

18

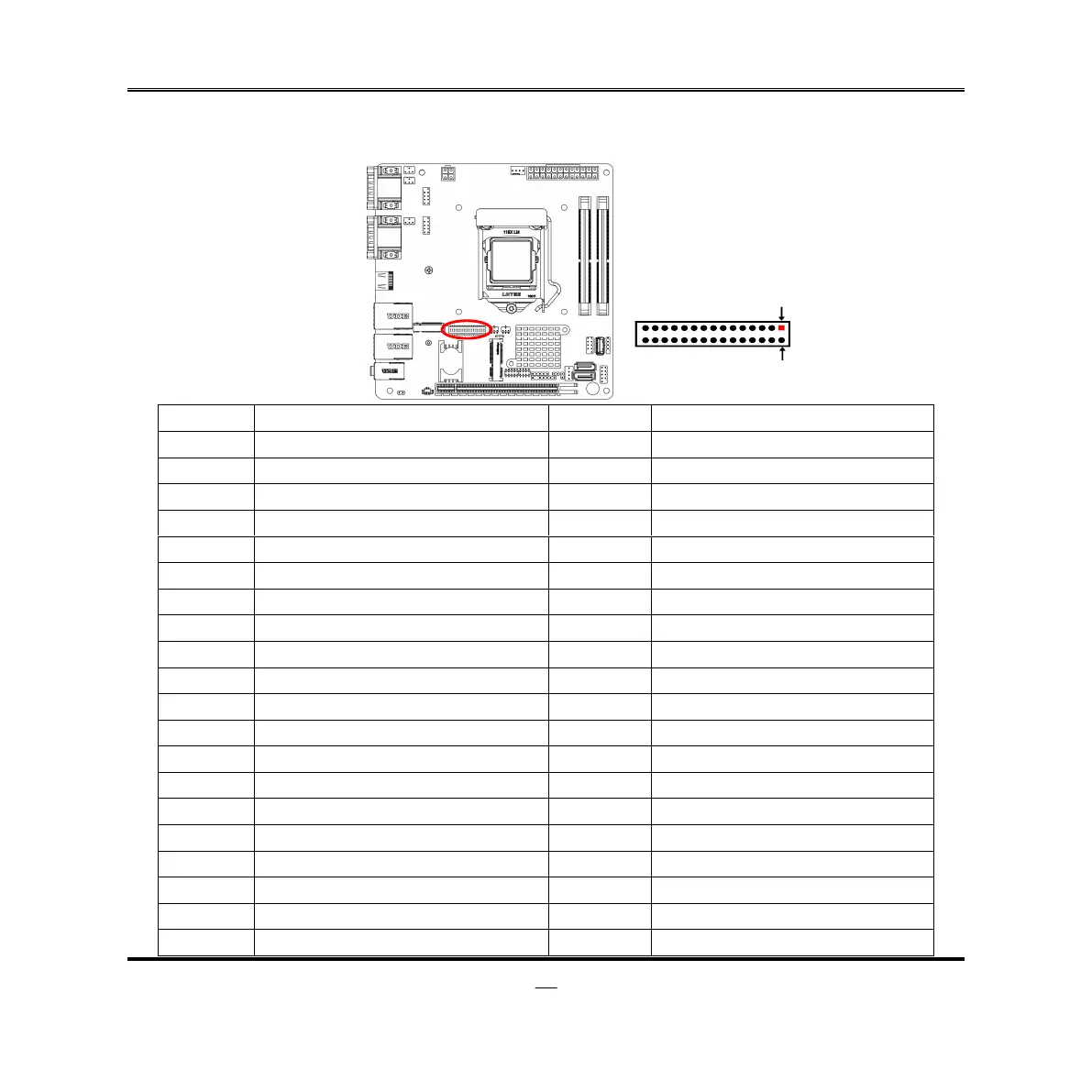

(8) EDP1(40-pin): EDP Connector
(1.25 pitch)
Pin 1
Pin21
Pin No.
Pin Define
Pin No.
Pin Define
Pin 1
NC
Pin 21
NC
Pin 2
GND
Pin 22
NC
Pin 3
EDP_DATA3N
Pin 23
GND
Pin 4
EDP_DATA3P
Pin 24
GND
Pin 5
GND
Pin 25
GND
Pin 6
EDP_DATA2N
Pin 26
GND
Pin 7
EDP_DATA2P
Pin 27
EDP_HPD
Pin 8
GND
Pin 28
GND
Pin 9
E DP_DATA1N
Pin 29
GND
Pin 10
EDP_DATA1P
Pin 30
GND
Pin 11
GND
Pin 31
GND
Pin 12
EDP_DATA0N
Pin 32
LCD_BKLT_EN
Pin 13
EDP_DATA0P
Pin 33
LCD_BKLT_PWM
Pin 14
GND
Pin 34
Option
Pin 15
EDP_AUXP
Pin 35
NC
Pin 16
EDP_AUXN
Pin 36
LCD_BKLT_PWR
Pin 17
GND
Pin 37
LCD_BKLT_PWR
Pin 18
LCD_VCC
Pin 38
LCD_BKLT_PWR
Pin 19
LCD_VCC
Pin 39
LCD_BKLT_PWR
Pin 20
LCD_VCC
Pin 40
NC

Intel H110 Specifications

General

Socket	LGA 1151
Memory Type	DDR4
Max Memory	32 GB
Memory Slots	2
PCIe 3.0 x16 Slots	1
PCI Express Lanes	6
RAID Support	No
Chipset	Intel H110
SATA Ports	4
Form Factor	ATX, Micro-ATX, Mini-ITX
Memory Speed	2133 MHz
USB 3.0 Ports	4
USB 2.0 Ports	6
Memory Channels	2
