Intel H110 User Manual

25
Chipset
To change chipset configuration
Security
Password settings
Boot
To change boot settings
Save & Exit
Save setting, loading and exit options.
User can press the right or left arrow key on the keyboard to switch from menu bar.
The selected one is highlighted.

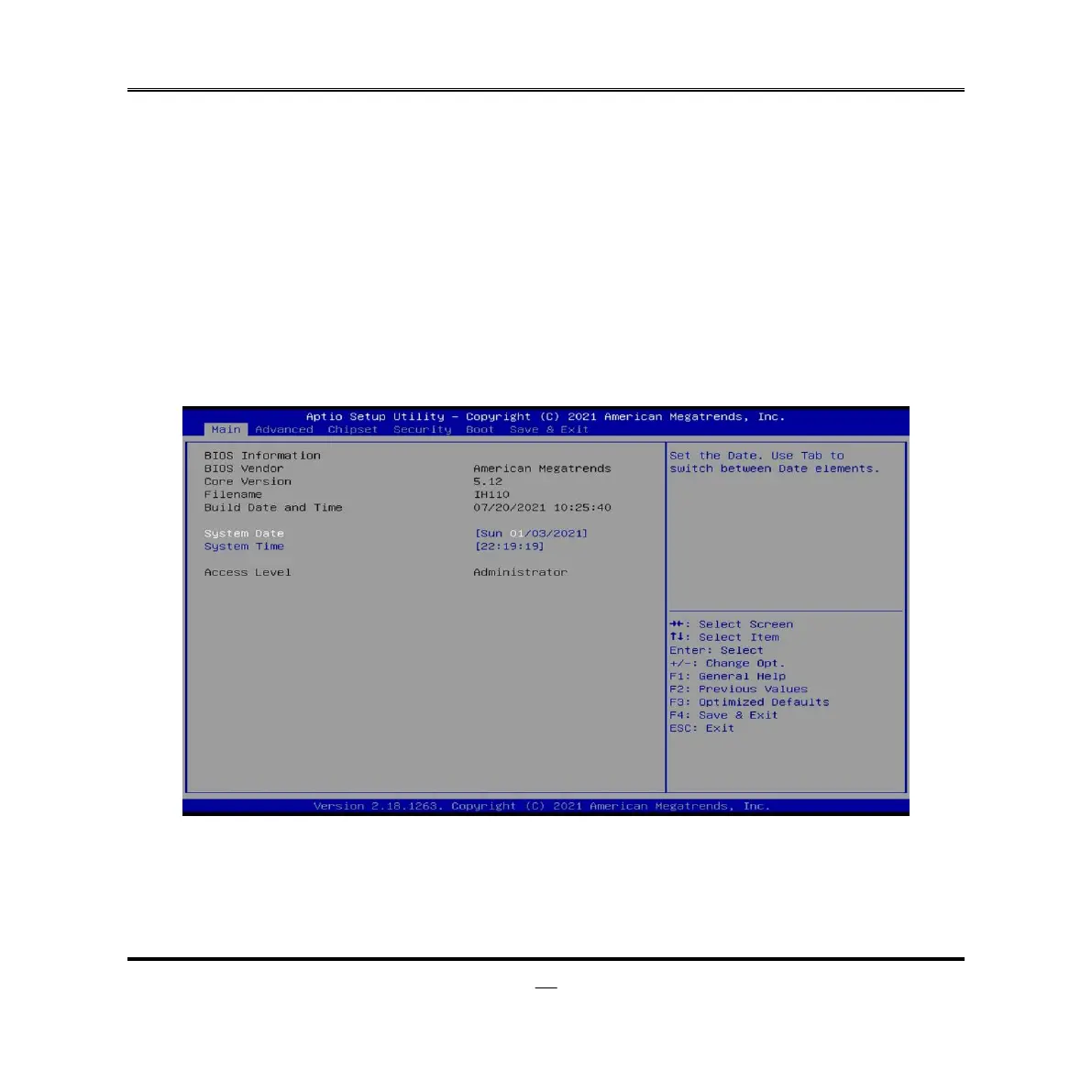

3-6 Main Menu
Main menu screen includes some basic system information. Highlight the item and
then use the <+> or <-> and numerical keyboard keys to select the value you want in
each item.
System Date
Set the date. Please use [Tab] to switch between data elements.
System Time
Set the time. Please use [Tab] to switch between time elements.

Intel H110 Specifications

General

Socket	LGA 1151
Memory Type	DDR4
Max Memory	32 GB
Memory Slots	2
PCIe 3.0 x16 Slots	1
PCI Express Lanes	6
RAID Support	No
Chipset	Intel H110
SATA Ports	4
Form Factor	ATX, Micro-ATX, Mini-ITX
Memory Speed	2133 MHz
USB 3.0 Ports	4
USB 2.0 Ports	6
Memory Channels	2
