Intel H110 User Manual

19

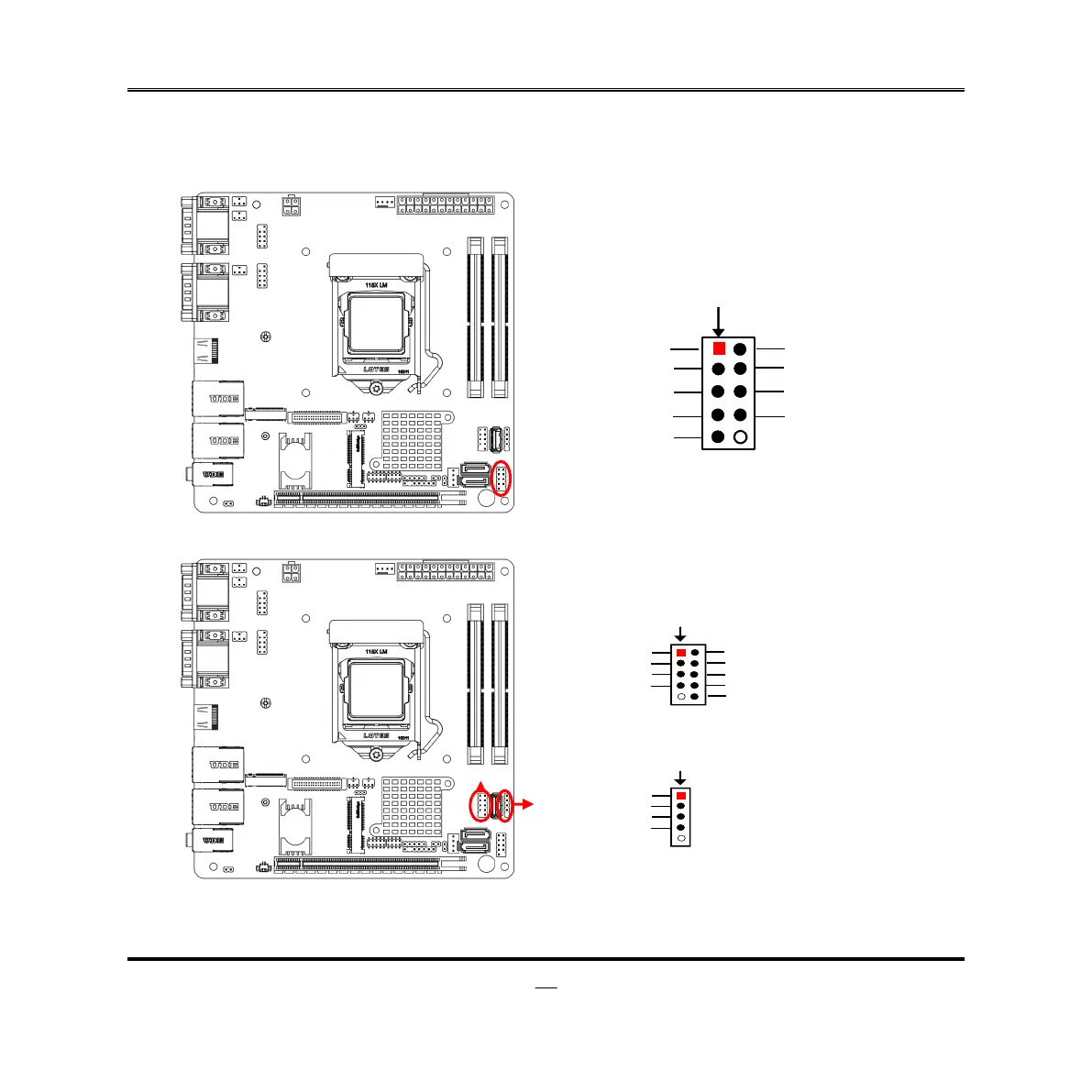

2-2-2 Headers
(1) FP1 (9-pin): Front Panel Header
(2.54 pitch)
HDD LED+
GND
HDD LED-
GND
RSTSW
PWRSW
Pin 1
2
VCC
PWR LED+
PWR LED -
(2) USB1/USB2 (9-pin): USB 2.0 Port Headers
(2.54 pitch)
VCC
NC
+DATA
Pin 1
-DATA
VCC
GND
GND
+DATA
-DATA
2
USB1 → USB 2.0 Port *2
+DATA
Pin 1
-DATA
VCC
GND
USB2 → USB 2.0 Port *1
USB1
USB2

Intel H110 Specifications

General

Socket	LGA 1151
Memory Type	DDR4
Max Memory	32 GB
Memory Slots	2
PCIe 3.0 x16 Slots	1
PCI Express Lanes	6
RAID Support	No
Chipset	Intel H110
SATA Ports	4
Form Factor	ATX, Micro-ATX, Mini-ITX
Memory Speed	2133 MHz
USB 3.0 Ports	4
USB 2.0 Ports	6
Memory Channels	2
