Intel H110 User Manual

4

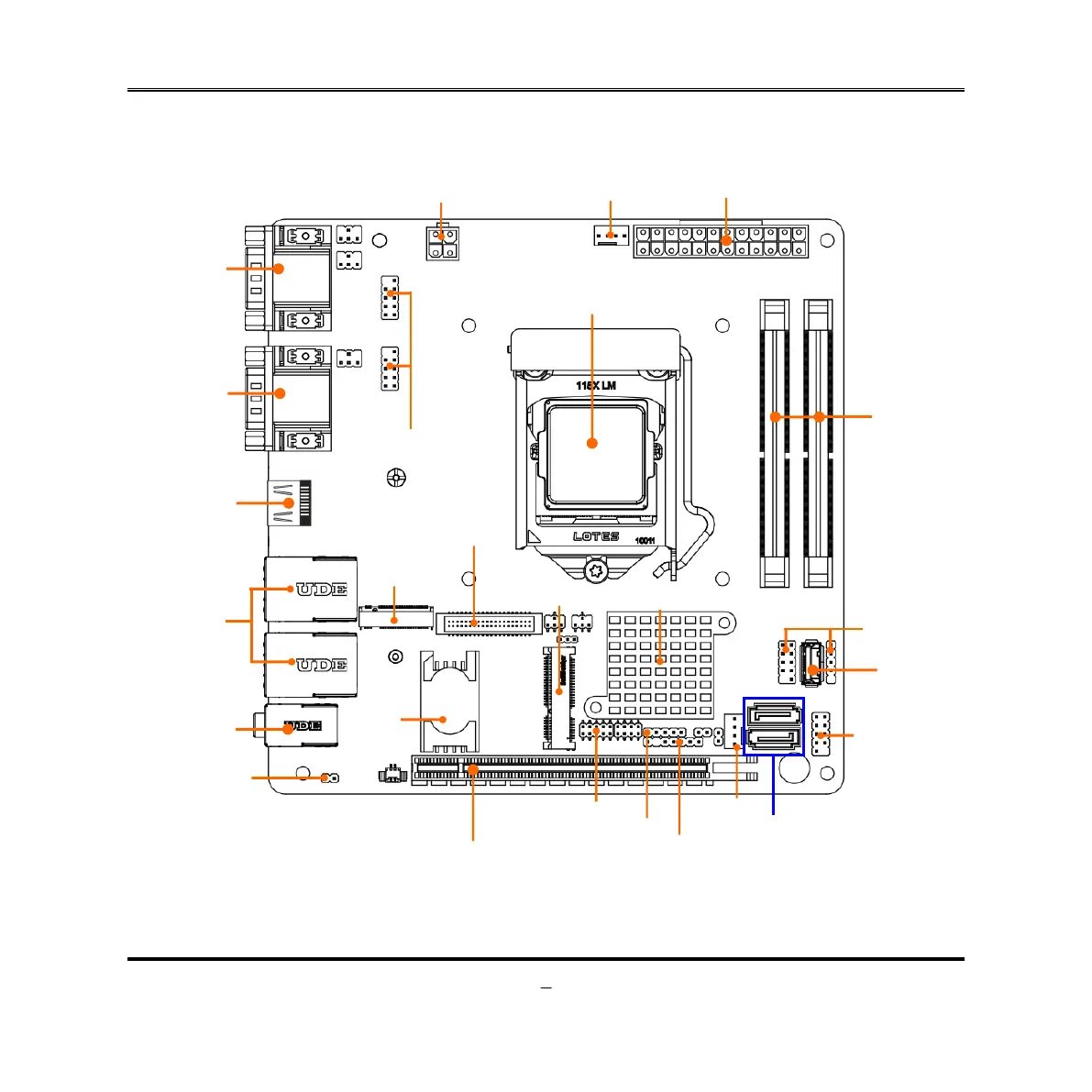

Motherboard Internal Diagram-Front
Note: SIM card slot only work when compatible SIM card installed & 3G LAN card installed in MPE1 Mini-PCIE slot.
VGA (Top)
COM port (Bottom)
COM Ports
RJ-45 LAN Ports
Over
USB 3.0 Ports
HDMI Port
LINE-OUT
/MIC Port
ATX Power
Connector
ATX 12V
Power Connector
CPUFAN Header
LGA 1151
CPU Socket
Intel H110 Chipset
PCI Express 2.0 x 16 Slot (PCIE1)
USB 2.0
Headers
Serial Port Headers
(COM5~6)
EDP
Connector
*DDR4 SODIMM Slot
(SODIMM1/2)
SATAIII Ports
(SATA1/2)
SYSFAN1 Header
Front Panel
Header
*SIM Card
Slot
*Full-size
Mini-PCIE/MSATA
Slot (MPE1)
SPDIF_OUT
Header
GPIO Header
PS/2 Keyboard & Mouse
Header
M.2 Socket 3
Connector
(MH1/2)
SUBUS Header
USB 2.0
Virtical Connector

Intel H110 Specifications

General

Socket	LGA 1151
Memory Type	DDR4
Max Memory	32 GB
Memory Slots	2
PCIe 3.0 x16 Slots	1
PCI Express Lanes	6
RAID Support	No
Chipset	Intel H110
SATA Ports	4
Form Factor	ATX, Micro-ATX, Mini-ITX
Memory Speed	2133 MHz
USB 3.0 Ports	4
USB 2.0 Ports	6
Memory Channels	2
