15

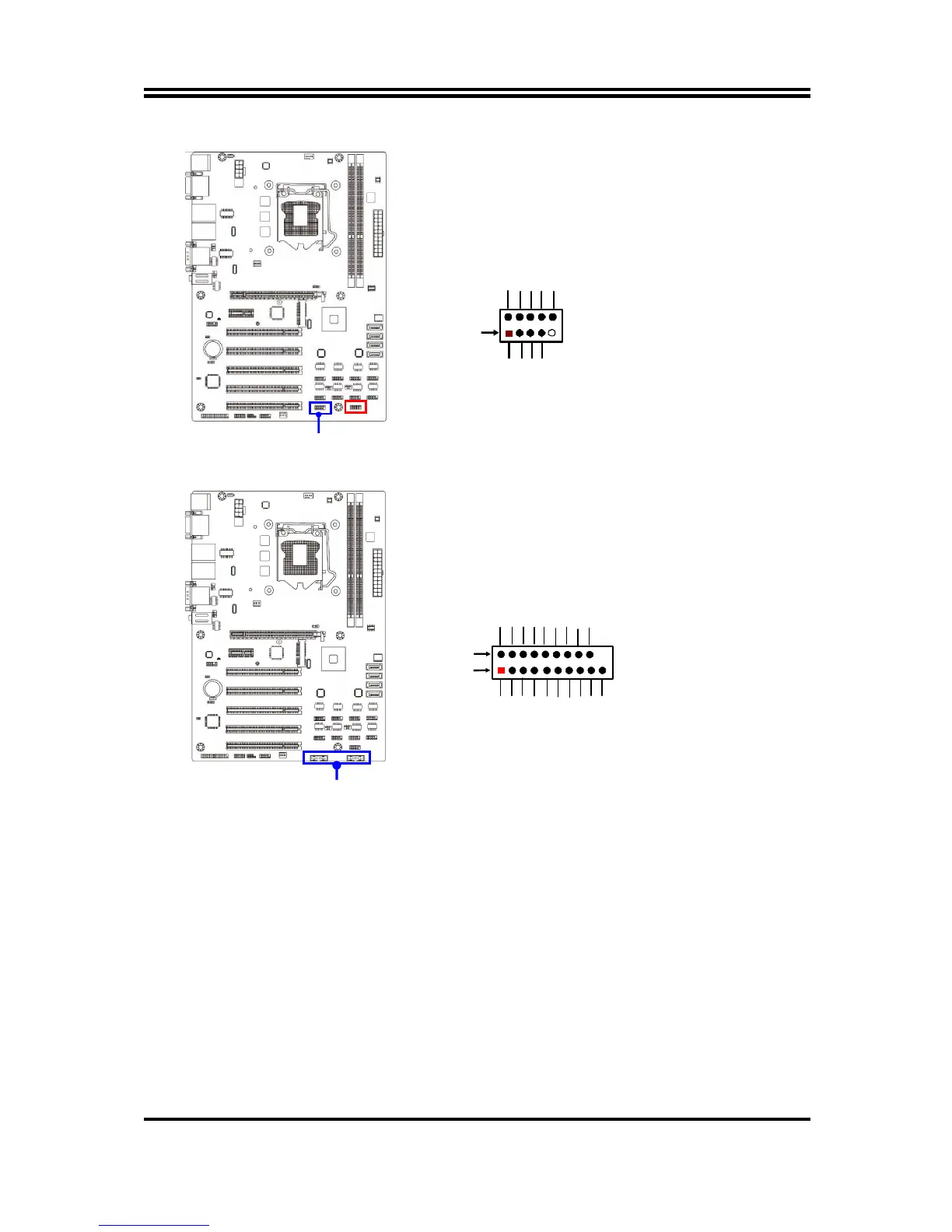

(8) USB 2.0 Port Headers (9-pin): USB2/USB3
Pin 1
VCC
-DATA
GND
+DATA
VCC
NC
-DATA
GND
+DATA
(9) USB 3.0 Port Headers (19-pin): USB3_1/USB3_2
SSRX1
-
SSRX1
+
GND1
SSTX1-
SSTX1+
GND0
D1-
D1+
VBUS
10
Pin 1
NC
D2+
D2-
GND2
SSTX2+
SSTX2-
GND3
SSRX2+
SSRX2-
VBUS2
12
20
*The above diagram for illustration is from model NLB75.
(10) COM2/4/6/5; COM7/8/10/9 (9-Pin): Serial Port Header
COM4:RS232/422/485 serial port header;
COM2/6/5 & COM7/8/10/9: RS232 serial port header only.
*Note: COM7/8/10/9 port: only optional for Model NLH61 & NLB75.
*
USB2 header
(Optional for Model NLH61 & NLH61-6C only)
*
USB3.
0 headers (USB3_1/USB3_2)
(Optional for Model NLB75 only)
