Intel H61 User Manual

7
Chapter 2
Hardware Installation

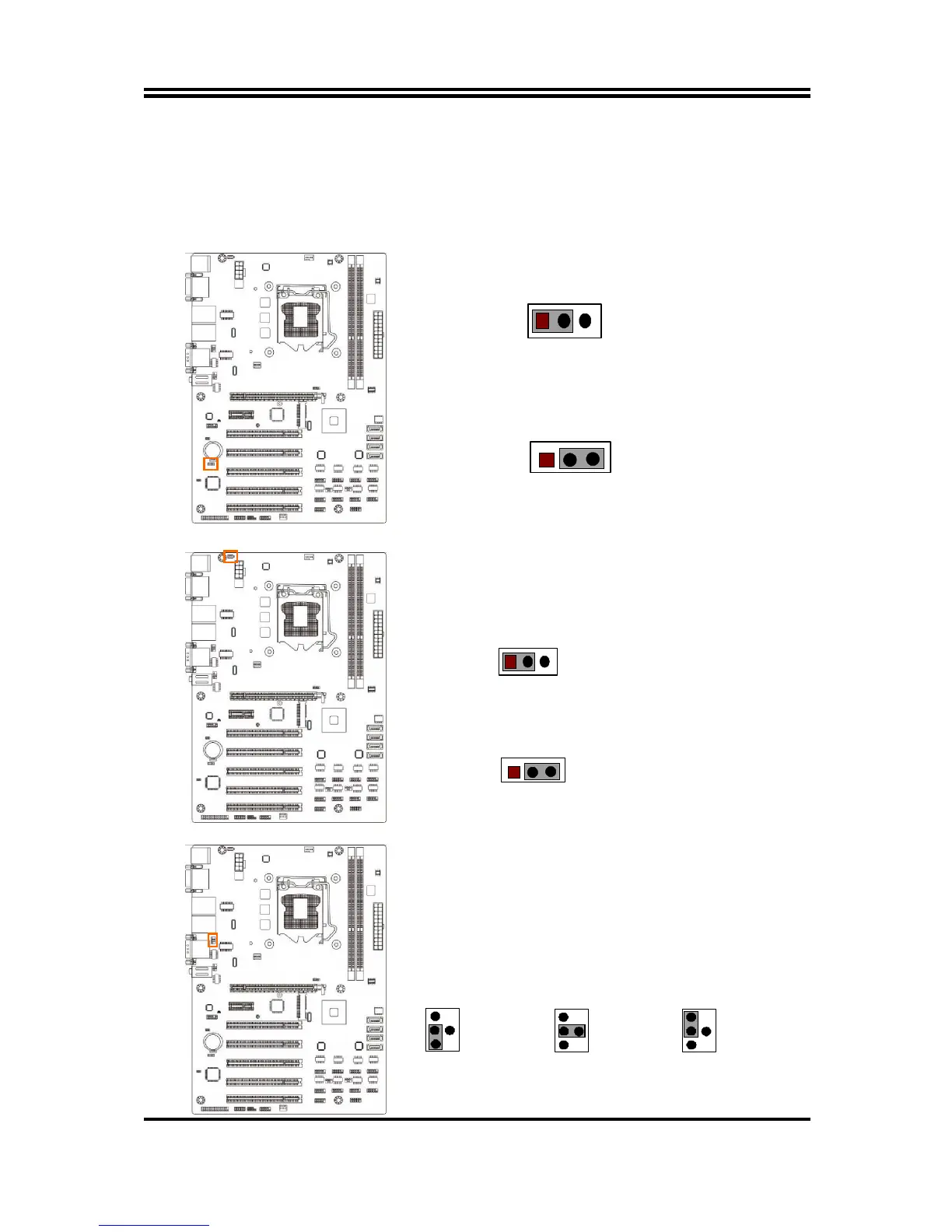

2-1 Jumper Setting
JBAT (3-pin): Clear CMOS Function Settings
2-3 Closed:Clear CMOS.
JBAT
1-2 Closed: Normal;
1
3
1
3
JP1 (4-pin): KB/MS Power on Function Setting
2-3 Closed: KB/MS Power on Function Enabled.
JP1
1-2 Closed: KB/MS Power on Function Disabled(default);
1
3
1
3
JP2 (4-pin): COM1 Port Pin9 Function Select
JP2→COM3 Port
4-6 Closed:
RI= 12V.
1
3
5
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
4
6
2
6
5
3
1
4
2
5
3
1
6
4
2

Intel H61 Specifications

General

Socket	LGA 1155
Memory Type	DDR3
PCI Express Version	2.0
RAID Support	No
Chipset	Intel H61
Memory Slots	2
Max Memory Supported	16 GB (depending on the manufacturer)
SATA Ports	4 x SATA 3Gb/s
USB Ports	10 (USB 2.0)
Form Factor	Micro-ATX
Integrated Graphics	Yes (requires CPU with integrated graphics)
Graphics Outputs	VGA, DVI, HDMI (depending on the manufacturer)
