Intel H61 User Manual

18

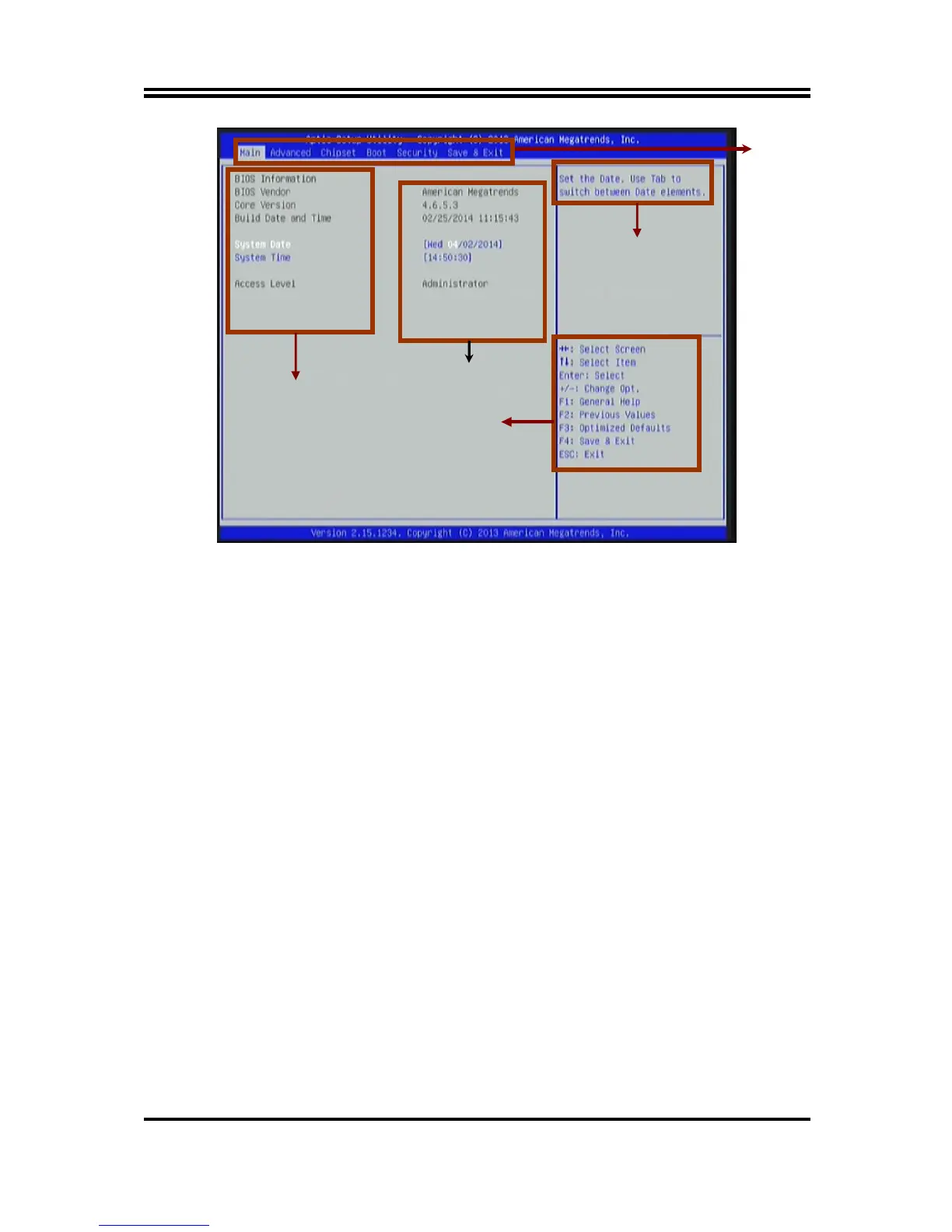

BIOS Menu Screen
3-3 Function Key
In the above BIOS Setup main menu of, you can see several options. We will explain
these options step by step in the following pages of this chapter, but let us first see a
short description of the function keys you may use here:
 Press (left, right) to select screen;
 Press  (up, down) to choose, in the main menu, the option you want to confirm
or to modify.
 Press <
Enter
> to select.
 Press <
+
>/<
–
> keys when you want to modify the BIOS parameters for the active
option.
 [
F1
]: General help.
 [
F2
]: Previous value.
 [
F3
]: Optimized defaults.
 [
F4
]: Save & Reset.
 Press <
Esc
> to quit the BIOS Setup.
3-4 Getting Help
Main Menu
The on-line description of the highlighted setup function is displayed at the top right
corner the screen.
Menu Bar
Menu Items
Current Setting Value
Function Keys
General Help Items

Intel H61 Specifications

General

Socket	LGA 1155
Memory Type	DDR3
PCI Express Version	2.0
RAID Support	No
Chipset	Intel H61
Memory Slots	2
Max Memory Supported	16 GB (depending on the manufacturer)
SATA Ports	4 x SATA 3Gb/s
USB Ports	10 (USB 2.0)
Form Factor	Micro-ATX
Integrated Graphics	Yes (requires CPU with integrated graphics)
Graphics Outputs	VGA, DVI, HDMI (depending on the manufacturer)
