Intel H61 User Manual

19
Status Page Setup Menu/Option Page Setup Menu
Press [F1]to pop up a small help window that describes the appropriate keys to use
and the possible selections for the highlighted item. To exit the Help Window, press
<
Esc
>.
3-5 Menu Bar
There are six menu bars on top of BIOS screen:
Main To change system basic configuration
Advanced To change system advanced configuration
Chipset To change chipset configuration
Boot To change boot settings
Security Password settings
Save & Exit Save setting, loading and exit options.
User can press the right or left arrow key on the keyboard to switch from menu bar.
The selected one is highlighted.

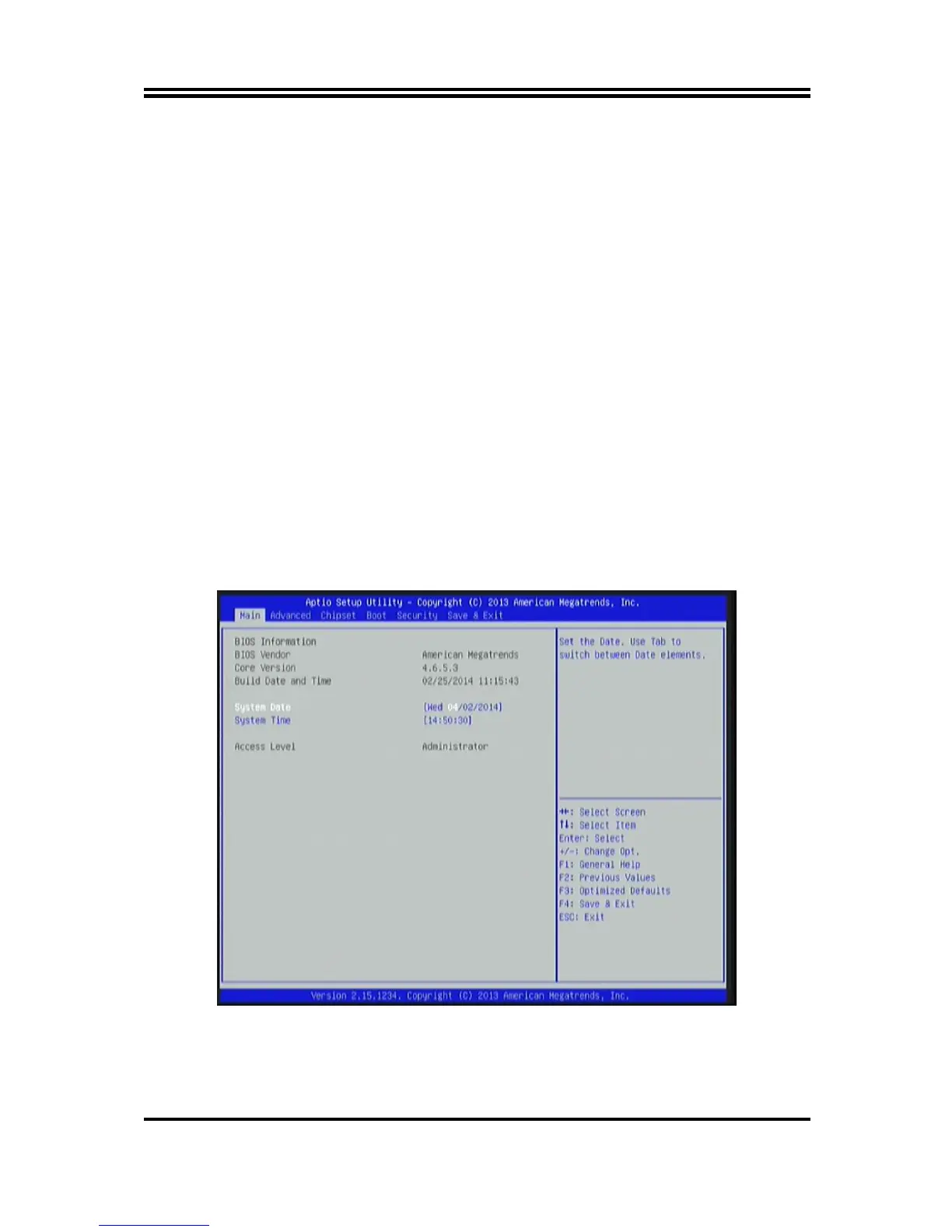

3-6 Main Menu
Main menu screen includes some basic system information. Highlight the item and
then use the <+> or <-> and numerical keyboard keys to select the value you want in
each item.
System Date
Set the date. Please use [Tab] key to switch between data elements.
System Time
Set the time. Please use [Tab] key to switch between time elements.

Intel H61 Specifications

General

Socket	LGA 1155
Memory Type	DDR3
PCI Express Version	2.0
RAID Support	No
Chipset	Intel H61
Memory Slots	2
Max Memory Supported	16 GB (depending on the manufacturer)
SATA Ports	4 x SATA 3Gb/s
USB Ports	10 (USB 2.0)
Form Factor	Micro-ATX
Integrated Graphics	Yes (requires CPU with integrated graphics)
Graphics Outputs	VGA, DVI, HDMI (depending on the manufacturer)
