Intel H61 User Manual

28
Press [Enter] to make settings for CPU PPM Configuration:
CPU PPM Configuration
EIST
Use this item to enable or disable Intel SpeedStep.
Turbo Mode
Use this item to enable or disable Turbo mode.
CPU C3 Report
Use this item to enable or disable CPU C3 (ACPI C2) report to OS.
CPU C6 Report
Use this item to enable or disable CPU C6 (ACPI C3) report to OS.
 SmartFan Configuration
SmartFan Configuration
CPUFAN SmartFan Mode
The optional settings: [Disabled]; [Enabled].
When set as [Enabled], the following sub-items shall appear:
CPUFAN Full Speed Temp
Use this item to set a degree for CPUFAN. FAN will run at full speed when above
the specific temperature set.
CPUFAN Idle Temp
Use this item to set a degree for CPUFAN. FAN will idle speed when below this
temperature.
CPUFAN Stop Temp
Use this item to set a degree for CPUFAN. CPU FAN will stop when below this
temperature.

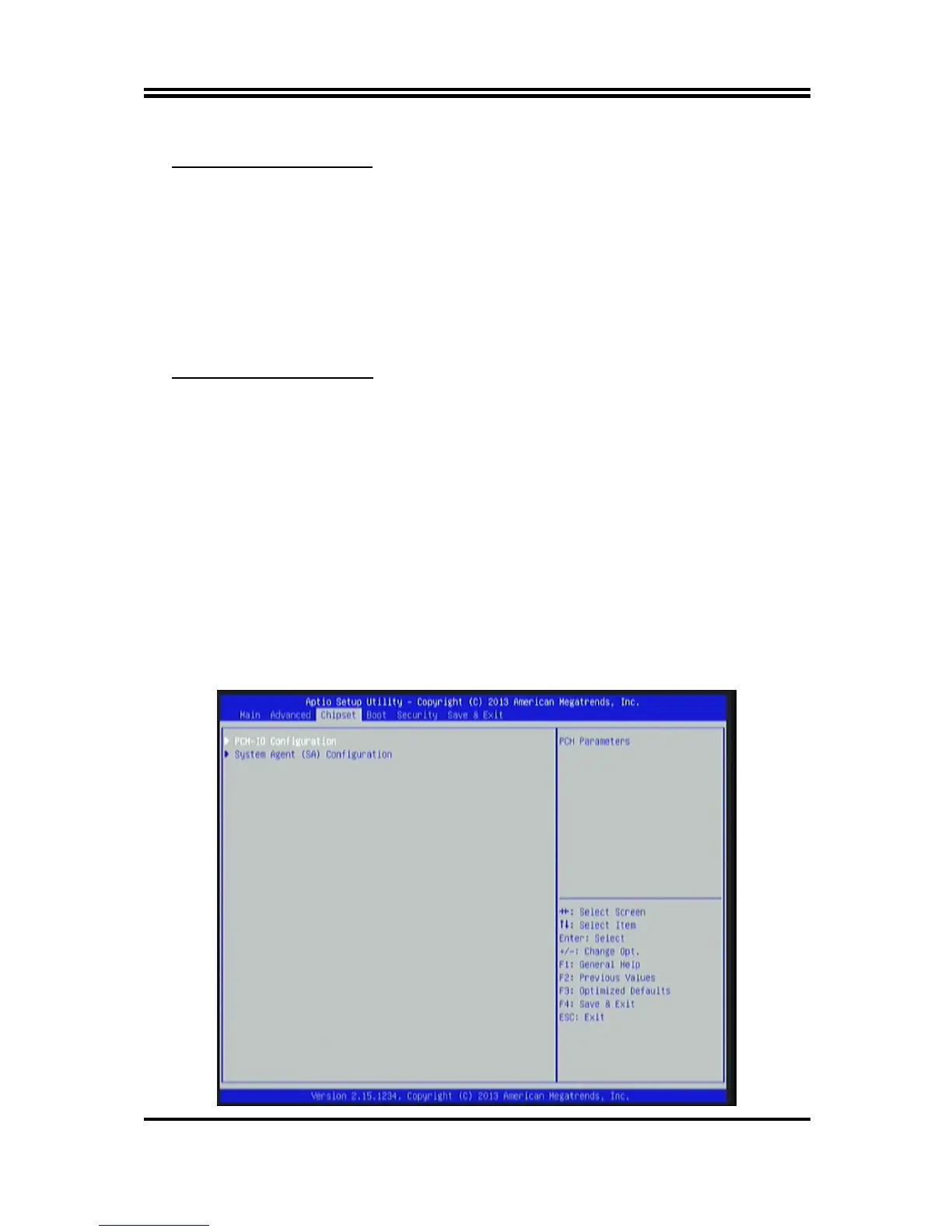

3-8 Chipset Menu

Intel H61 Specifications

General

Socket	LGA 1155
Memory Type	DDR3
PCI Express Version	2.0
RAID Support	No
Chipset	Intel H61
Memory Slots	2
Max Memory Supported	16 GB (depending on the manufacturer)
SATA Ports	4 x SATA 3Gb/s
USB Ports	10 (USB 2.0)
Form Factor	Micro-ATX
Integrated Graphics	Yes (requires CPU with integrated graphics)
Graphics Outputs	VGA, DVI, HDMI (depending on the manufacturer)
