Intel NUC6i7KYK User Manual

Intel NUC Kit NUC6i7KYK User Guide
10

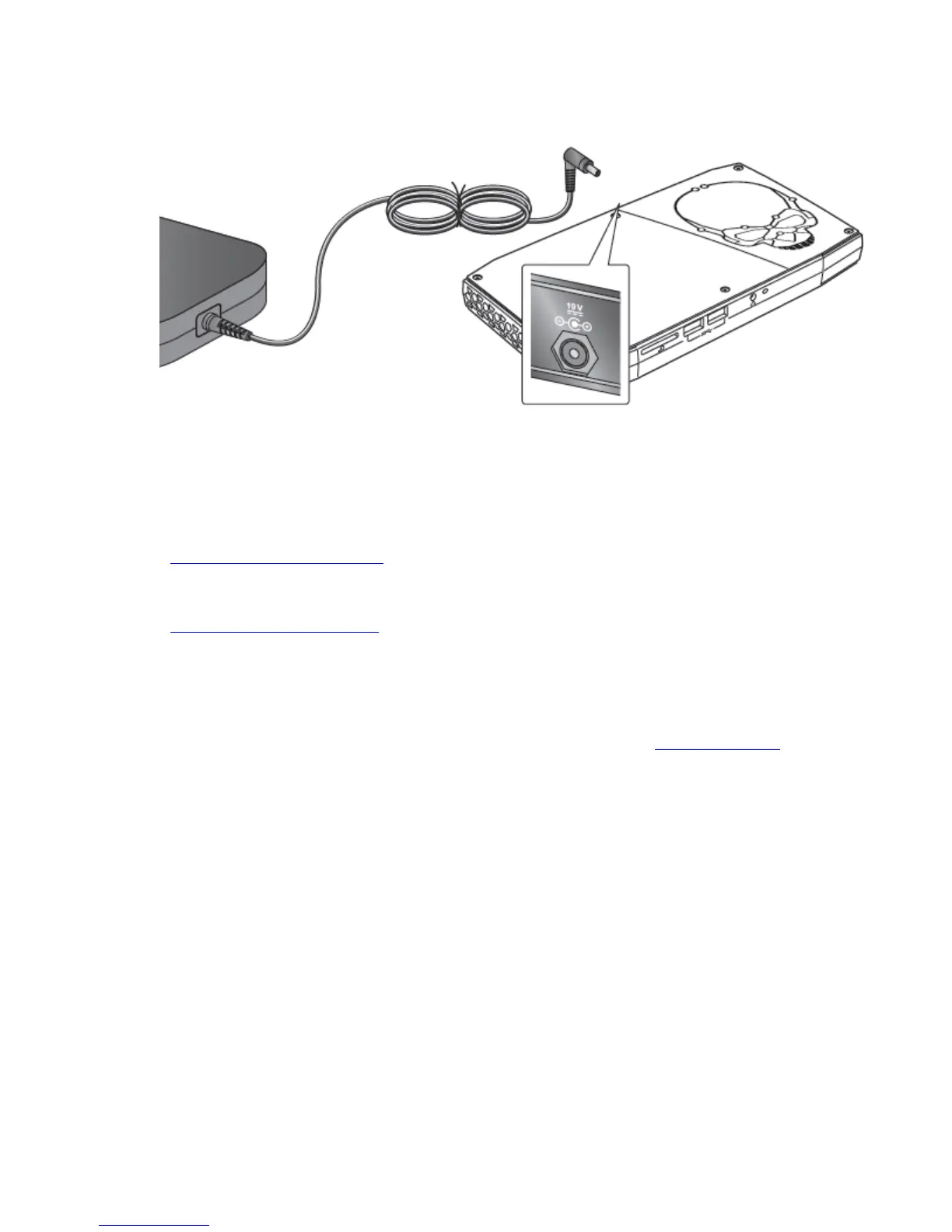

3. Connect the adapter to the 19V power jack on the back of the Intel NUC.
4. Connect to AC power.
Install an Operating System
Refer to Supported Operating Systems for a list of Intel-validated Windows* operating systems, as well
as versions of Linux that have been reported as compatible by Intel NUC owners.
Refer to Operating System Installation for system requirements and installation steps.
Install Intel NUC Drivers
To download the latest Microsoft* Windows* drivers and BIOS updates, go to Download Center.
Drivers are available for the following features:
 Audio
 Bluetooth
 Card Reader
 Chipset
 Consumer Infrared
 Graphics
 Intel® ME
 Intel® Rapid Storage Technology
 Intel® Ready Mode Technology
 Intel® Software Guard Extensions
 LAN (wired and wireless)
 Thunderbolt
 USB 3.0

Intel NUC6i7KYK Specifications

General

Processor	Intel Core i7-6770HQ
Graphics	Intel Iris Pro Graphics 580
Dimensions	211 mm x 116 mm x 28 mm
Memory	up to 32GB
Storage	M.2 SSD (PCIe x4 NVMe or SATA), 2.5" HDD/SSD (SATA)
Connectivity	Intel Wireless-AC 8260 + Bluetooth 4.2
Ports	4x USB 3.0, 1x HDMI 2.0, 1x Mini DisplayPort 1.2
Audio	7.1 digital audio via HDMI and Mini DisplayPort, Headphone/Microphone jack
Ethernet	Intel i219-V 10/100/1000 Mbps Ethernet
Card Reader	SDXC card slot with UHS-I support
Power Supply	19V
Operating System Support	Windows 10
