Intel NUC6i7KYK User Manual

Intel NUC Kit NUC6i7KYK User Guide
6

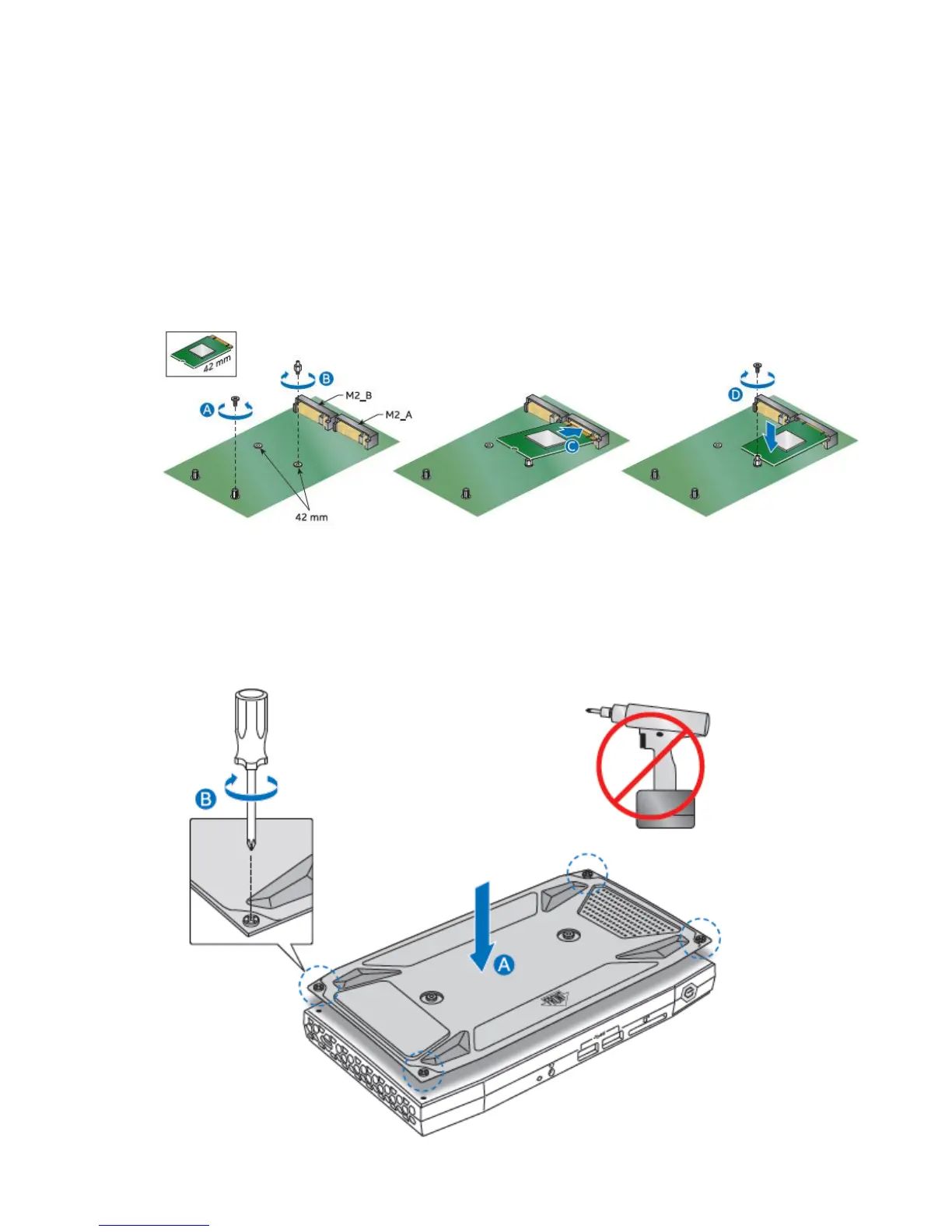

If you are installing a 42mm M.2 SSD:
1. Remove the small silver screw from the metal standoff on the motherboard (A).
2. Move the standoff (B) from the 80mm position to the 42mm position (B).
3. Align the small notch at the bottom edge of the M.2 card with the key in the connector.
4. Insert the bottom edge of the M.2 card into the connector (C).
5. Secure the card to the standoff with the small silver screw (D).
Close the Chassis
After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by
hand with a screwdriver to avoid over-tightening and possibly damaging the screws.

Intel NUC6i7KYK Specifications

General

Processor	Intel Core i7-6770HQ
Graphics	Intel Iris Pro Graphics 580
Dimensions	211 mm x 116 mm x 28 mm
Memory	up to 32GB
Storage	M.2 SSD (PCIe x4 NVMe or SATA), 2.5" HDD/SSD (SATA)
Connectivity	Intel Wireless-AC 8260 + Bluetooth 4.2
Ports	4x USB 3.0, 1x HDMI 2.0, 1x Mini DisplayPort 1.2
Audio	7.1 digital audio via HDMI and Mini DisplayPort, Headphone/Microphone jack
Ethernet	Intel i219-V 10/100/1000 Mbps Ethernet
Card Reader	SDXC card slot with UHS-I support
Power Supply	19V
Operating System Support	Windows 10
