Intel NUC6i7KYK User Manual

Intel NUC Kit NUC6i7KYK User Guide
7

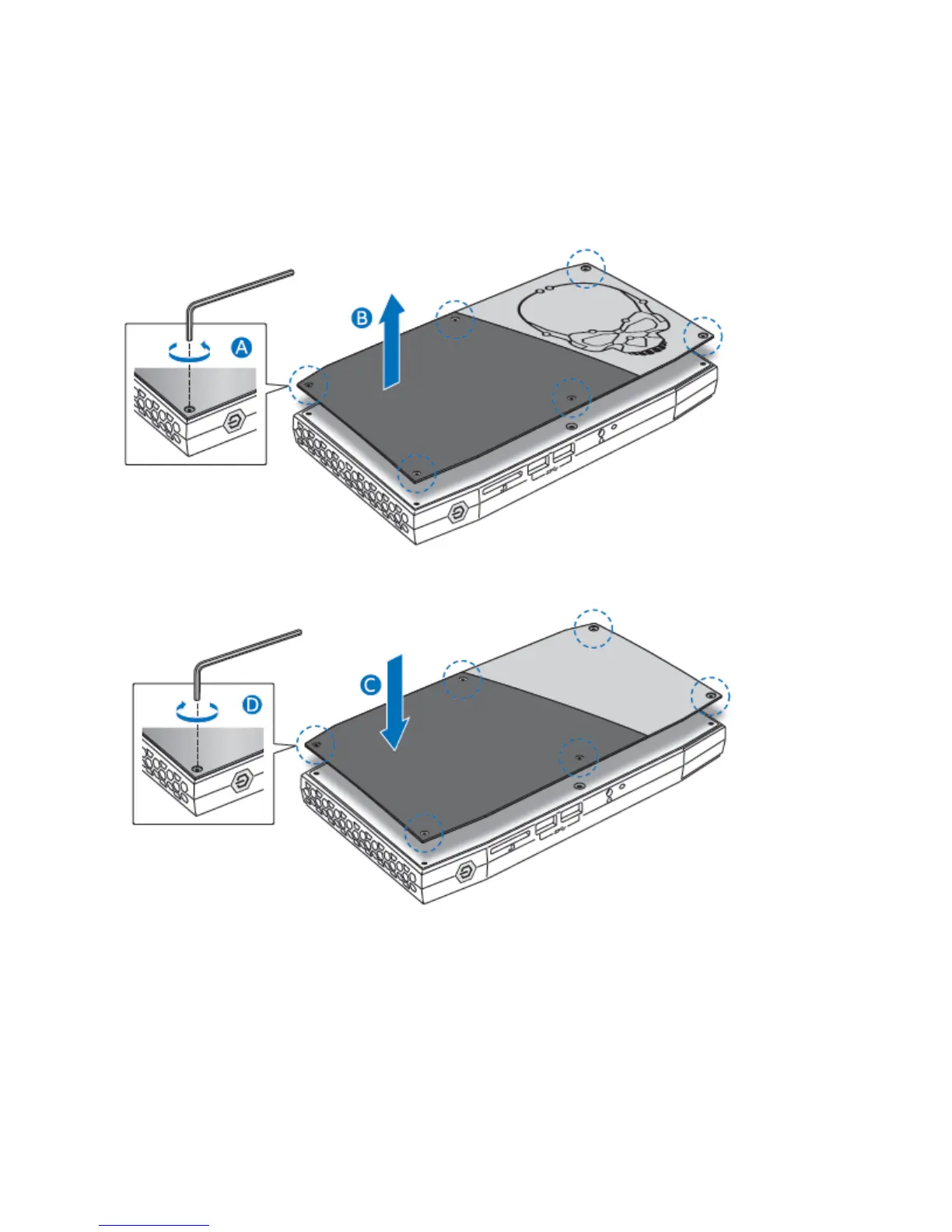

Change the Intel NUC Lid (Optional)
Follow these instructions to replace the factory-installed skull lid with the one included in the box.
Remove the six screws on the top cover of the chassis using the 2mm hex key (Allen wrench) included in
the box and lift the cover.
Secure the alternate lid to the chassis with the six screws, using the hex key (Allen wrench).

Intel NUC6i7KYK Specifications

General

Processor	Intel Core i7-6770HQ
Graphics	Intel Iris Pro Graphics 580
Dimensions	211 mm x 116 mm x 28 mm
Memory	up to 32GB
Storage	M.2 SSD (PCIe x4 NVMe or SATA), 2.5" HDD/SSD (SATA)
Connectivity	Intel Wireless-AC 8260 + Bluetooth 4.2
Ports	4x USB 3.0, 1x HDMI 2.0, 1x Mini DisplayPort 1.2
Audio	7.1 digital audio via HDMI and Mini DisplayPort, Headphone/Microphone jack
Ethernet	Intel i219-V 10/100/1000 Mbps Ethernet
Card Reader	SDXC card slot with UHS-I support
Power Supply	19V
Operating System Support	Windows 10
