Intel NUC6i7KYK - Attach and Use the VESA Bracket

Intel NUC Kit NUC6i7KYK User Guide
8

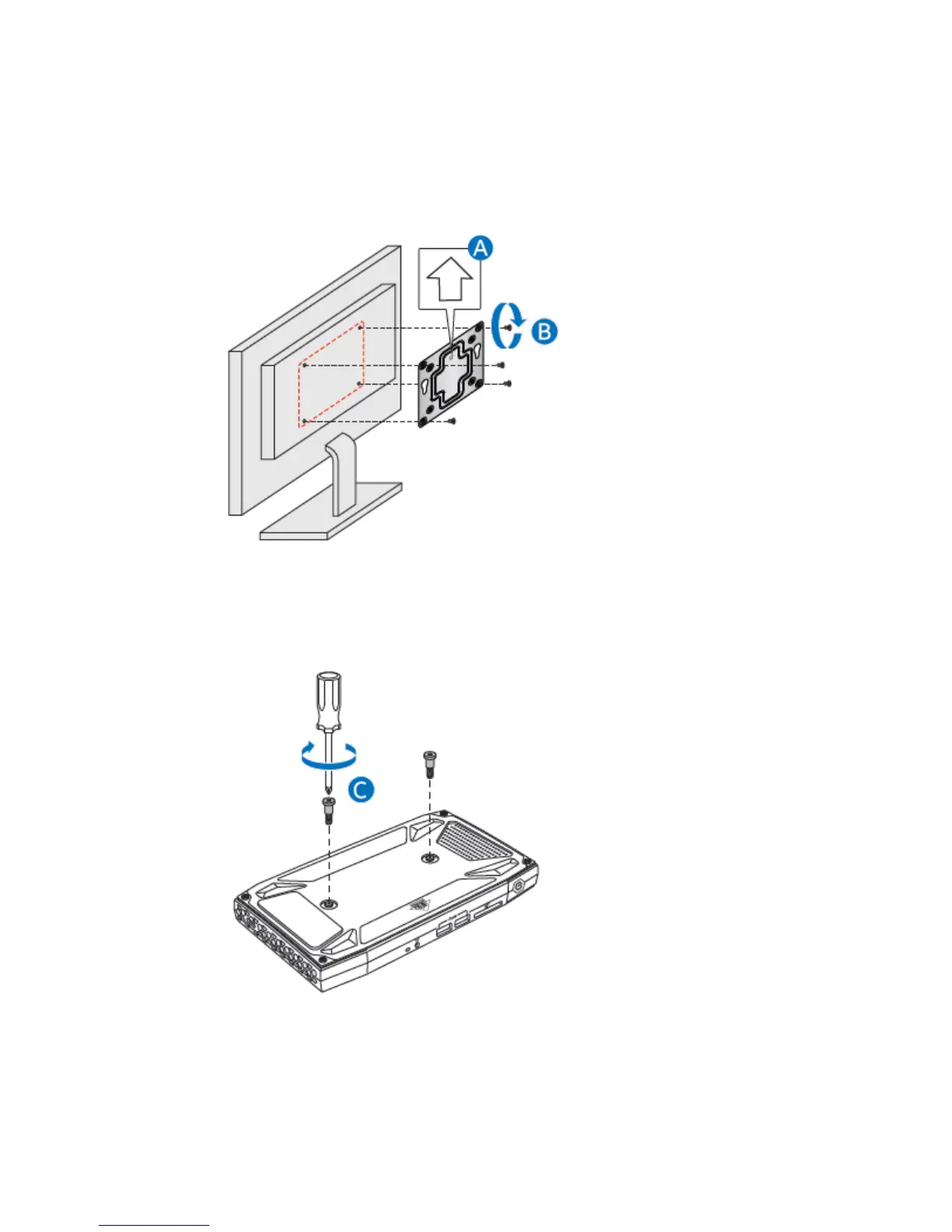

Attach and Use the VESA Bracket (Optional)
Follow these instructions to attach and use the VESA mount bracket:
1. Using the four small black screws that were included in the box, attach the VESA bracket to the
back of the monitor or TV.
2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC.
