2-4 Install Memory
This motherboard provides four 240-pin DDR2 DUAL INLINE MEMORY MODULES
(DIMM) socket for DDR2 memory expansion available from minimum memory volume of
128MB to maximum memory volume of 8.0GB DDR SDRAM.
Valid Memory Configurations
Bank 240-Pin DIMM PCS Total Memory
Bank 0, 1 (DIMM1 Blue)
DDR2 667 /DDR2 800 X1
128MB∼2.0GB
Bank 2, 3 (DIMM2 Black)
DDR2 667 /DDR2 800 X1
128MB∼2.0GB
Bank 4, 5 (DIMM3 Blue)
DDR2 667 /DDR2 800 X1
128MB∼2.0GB
Bank 6,7 (DIMM4 Black)
DDR2 667 /DDR2 800 X1
128MB∼2.0GB
Total System Memory (Max. 8.0GB) 4
128MB∼8.0GB
Recommend DIMM Module Combination
1. One DIMM Module ----Plug in DIMM1
2. Two DIMM Modules---Plug in DIMM1 and DIMM3 for Dual channel function
3. Four DIMM Modules---Plug in DIMM1/DIMM2/DIMM3/DIMM4.
For Dual channel Limited!
4. Dual channel function only supports when 2 DIMM Modules plug in either both DIMM1 &
DIMM3 or DIMM2 &DIMM4, or four DIMM Modules plug in DIMM1~DIMM4.
5. DIMM1 & DIMM3 or DIMM2 & DIMM4 must be the same type, same size, same frequency
for dual channel function.

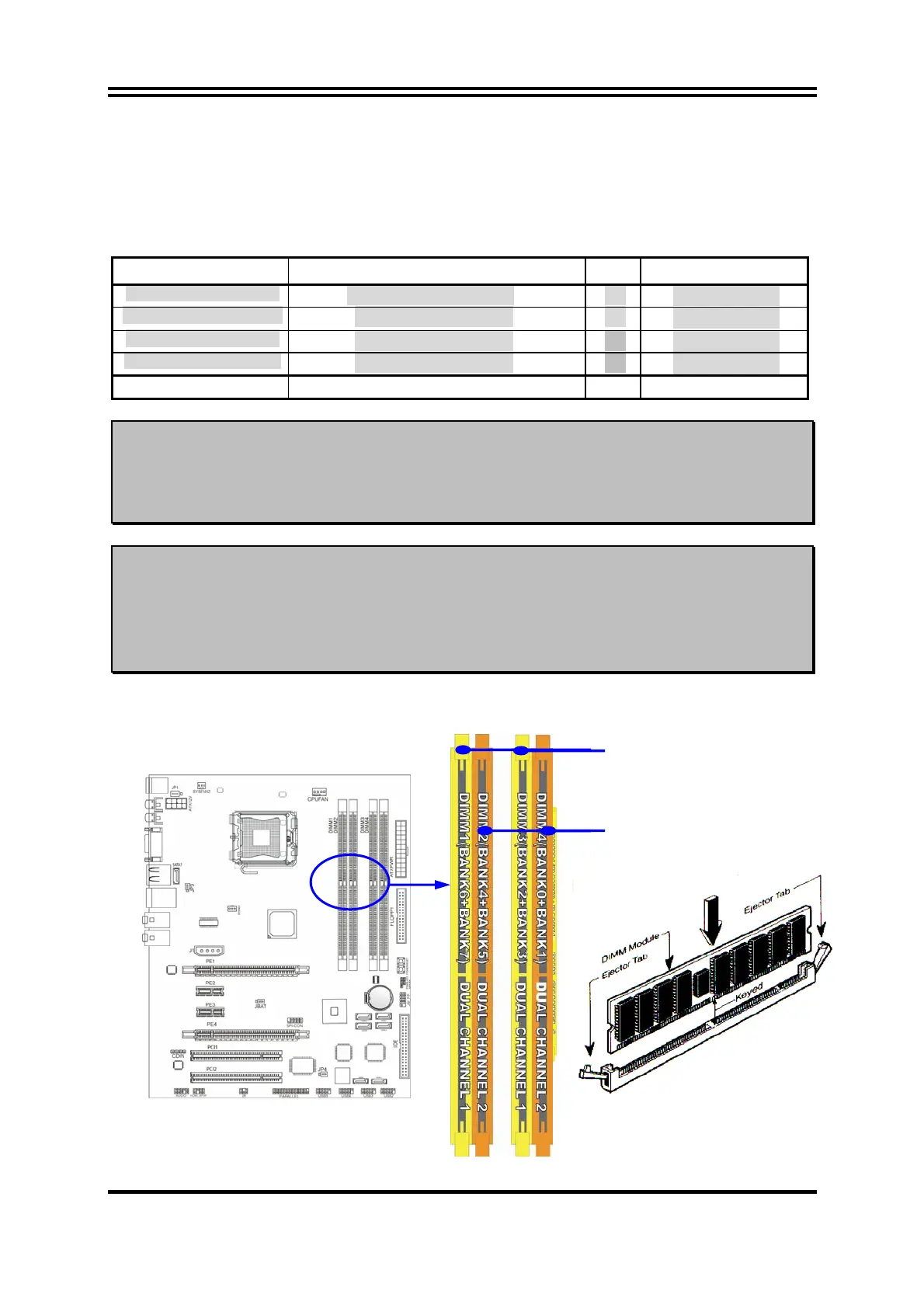

Install DDR SDRAM modules to your motherboard is not difficult, you can refer to figure
below to see how to install a 240-Pin DDR2 667/DDR2 800 SDRAM module.
DIMM1,3 (Blue)
DIMM2，4（Black）
