23

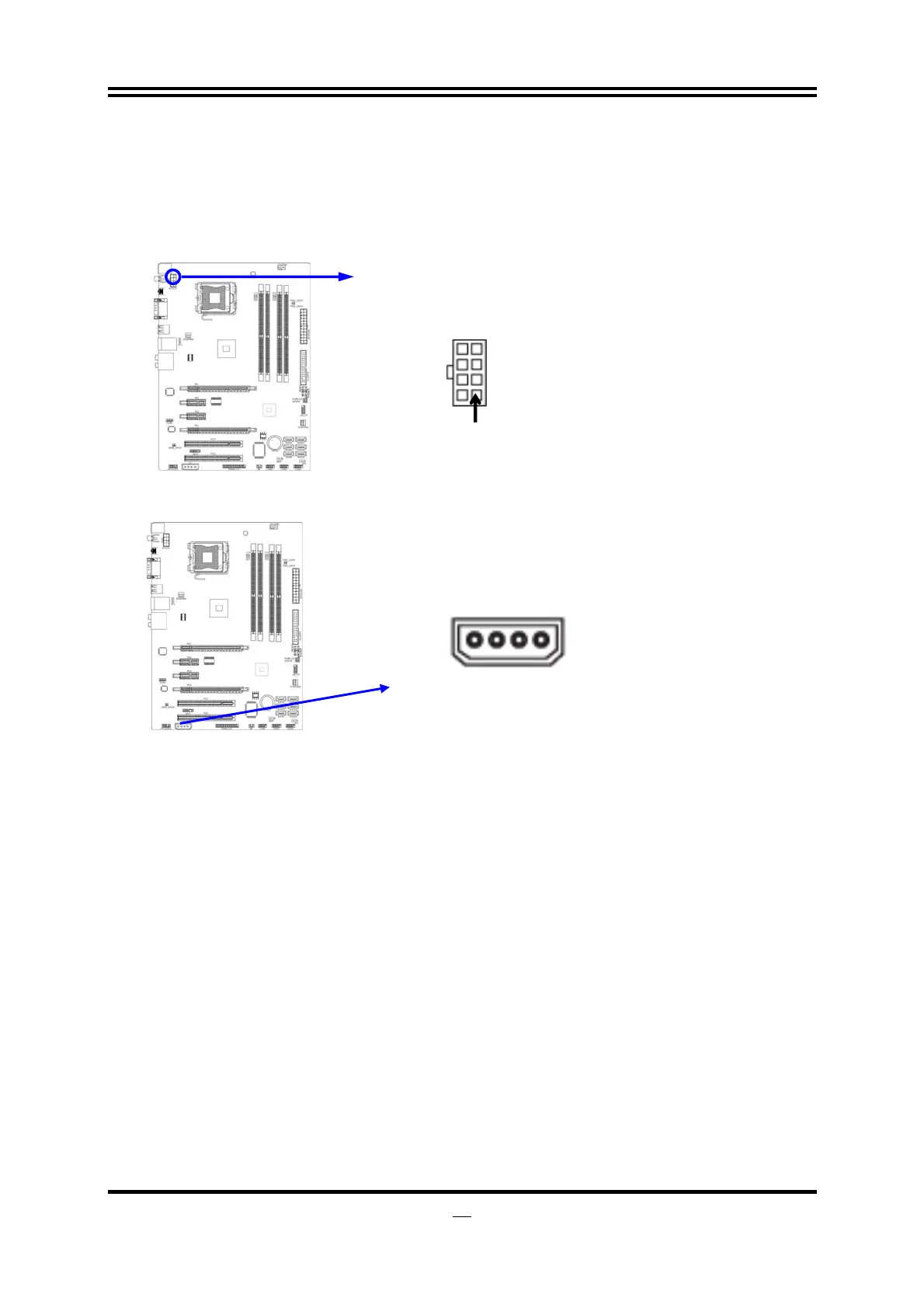

(2) ATX 12V Power Connector (8-pin block) : ATX12V
This is a new defined 8-pin connector that usually comes with ATX Power Supply.
The ATX Power Supply which fully supports LGA775 processor must including this
connector for support extra 12V voltage to maintain system power consumption.
Without this connector might cause system unstable because the power supply can not
provide sufficient current for system.
(3) J1 Power Connector: Large 4-Pin Power Connector
The connectors are 4-pin connector that supports extra 12V / 5V power to your system.
(4) PS/2 Mouse & PS/2 Keyboard Connector: KB
The connectors are for PS/2 keyboard and PS/2 Mouse input devices.
(5) USB Port connector: USB connector from USB1, UL1
The connectors are 4-pin connectors that connect USB devices with the 400Mbit / sec
data transfer rate to the system board.
(6) LAN Port connector: R-J45 connector from UL1
This connector is standard RJ45 over USB connectors for Network connection. The
connector supports 10MB/100MB/1G B/s data transfer rate.
(7) Audio Line-In, Lin-Out, MIC, Surrback, Surround, CEN/BASS Connector:
AUDIO
These Connectors are 6 Phone-Jack for LINE-OUT, LINE-IN, MIC, Surrback, Surround,
CEN/LEF audio connections.
Line-in : (BLUE)
Audio input to sound chip
Line-out : (GREEN)
Audio output to speaker
MIC : (PINK)
Microphone Connector
Surrback : (ORANGE)
Audio output to speaker-Rear speaker out
CEN/BASS : (BLACK)
Audio output to speaker-Center/Subwoofer speaker out
Surround: (GRAY)
Audio output to speaker-Side speaker out
Pin 1
