Intel RS2BL080 - RAID Controller - Figure 1. Changing the Bracket; Figure 2. Installing the Intel RAID Controller RS2 BL080

8 Intel® RAID Controller RS2BL080 Hardware User’s Guide

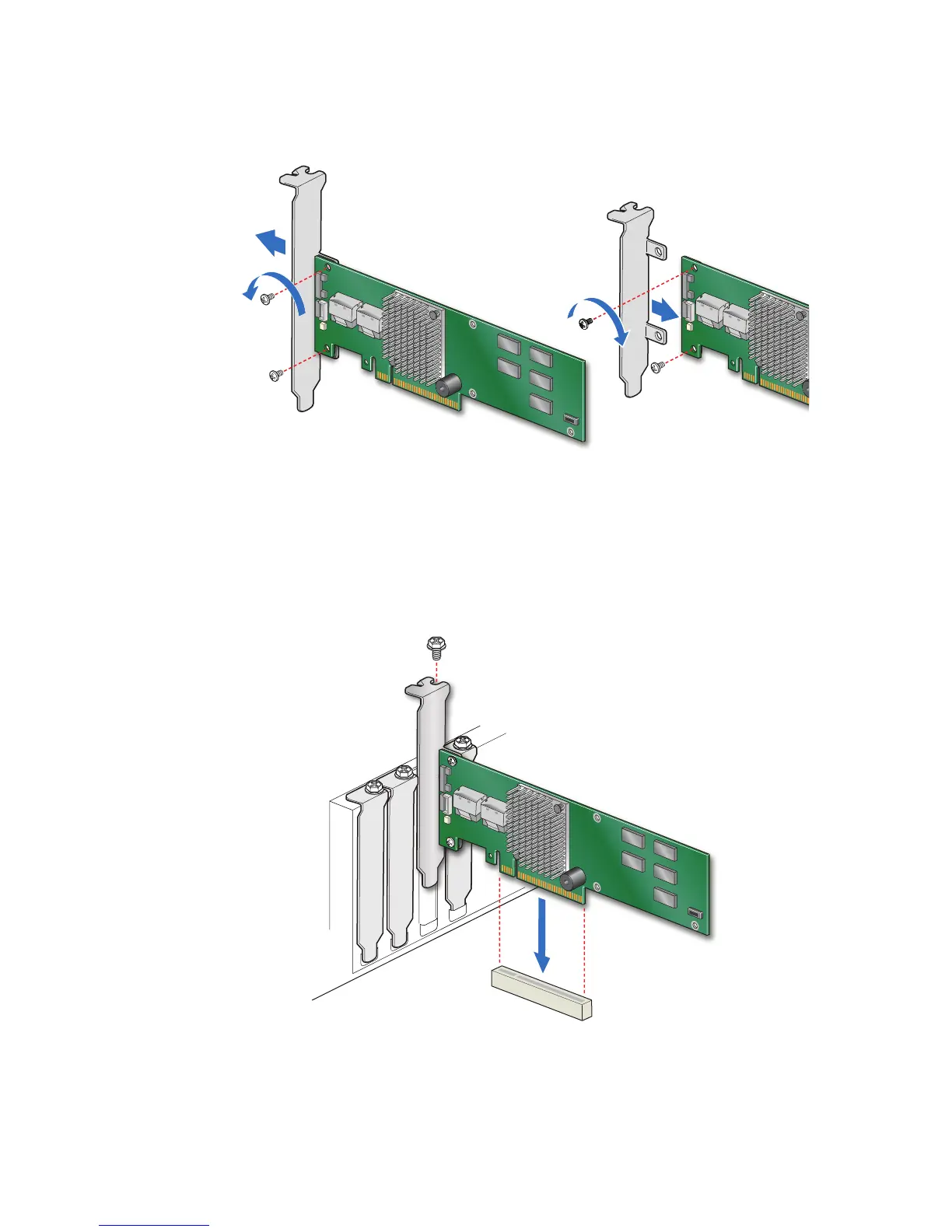

Figure 1. Changing the Bracket
4. Install the RAID controller into an available server system x8 or x16 PCI-Express*
slot (see
Figure 2). To locate an appropriate slot and for instructions on installing an
add-in card, see your server system documentation.
Figure 2. Installing the Intel
®
RAID Controller RS2BL080
C
PCI Express* Slot (3.3 V)
AF003196
