Intel® Server S1200SP Family Configuration Guide
15

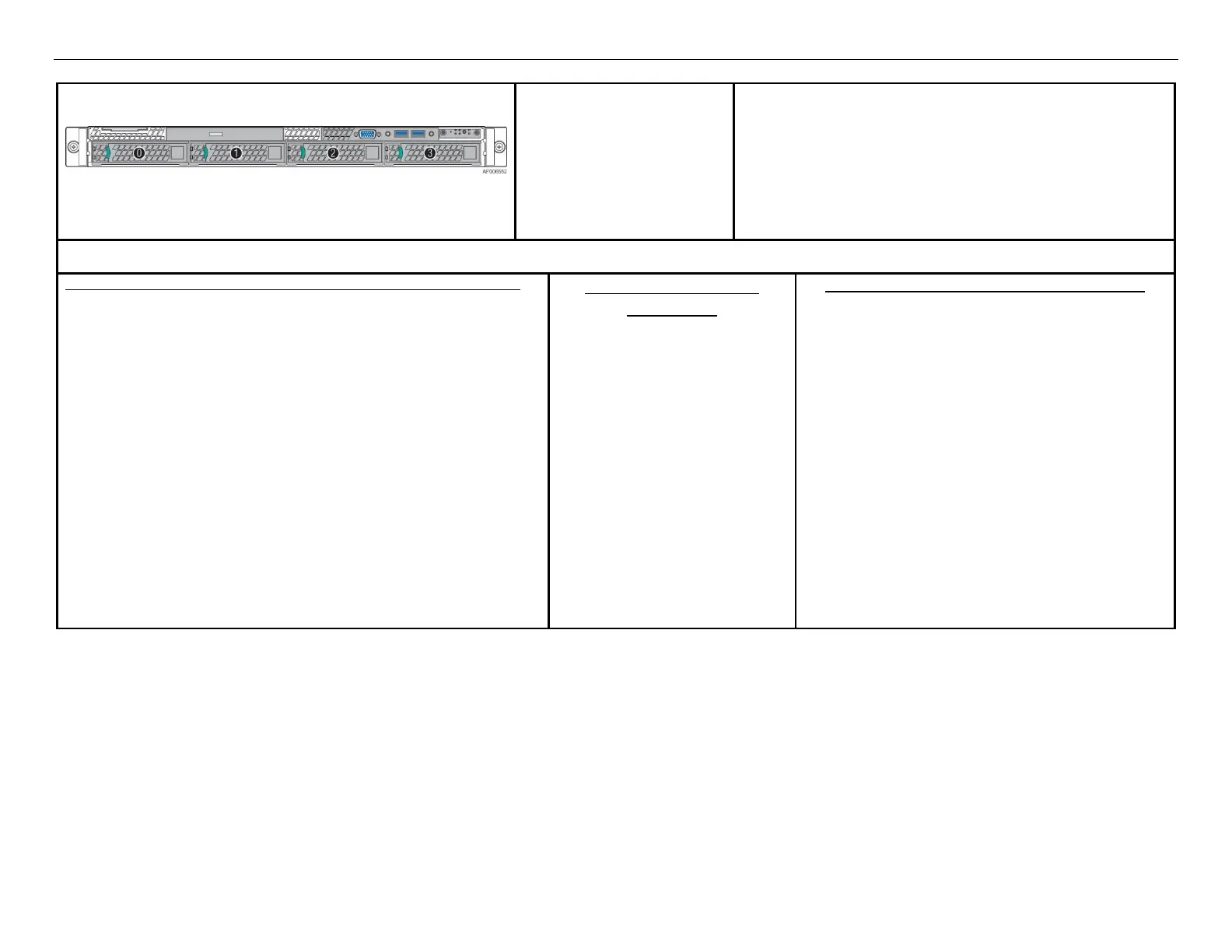

Intel Product Code (iPC):
R1304SPOSHBN
1U – 4 x 3.5” Hot Swap Drives, one 350w fixed power
Order Code Information:
MM# - 944471
UPC – 00735858306492
EAN – 5032037079952
MOQ – 1
Product Type: L6 Integrated System
Chassis Form Factor: 1U rack mount
Chassis dimensions: L= 535mm, W= 428m, H= 43.5mm
Outer Box Dimensions: L= 716mm, W= 576mm, H= 195mm
Packaged Gross Weight: 11.6 Kgs, 25.6 Lbs
Un-packaged Net Weight: 7.77 Kgs, 17.14 Lbs
Product Definition and Configuration Requirements/Options
Intel product code R1304SPOSHBN includes the following components:
(1) –1U Chassis
(1) – Intel® Server Board S1200SPO –iPC BBS1200SPO
(1) – Riser card assembly – iPN H87808-XXX
(1) – 350W fixed power supply – iPN E86365-XXX
(1) – 3.5” Hot-swap drive bays with drive carriers and drive blanks. Includes
(1) 12 Gb SAS backplane – iPC FR1304S3HSBP2
(4) 3.5” hot swap drive trays – iPC FXX35HSCAR
(3) – System fans – iPN G63402-00x
(1) – Heatsink – iPN E49069- 00X
(1) – Standard control panel assembly
(1) – Front I/O Panel assembly (1 x VGA and 2 x USB) iPN - H91347-XXX
(1) – SATA Optical drive bay with filler panel – (optical drive sold separately)
(2) – Chassis handle (1 set) installed – iPN H19171-00x
(1) – Quick Reference Label, Attention Document
Cables: Front Panel cable, USB 3.0 cable, Power cables, SATA cables, SATA
to miniSAS HD cables.
Required Items – Sold
Separately:
• Rack Mount Kit
• 1 Intel processor (choose one)
o Intel® Xeon® Processor
E3-1200 v5 product
family
o Intel® Core® processor i3
product family
• DDR4 memory (ECC UDIMM)
• Power Cord(s)
Optional Intel Accessories – Sold Separately
• Intel® 12G SAS RAID module + RMFBU
• SAS Data cable – Depending on the location of the
SAS Data controller, a new data cable may be
necessary. See Section 4.3 for more information.
• Intel® I/O Module
See Chapter 5 for all available accessory options.
