Intel® Server S1200SP Family Configuration Guide
19

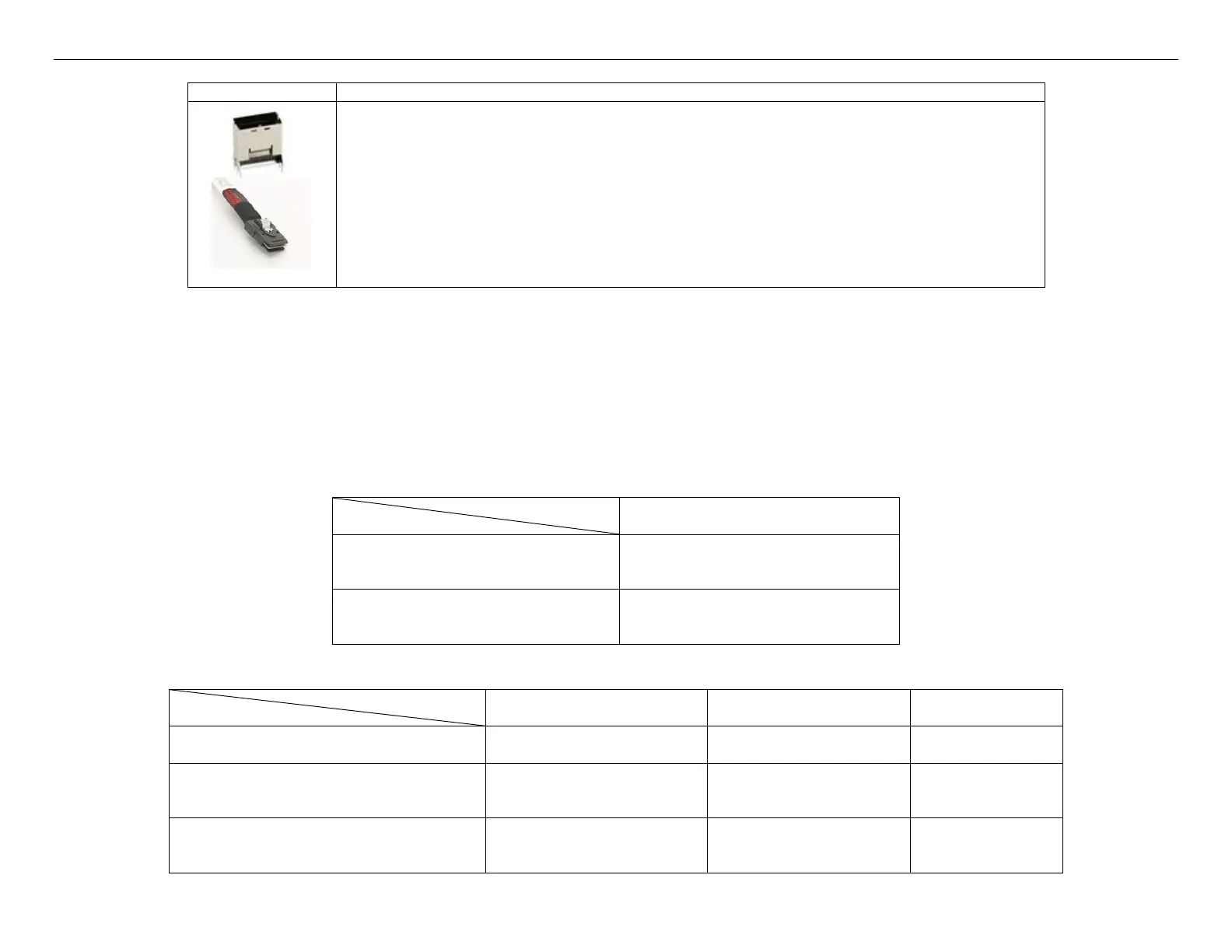

Multiport MiniSAS Connector
SFF-8087
Support for up to 6 Gb/Sec SAS / SATA devices
Where used:
• 6Gb/sec 8x3.5” Hot-Swap Backplane (iPC FUP8X35HSDK, FUP8X35HSBP)
• All 6 Gb/sec SAS RAID Controllers
• All 6 Gb/sec SAS Expander Cards
When connecting a 6Gb/sec SAS Controller or SAS Expander to a 12 Gb/sec capable hot swap backplane, the data cables used will need a SFF-
8643 connector on one end of the cable and a SFF-8087 connector on the other. See Table 2. Storage Data Cable Kit Description and Order
Information for appropriate cable kits.
4.2 Intel® Server Chassis P4000XXSFDR SAS / SATA Cable Guide
The cables included in the Intel® Server Chassis P4000XXSFDR (iPN G14960-001 for 600mm and G14959-001 for 450mm) can support the
connection from onboard SATA ports to the 4x3.5” fixed drives (default in P4000XXSFDR), or from onboard SATA ports to the 4x3.5” 6Gb/s
backplane (iPC FUP4X35HSDK, FUP4X35HSBP).
Default in chassis
G14960-001(600mm)
G14959-001(450mm)
4x3.5” 6Gb/s backplane
iPC FUP4X35HSDK, FUP4X35HSBP
Default in chassis
G14960-001(600mm)
G14959-001(450mm)
The server chassis P4000XXSFDR also supports 8x3.5” 6Gb/s hot-swappable drives, or 4x3.5”/8x3.5” 12Gb/s hot-swappable drives. The cables
needed to be ordered separately are listed in the table.
8x3.5” 6Gb/s backplane
iPC FUP8X35HSDK, FUP8X35HSBP
(2) AXXE3PED8DCBL, includes:
G14989-003(480mm)
(2) AXXE38DRVCBL, includes:
G14989-003(480mm)
(1) AXXCBL570HDMS
(1) AXXCBL340HDMS
4x3.5” 12Gb/s backplane
iPC FUP4X35S3HSDK, FUP4X35S3HSBP
(1) AXXE3RACK8DCBL, includes:
H66180-002(270mm)
H66179-002(530mm)
8x3.5” 12Gb/s (Two 4x3.5” 12Gb/s backplanes)
iPC FUP4X35S3HSDK, FUP4X35S3HSBP
(1) AXXE3RACK8DCBL, includes:
H66180-002(270mm)
H66179-002(530mm)
(1) AXXCBL570HDMS
(1) AXXCBL340HDMS
(1) AXXCBL380HDHD
(1) AXXCBL650HDHD
