4.3 Intel® Server System R1000SPO SAS / SATA Cable Guide
The following table lists the cables need to be ordered separately, except the cables connecting to onboard SATA.
From
To
Onboard SATA
6G RAID module
12G RAID module
R1304SPOSHBN
R1304SPOSHOR
FR130412GCBL H66178-002(550mm)
Included in the system
(1) AXXCBL730HDMS
(1) AXXCBL730HDHD
R1208SPOSHOR
(1) AXXE3RACK8DCBL, includes:
H66180-002(270mm)
H66179-003(530mm)
Included in the system
(1) AXXCBL570HDMS
(2) AXXCBL340HDMS
(1) AXXCBL380HDHD
(2) AXXCBL650HDHD

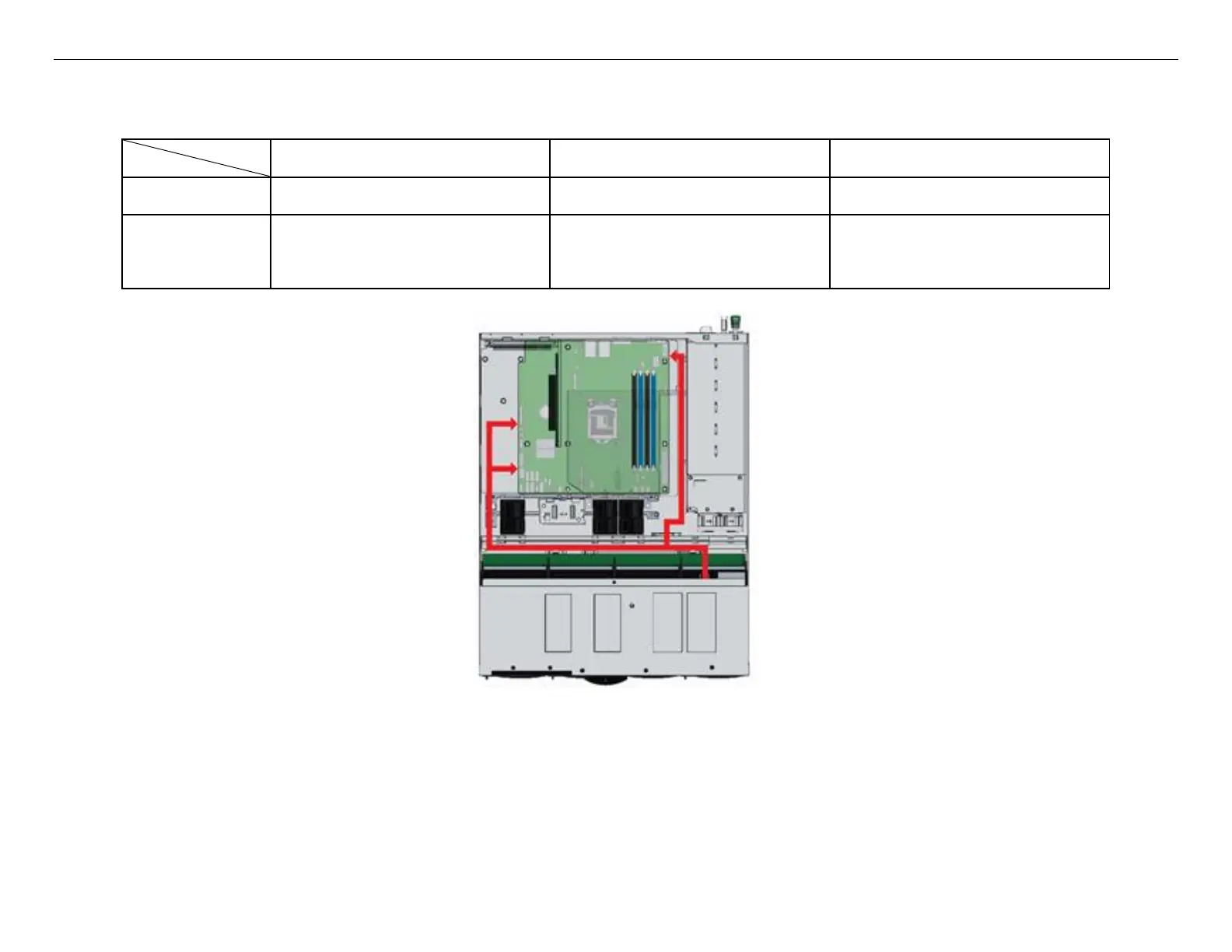

Figure 5. Intel® Server System R1000SPO Cable Routing
