Intel® Server S1200SP Family Configuration Guide
18
4 SAS / SATA Data Cable Guide
Following SAS / SATA data cables may need to be ordered separately to match the desired system configuration.

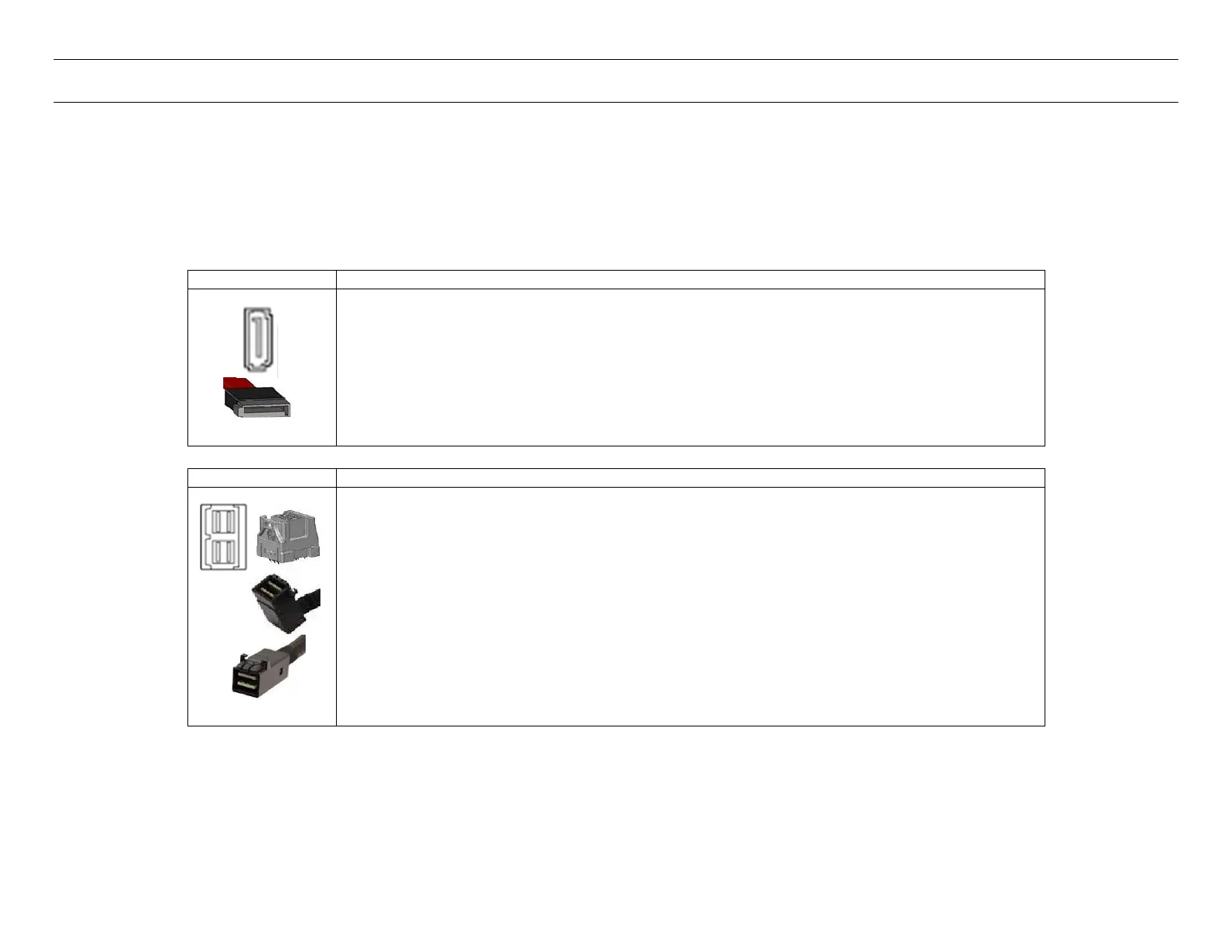

4.1 SAS / SATA Data Cable Connector Types
There are three storage interface connector types used within this product family:
Single Port SATA Connector
Description
7-pin Single Port SATA
Support for up to 6 GB/sec SATA devices
Where used:
• On the server board
• 6Gb/sec 4x3.5” Hot-Swap Backplane (iPC FUP4X35HSDK, FUP4X35HSBP)
• SATA Optical Drive – CD/DVD
• SATA DOM
Multiport MiniSAS HD Connectors
Description
SFF-8643
Support for up to 12 Gb/Sec SAS and 6 Gb/sec SATA devices
Where used:
• 12Gb/sec 4x3.5” Hot-Swap Backplane (iPC FUP4X35S3HSDK, FUP4X35S3HSBP)
• All 12 Gb/sec SAS RAID Controllers
• All 12 Gb/sec SAS Expander Cards
