Rail Kit Installation Instructions
2 Basic Rail Kit Install Guide for Intel® Server Chassis
Kit Content List (AXXBASRAIL13)
Each Rack Mount Kit contains the following:
Note: The two included rail assemblies are NOT interchangeable. Each is installed into the rack
by its orientation (right or left) when standing in front of the rack. The right rail assembly
is identified with a BLUE (RH) sticker and the left rail assembly is identified with a
GREEN (LH) sticker.
Note: This kit includes two sets of 8-32x1/2” screws. One set of eight has a larger screw head
size than the second set of eight. Use the set of 8-32x1/2” screws that best fits the rack in
which the rail kit is being installed.
• Outer Rail Slide Assembly (2). See letter “A” in Figure 1.
• Inner Rail Slide (2). See letter “B” in Figure 1.
• Rail Safety Stop (one each on inner slides). See letter “C” in Figure 1.
• Outer Slide Rail Screws (8 #8-32 x 1/2). See letter “D” in Figure 1.
• Inner Slide Rail Screw (8 #6-32 x 1/4). See letter “D” in Figure 1.
• Rack Screws (2 #8-32 x 3/4). See letter “D” in Figure 1.

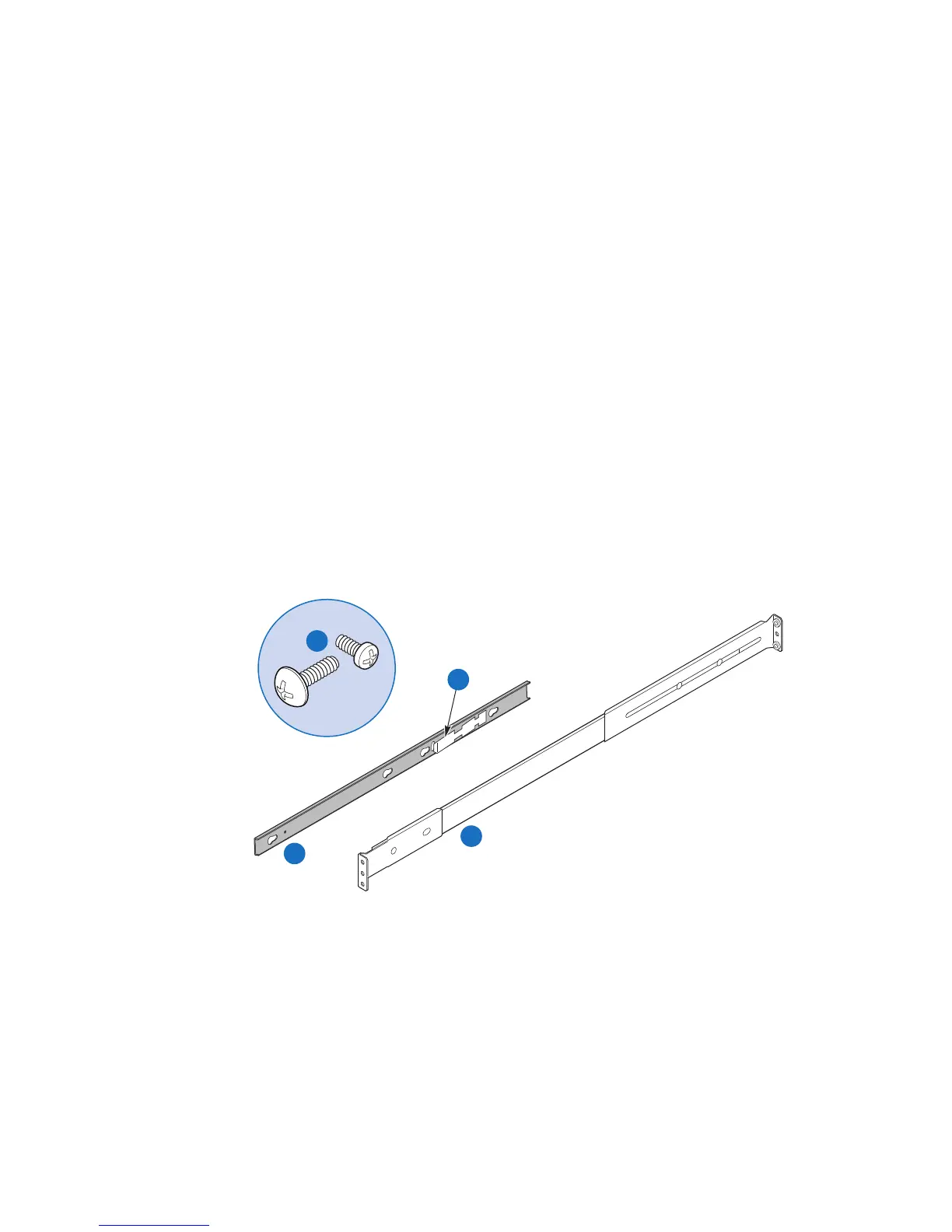

Figure 1. Rail Kit Components
AF000626
B
A
Adjustable Outer Slide
C
Inner Slide with Safety Stop
D
