Rail Kit Installation Instructions
Basic Rail Kit Install Guide for Intel® Server Chassis 7
3. Depress the two safety locks (one on each side). See letter “A” in Figure 6.
4. Slide the server chassis all the way into the rack. See letter “B” in Figure 6.
5. Use the rack screws (#8-32 x 3/4) to secure the chassis and rack handles into the rack.
See letter “C” in Figure 6.

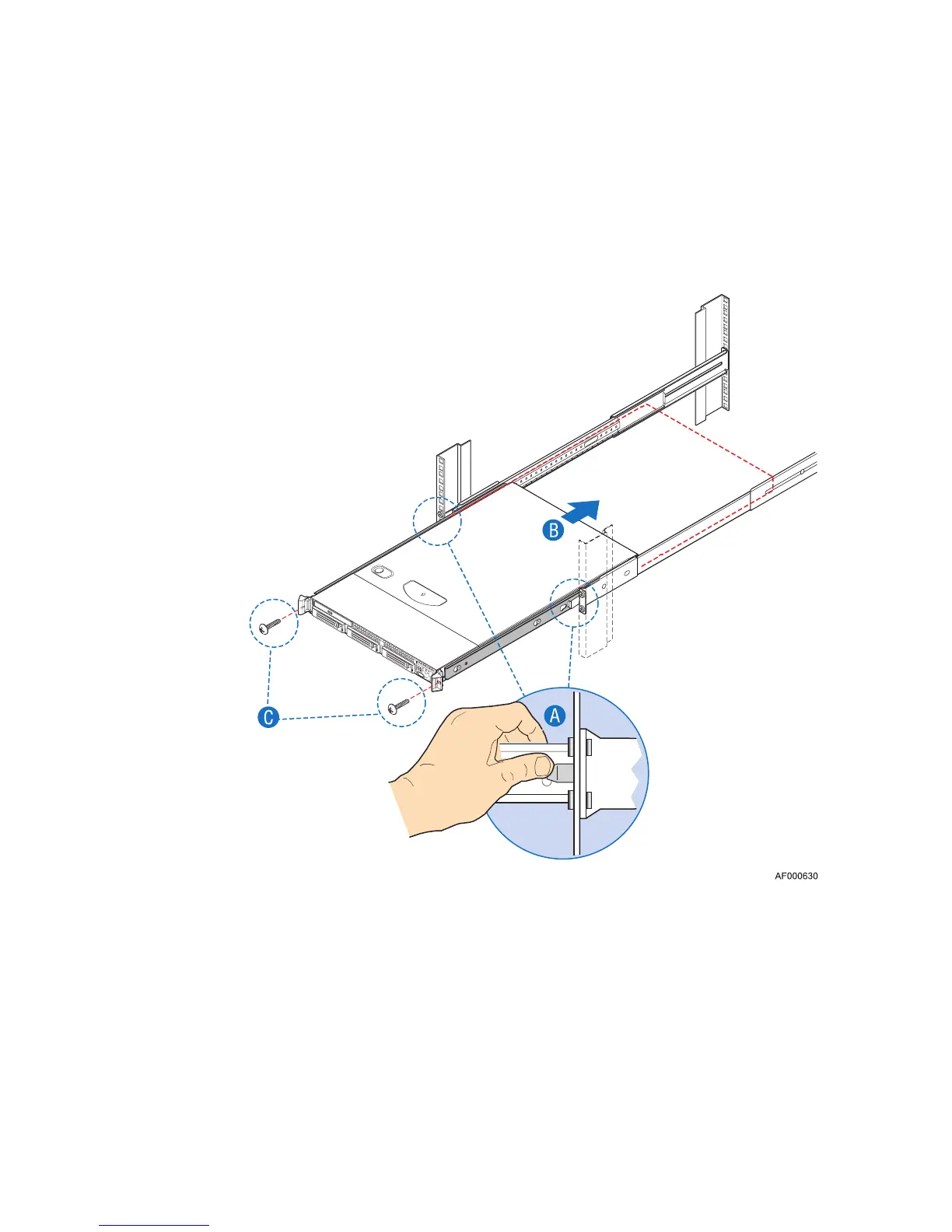

Figure 6. Installing the Server Chassis into the Rack
